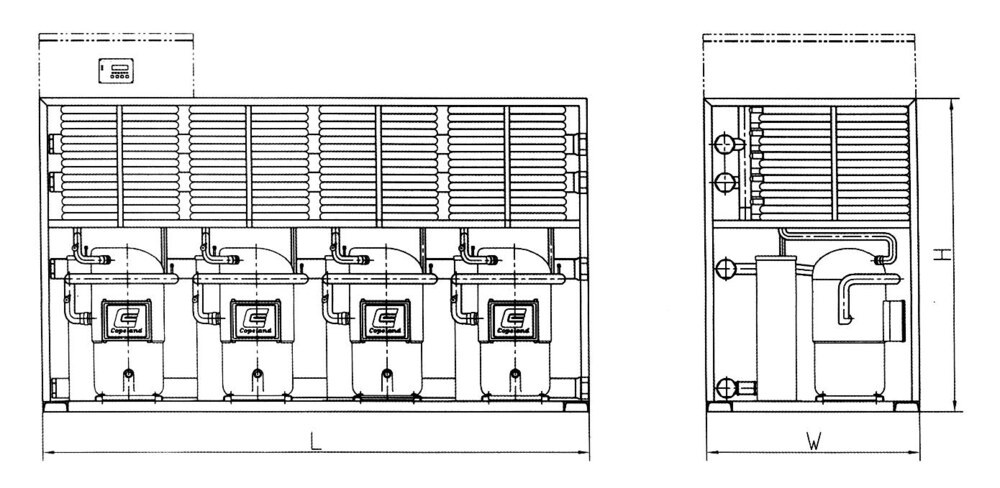

YTLS-192IV Navy Water Chiller Module

YTLS navy water chiller module design make the installation convenient and flexible, developing the max efficiency, improving the reliability and accessible for maintenance, single water chiller module may be combined together to provide a large system, which is easy to modify the type of for special service. Refrigerant circuit of single water chiller module is todally enclosed and filled with R22 at factory and need no charge on site. Chilled/heated water piping and cooling sea water piping can be collected individually, improving the connection speed and is convenient for customer installation.

Each water chiller module includes hermitic scroll compressor, 4-way reverse valve , double way expansion valve, high efficient coaxial condenser, stainless steel plate type heat exchanger, high& low pressure switch, water flow controller and water pan etc. Each assembly is assembled together compactly and make volume small.
