YTLS-300 Navy Water Chiller Module

Request a Quote Not what you need, please send your RFQs via Email.

Details

Description:

YTLS navy water chiller module design make the installation convenient and flexible, developing the max efficiency, improving the reliability and accessible for maintenance, single water chiller module may be combined together to provide a large system, which is easy to modify the type of for special service. Refrigerant circuit of single water chiller module is todally enclosed and filled with R22 at factory and need no charge on site. Chilled/heated water piping and cooling sea water piping can be collected individually, improving the connection speed and is convenient for customer installation.

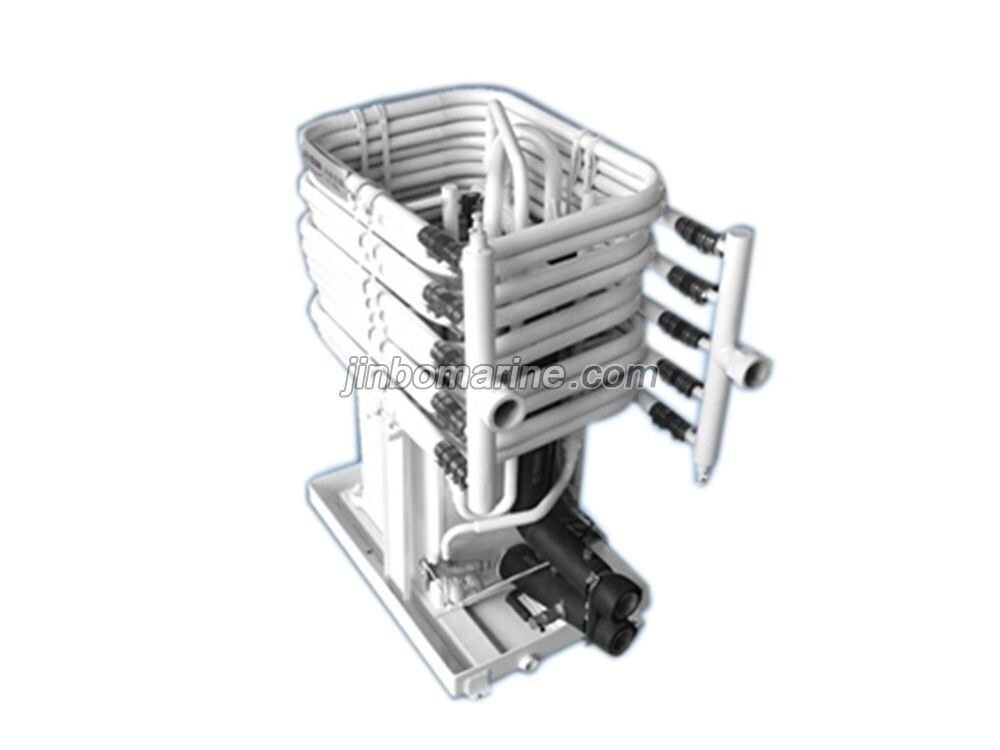

Each water chiller module includes hermitic scroll compressor, 4-way reverse valve , double way expansion valve, high efficient coaxial condenser, stainless steel plate type heat exchanger, high& low pressure switch, water flow controller and water pan etc. Each assembly is assembled together compactly and make volume small.

Technical Data:

YTLS-300(IV) YTLS-360(IV) YTLS-600(IV) YTLS-720(IV) YTLS-720(IV) YTLS-864(IV)
87.5 105 175 210 210 252
300000 360000 600000 720000 720000 864000
96.5 115.7 192.5 231 231 277.2
330000 395000 650000 790000 790000 948000
R22(R134a,R404A.R407C)
AC380V 50Hz 3p/AC440V 60HZ 3p
18.5/27 25/35 36.5/51.5 47.5/66.5 43.8/61.8 57/79.8
36.5/53.8 49.2/69 71.8/99.8 93.2/120.2 90.6/111.2 117.6/142
15 18 30 36 36 44.5
Cooling 12/7℃, heating40/45℃
22.5 26.7 45 55 55 66
Cooling≤32℃, heating≥5℃

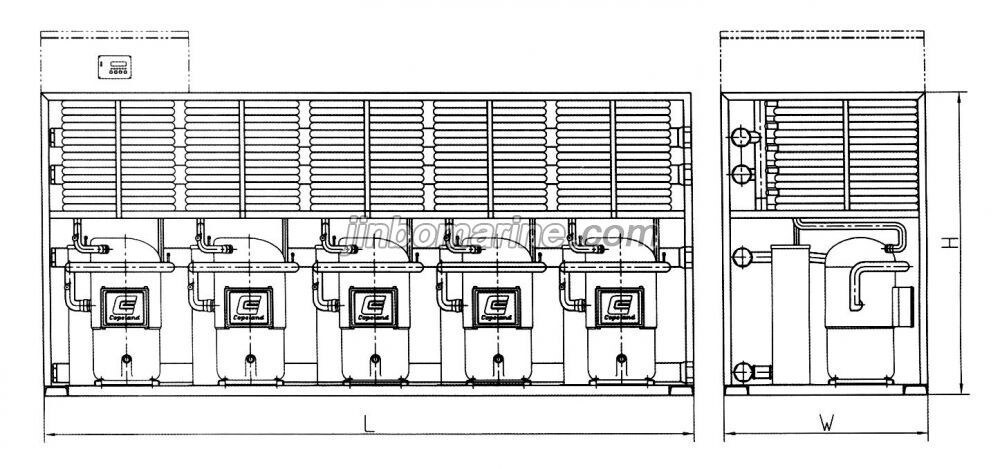

1750 2200 2200 2250 2700 2700
780 780 880 880 950 950
820 820 980 1050 1050 1050
580 750 1010 1230 1450 1550
