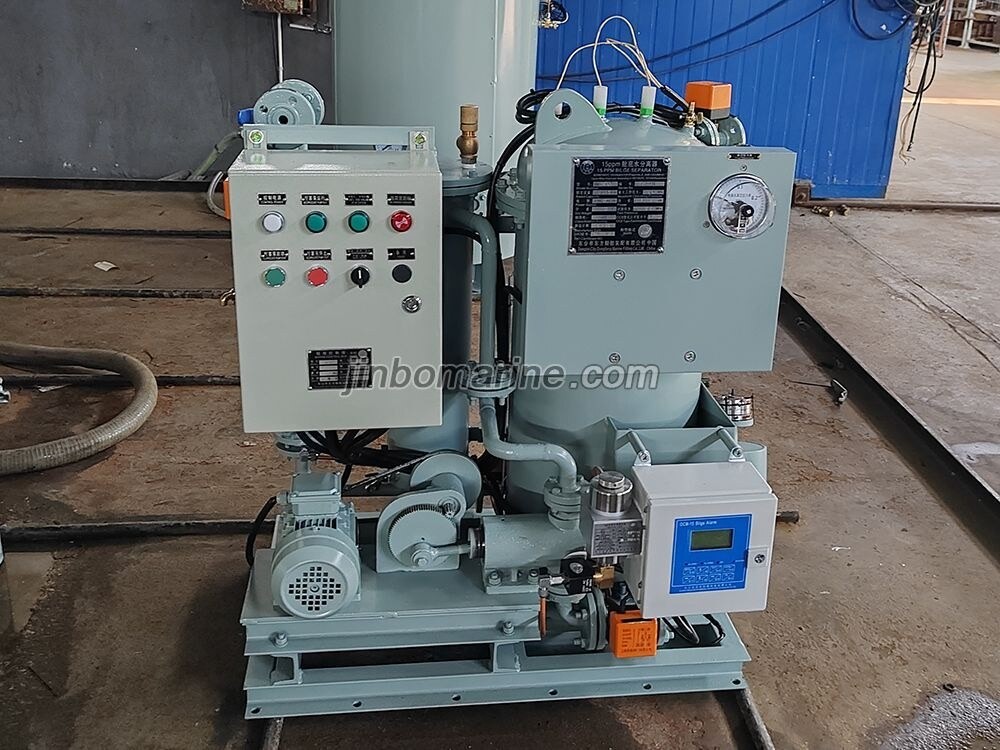

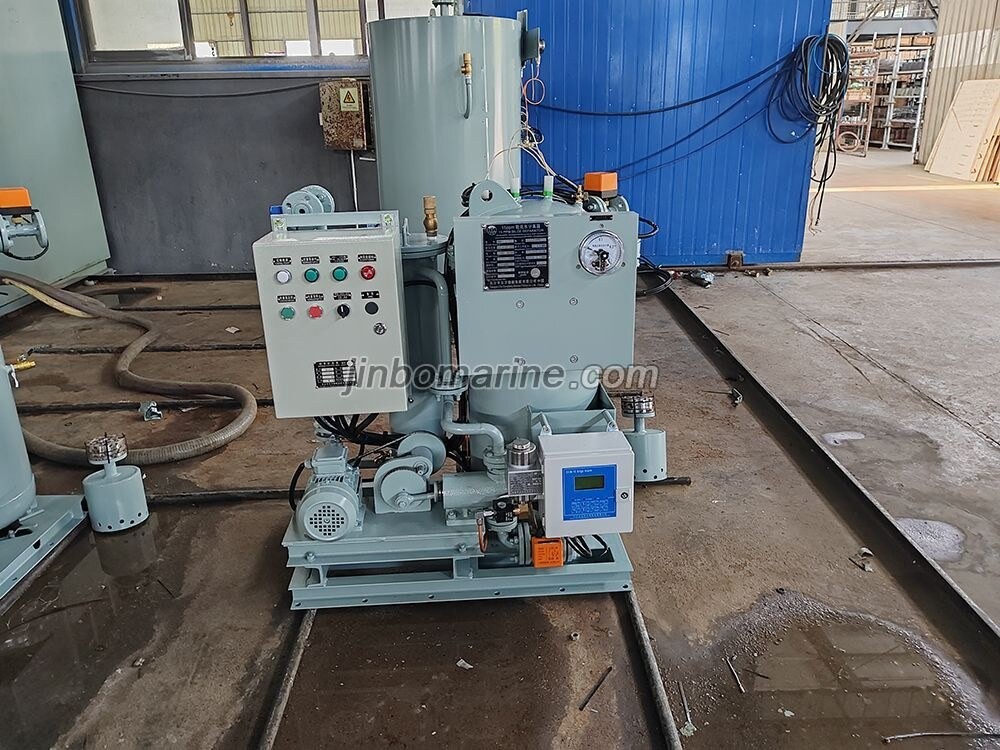

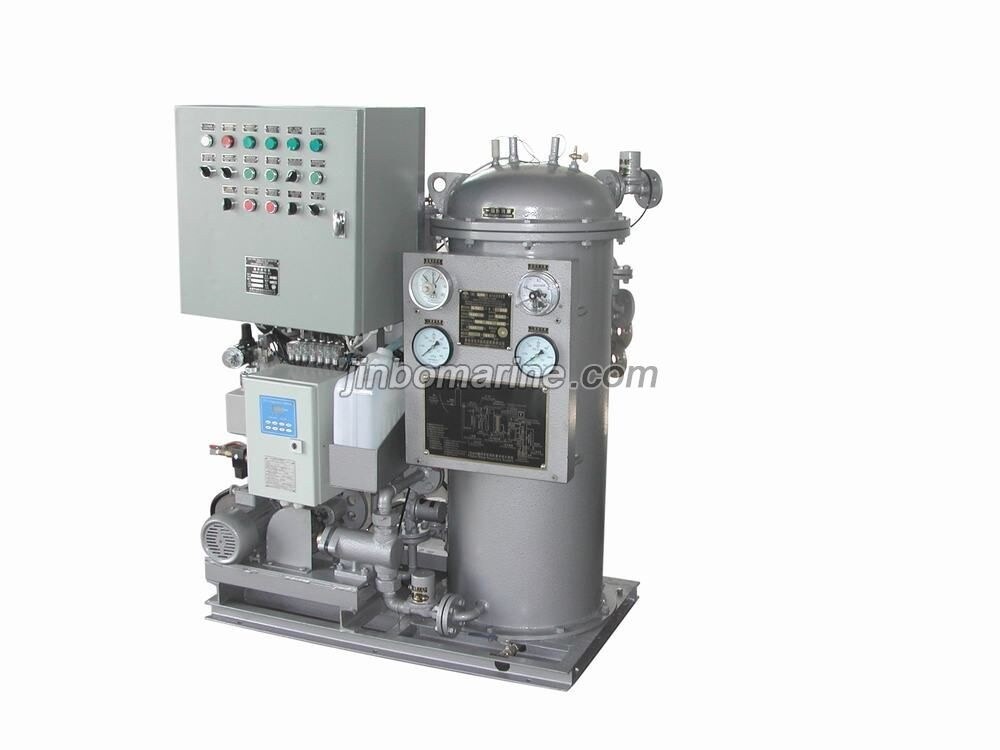

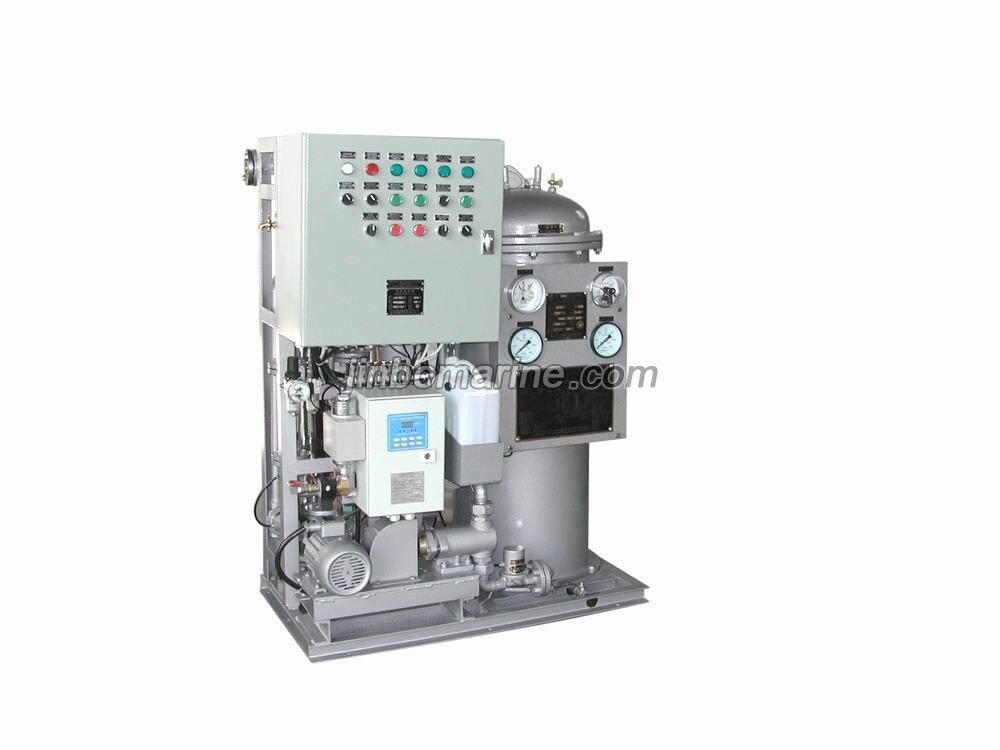

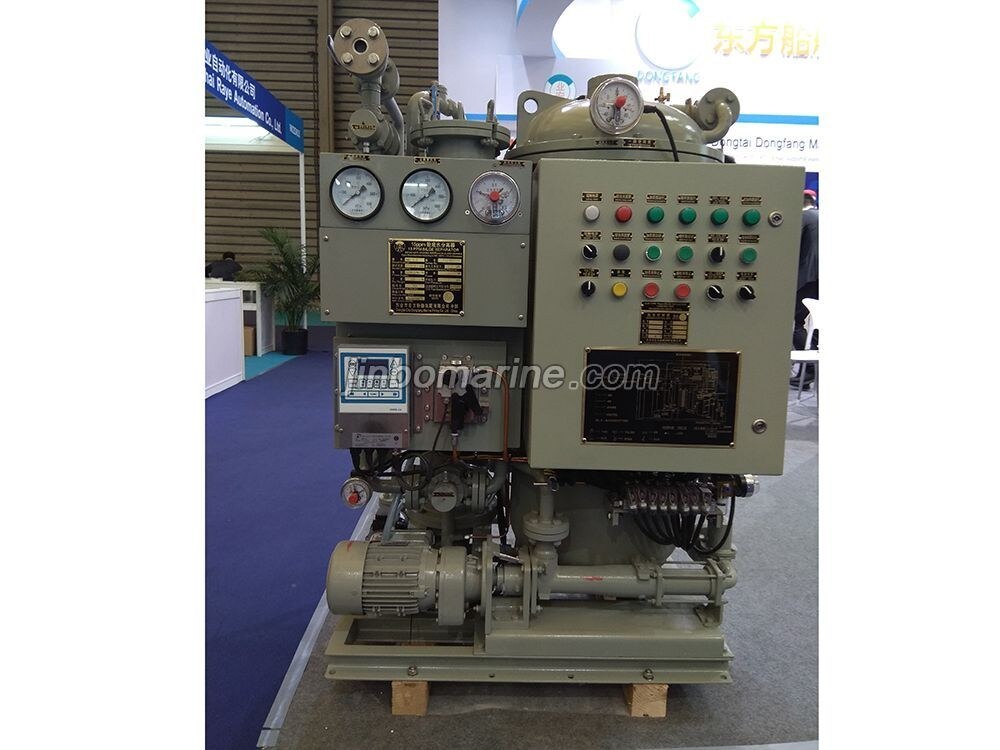

YWC-0.25 Vessel 15ppm Oily Water Separator
- Category:Marine Oil Water Seperator
- Standards:International maritime IMO.MEPC.107(49) standard
- Certificate:CCS,BV,GL，ABS, LR etc.
- Material:Carbon Steel
- Packing Details:Standard Packaging
- Supply Ability:10 sets/month
- Delivery Time:15-20days
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[ ]
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Vessel 15ppm Oily Water Separator:
This device can be used to treat oily bilge water in order to make it reach the requirements of IMO.MEPC.107 (49) resolution, which is also called 15ppm bilge separator.
Principle:
The device adopts the combination of 1st stage - cone plate gravity and coalesce separation, 2nd stage - fiber filter and 3rd stage - membrane permeation in order to make the treated bilge water to reach the requirements of discharge standard of the resolution of IMO MEPC.107 (49).
Technical Data:
| Rated capacity | 0.25 m3 per hour | |
| Power of the electric heater | 1kw | |
| Power of the electric motor | 0.37kw | |
| Outline Dimension(LxWxH) | 1000x600x1250mm | |
| Base | 5# | |
| Weight | Dry Weight | 300 |
| Wet Weight | 450 | |
| Applicable Vessel | <1000DWT | |
| Optional electrical system |
AC 380V/50Hz/3
phase,AC 415V/50Hz/3 phase, AC 440/60Hz/3 phase,AC 480V/60HZ/33 phase. |
|
| Oil content of the discharged water | Not more than 15ppm | |
| Suction head | Not more than 6m-H2O | |
| Pressure of the discharged water | 5-10m-H2O | |
