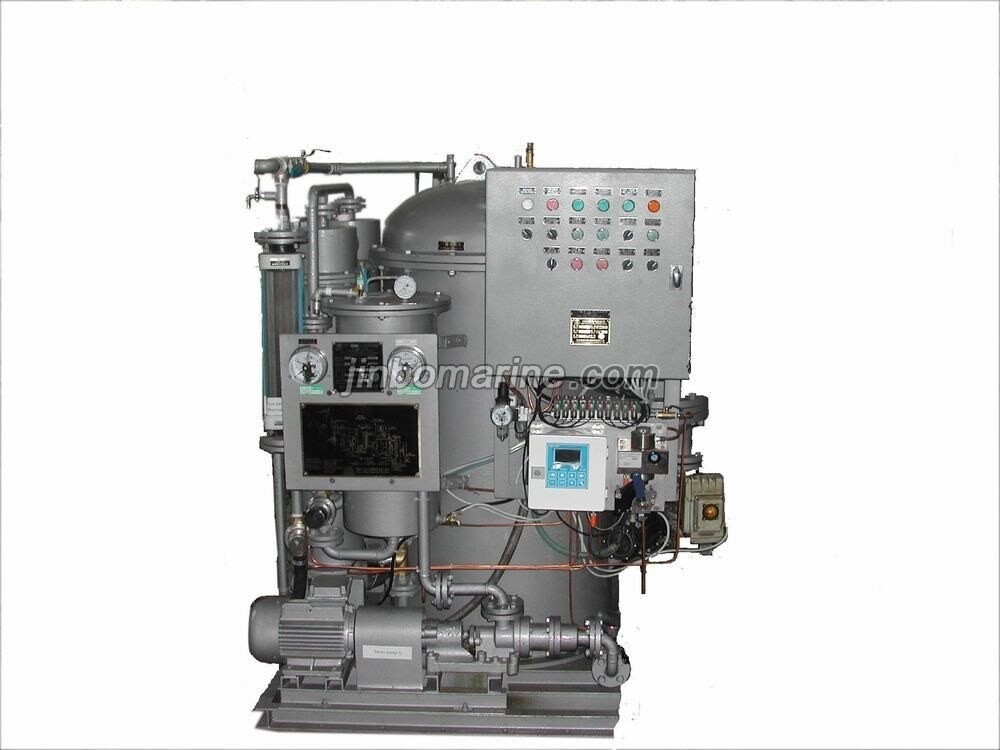

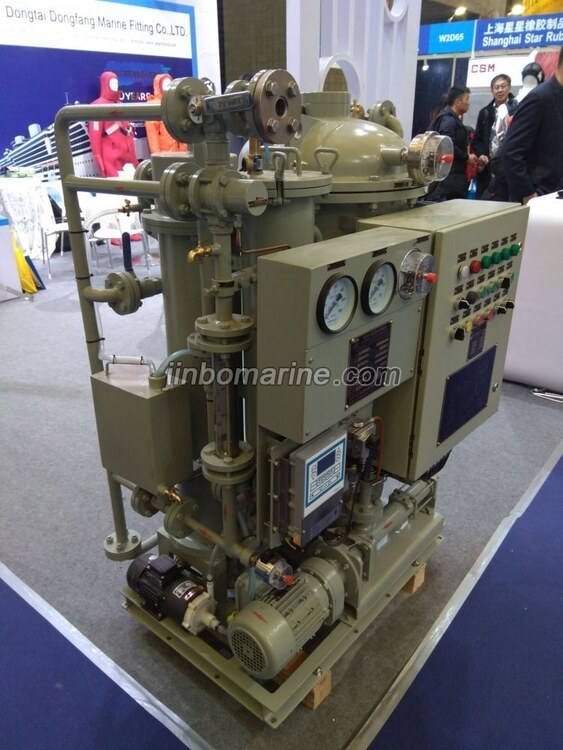

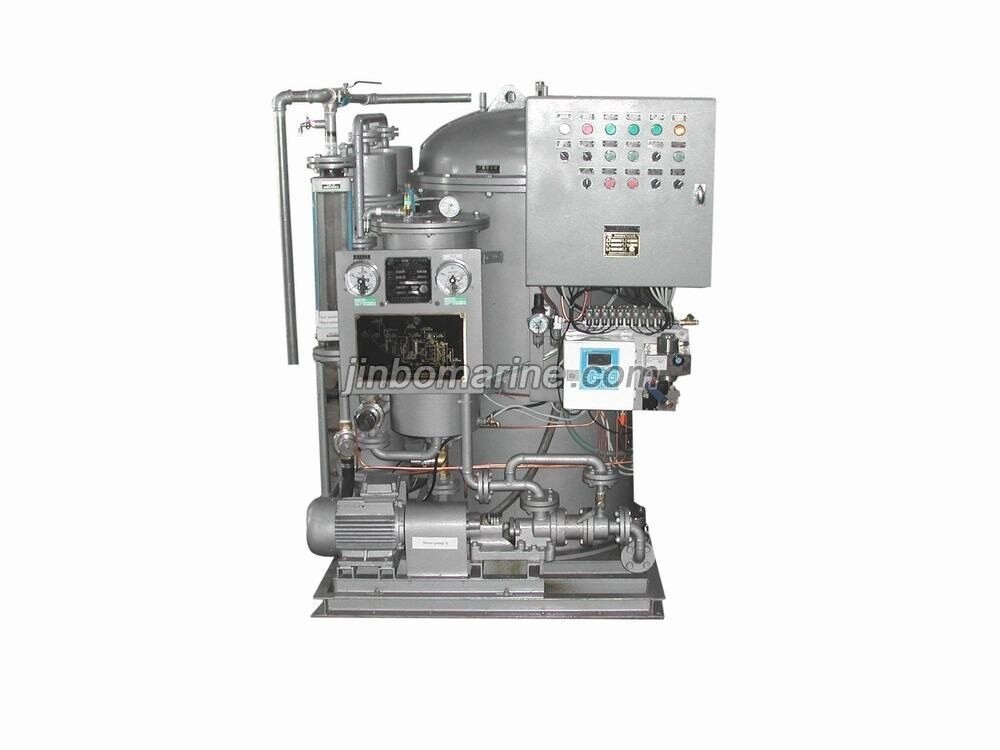

YWC-1.00 Oil Water Separating treater
- Category:Marine Oil Water Seperator
- Standards:International maritime IMO.MEPC.107(49) standard.
- Certificate:BV,CCS, GL,ABS, DNV
- Material:Steel
- Packing Details:Standard Export Packaging
- Supply Ability:10 sets/month
- Delivery Time:20 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[ ]
Request a Quote
Not what you need, please send your RFQs via Email.
Details
YWC-1.00 Oil Water Separating treater:
This Marine Bilge Water Separator can treat in bilge water effectively,make the oil content in effluent water≤15ppm,satisfy with the requirements of IMO MEPC.107(49).
Working Principle:
The device adopts the combination of 1st stage, cone plate gravity and coalesce separation
2nd stage, fiber filter and 3rd stage, membrane permeation in order to make the treated bilge water to reach the requirements of discharge standard of the resolution of IMO MEPC.107 (49).
Technical Data:
| Rated capacity | 1.00 m3 per hour | |
| Power of the electric heater | 6kw | |
| Power of the electric motor | 0.75kw | |
| Outline Dimension(LxWxH) | 1050x1000x1620 | |
| Base | 6# | |
| Weight | Dry Weight | 800 |
| Wet Weight | 1200 | |
| Applicable Vessel | 5-10KDWT | |
| Optional electrical system | AC 380V/50Hz/3 phase,AC 415V/50Hz/3 phase, | |
| AC 440/60Hz/3 phase,AC 480V/60HZ/33 phase. | ||
| Oil content of the discharged water | Not more than 15ppm | |
| Suction head | Not more than 6m-H2O | |
| Pressure of the discharged water | 5-10m-H2O | |
The Germany shipowner visit our factory:
8 sets export to Germany shipyards.
