| 2-4 inch gasoline water pump | |||||
| Set | Model | 50KB-2G | 80KB-3G | 100KB-4Ga | 100KB-4Gb |
| Name | Gasoline self-priming water pump | ||||
| Inlet/Outlet diameter | 50mm(2") | 80mm(3") | 100mm(4") | 100mm(4") | |
| Cont. Capacity(m3/h) | 33 | 60 | 80 | 80 | |
| Cont. Head lift(m) | 30 | 30 | 25 | 25 | |
| Max.Suction head(m) | 8 | 8 | 8 | 8 | |
| Engine | Engine model | 170F | 170F | 170F | 177F |
| Engine type | Single cylinder,4-stroke,air cooled gasoline engine | ||||
| Displacement(CC) | 208 | 208 | 208 | 270 | |
| Max.output power(HP) | 7.5 | 7.5 | 7.5 | 10 | |
| Rated spee(RPM) | 3600 | 3600 | 3600 | 3600 | |
| Fuel consumption ratio(g/kw.h) | <390 | <390 | <390 | <390 | |
| starting method | Recoil start | ||||
| Fuel tank capacity(L) | 3.6 | 3.6 | 6 | 6 | |
| Options | Electric starter | N/A | N/A | Available | Available |
| Oil annunciator | N/A | N/A | Available | Available | |
| Pack | Packing size(mm) | 480x390x400 | 520x395x450 | 615x445x540 | 615x445x540 |
| Net weight(Kgs) | 24 | 27 | 45 | 47 | |
| Gross weight(Kgs) | 26 | 29 | 47 | 49 | |
| 20FT Qty | 365 | 335 | 192 | 192 | |
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Gasoline engine driven water pump

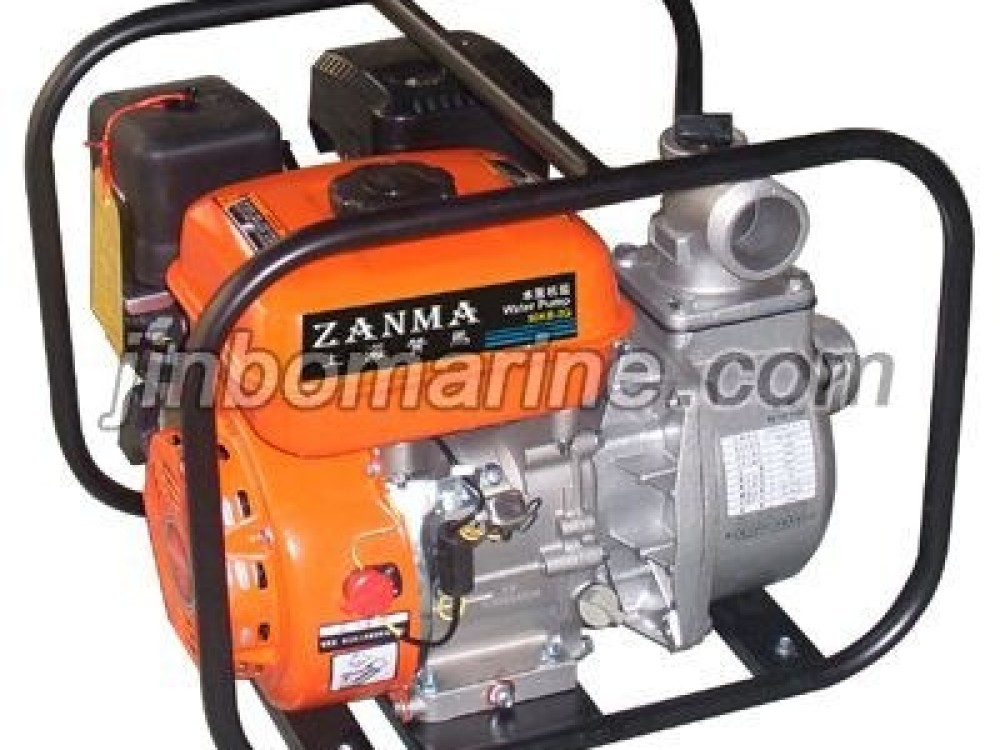

2-4 inch Gasoline self-priming Water Pump
2-4 inch Gasoline self-priming Water Pump Parameter 2-4 inch gasoline water pump Set Model 50KB-2G 80KB-...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Gasoline engine driven water pump
Standard
GB
Weight / Size
Head lift(m) 30 30 25 25 Max.Suction head(m) 8 8 8 8 Engine Engine model...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Gasoline engine driven water pump
Model / SKU
2-4-inch-Gasoline-self-priming-Water-Pump
Standard
GB
Weight / Size
Head lift(m) 30 30 25 25 Max.Suction head(m) 8 8 8 8 Engine Engine model 170F 170F 170F 177F Engine type Single cylinder,4-stroke,air cooled gasoline engine Displacement(CC) 208 208 208 270 Max.output power(HP) 7.5 7.5 7.5 10 Rated spee(RPM) 3600 3600 3600 3600 Fuel consumption ratio(g/kw.h) <390 <390 <390 <390 starting method Recoil start Fuel tank capacity(L) 3.6 3.6 6 6 Options Electric starter N/A N/A Available Available Oil annunciator N/A N/A Available Available Pack Packing size(mm) 480x390x400 520x395x450 615x445x540 615x445x540 Net weight(Kgs) 24 27 45 47 Gross weight(Kgs) 26 29 47 49 20FT Qty 365 335 192 192
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
