Marine Windlass

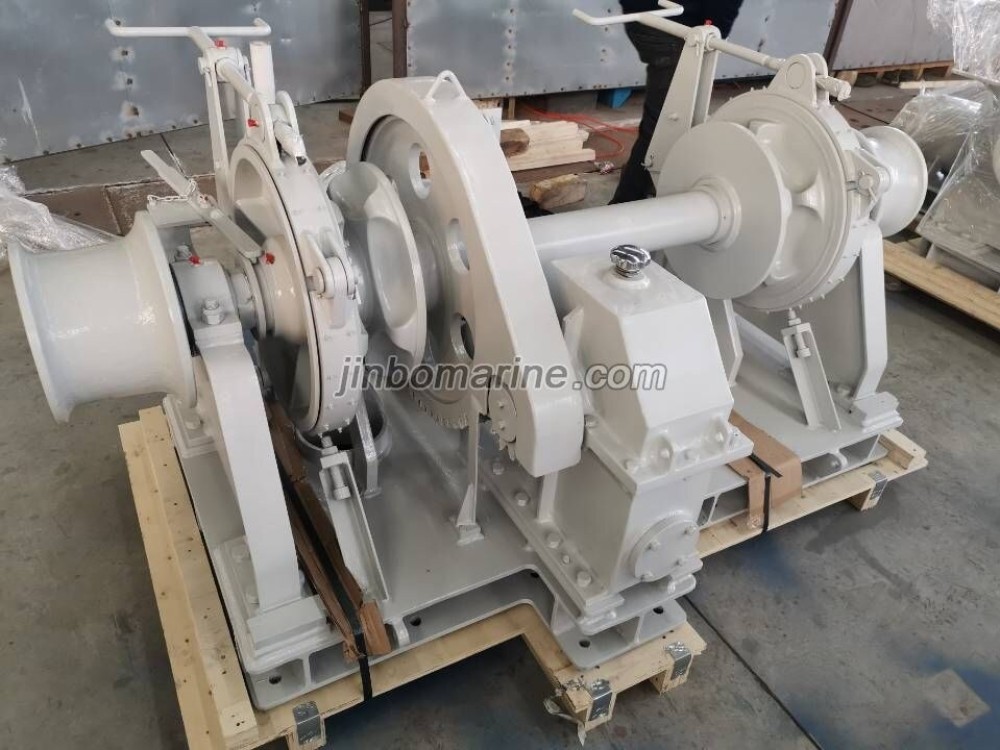

26mm Double Gypsy Electric Anchor Windlass
26mm Double Gypsy Electric Anchor Windlass Main specification: 1 Chain dia.（AM2） φ26 mm 2 Pitch dia.of the chain wheel φ354 mm 3 Rated pull 28.7 kN 4 Ov...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Marine Windlass
Standard
DIN
Material
Cast Steel
Certificate
CCS, BV, ABS, DNV/GL, LR, NK, IRS, RMRS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Marine Windlass
Model / SKU
26mm-Double-Gypsy-Electric-Anchor-Windlass
Standard
DIN
Material
Cast Steel
Certificate
CCS, BV, ABS, DNV/GL, LR, NK, IRS, RMRS
Warranty
12 Months unless specified otherwise
Origin
China
26mm Double Gypsy Electric Anchor Windlass
Main specification:
1 Chain dia.（AM2） φ26 mm
2 Pitch dia.of the chain wheel φ354 mm
3 Rated pull 28.7 kN
4 Overload pull 43.1kN
5 Holding load 175 kN
6 Nominal speed ≥9m/min
7 Max anchor casting depth ≤82.5 m
8 Load of warping end 15 kN
9 Motor JZ2—H33—4/12
Power 8.5/3.5 kW
Speed 1370/390 r/min
Source 400V/ 50Hz
Duty 30/10 min
