Gear Pump

2CY-18 2CY series marine gear pump

It applies to delivery non-corrosive lubricating-oil or equivalent liquid without solid particles and fibres at temperature below 300℃.It applies to hydraulic system, too. Model ...

ISO9001 Supplier Class Certificate Export Supply

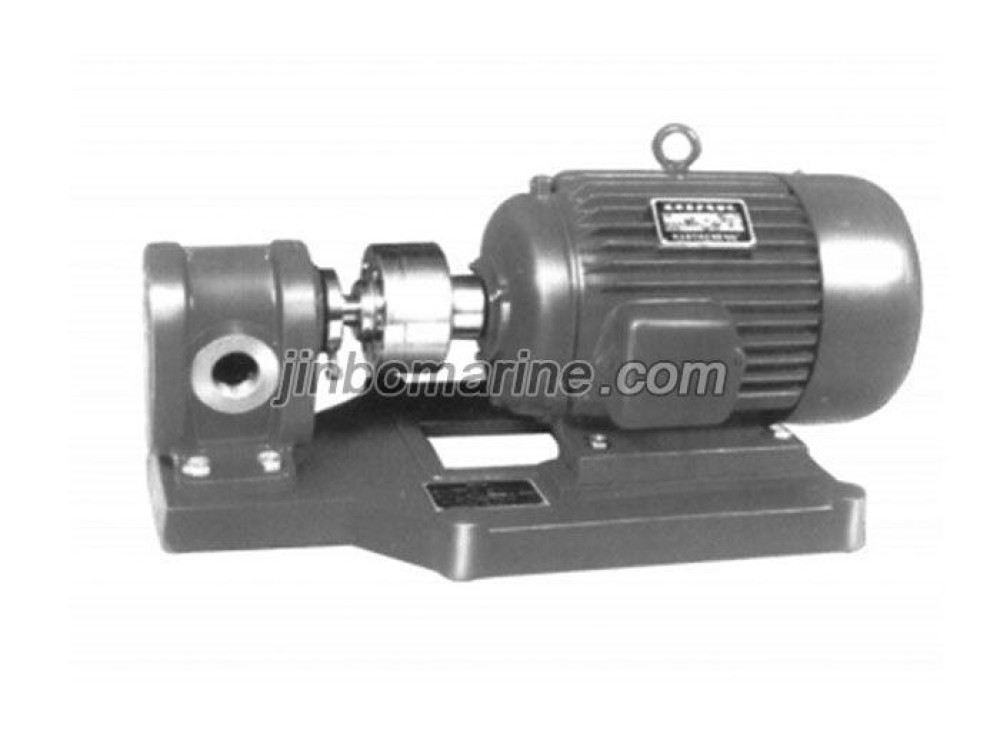

2CY-18 2CY series marine gear pump

Key Highlights

Category
Gear Pump
Standard
EN
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Gear Pump
Model / SKU
2CY-series-gear-pump
Standard
EN
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

China 2CY-18 2CY series marine gear pump:

It applies to delivery non-corrosive lubricating-oil or equivalent liquid without solid particles and fibres at temperature below 300℃.It applies to hydraulic system, too.

Model Capacity
Q 		Exhaust pressure
MPa 		Speed
r/min 		Power
2CY-1.1 1.1 1.45 1400 1.5
2CY-2 2 1.45 1420 2.2
2CY-3.3 3.3 0.33 1400 1.5
2CY-5 5 0.33 1420 2.2
2CY-8 8 0.33 940 2.2
2CY-12 12 0.33 1440 4
2CY-18 18 0.36 970 5.5
2CY-29 29 0.36 1470 11
2CY-38 38 0.28 740 11
2CY-58 58 0.28 980 22
2CY-1.08 1.08 2.5 1420 2.2
2CY-2.1 2.1 2.5 1420 3
2CY-3 3 2.5 1440 4
2CY-4.2 4.2 2.5 1440 5.5
2CY-7.5 7.5 2.5 1440 7.5
2CY-12 12 2.5 1440 15
2CY-21 21 2.5 1440 30
