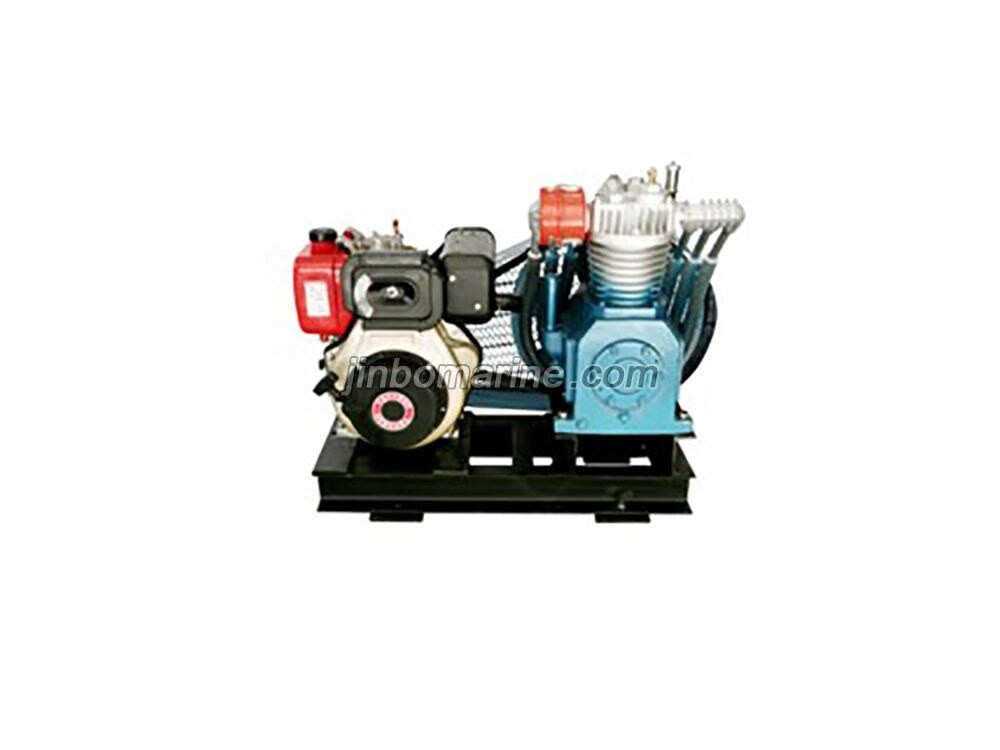

Model: 2ZFC-0.34/30-B Marine Emergency Air Compressor
Type: double row, air cooled, two stage compression piston
Displacement: 0.34 m3 / min (20.4 m3 / h)
The rated pressure: 3.0 MPa
The air compressor host and ZFC - 0.34/30-2 B type Marine air compressor series products. Products with a Marine air-cooled diesel engine, with the hand to pull the centrifugal clutch starting, easy to operate. Products are especially suitable for the ship can reliable operation in emergency situations, is to ensure that the necessary for safe navigation of the ship.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Medium Pressure Air Cooled Marine Air Compressor
2ZFC-0.34/30-B Marine Emergency Air Compressor
Model: 2ZFC-0.34/30-B Marine Emergency Air Compressor Type: double row, air cooled, two stage compression piston Displacement: 0.34 m3 / min (20.4 m3 / h) The rated pressure: 3.0 MPa The air compressor host and ZFC ...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Medium Pressure Air Cooled Marine Air Compressor
Standard
DIN
Weight / Size
With highly efficient, light weight, small volume, low noise, smooth ope...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Medium Pressure Air Cooled Marine Air Compressor
Model / SKU
2ZFC-0-34-30-B-Marine-Emergency-Air-Compressor
Standard
DIN
Weight / Size
With highly efficient, light weight, small volume, low noise, smooth operation Products with manual/automatic stop, start, and unloading relief function.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
China 2ZFC-0.34/30-B Marine Emergency Air Compressor:
Product features
Type has a single row, double row, V, W, the secondary compression piston.
With highly efficient, light weight, small volume, low noise, smooth operation
Products with manual/automatic stop, start, and unloading relief function.
With highly efficient, light weight, small volume, low noise, smooth operation
Products with manual/automatic stop, start, and unloading relief function.
Apply to ship host to start.
Specification
| Model | Displacement | Specified Pressure | Rotating Speed | Motor Power | Dimension（L×W×H） | Weight | ||
| m3/h | m3/ min | MPa | r/min | kW | HP | mm | kg | |
| 2ZFC-0.34/30-B(Emergency air compressor) | 20.4 | 0.34 | 3.0 | 600 | KM186F Diesel engine | 1000×500×780 | 170 | |
| Diesel-engine Model KM186F | Starting method: hand drawn centrifugal clutch | |||||||
