Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Dredging Bucket Wheel

4000mm Diameter Bucket Wheel for Dredger

Dredger Bucket Wheel have the feature of high quality, built in root cutter,smooth dredging process and lower operating cost. Technical Specification Suction Tube Dia. ...

ISO9001 Supplier Class Certificate Export Supply

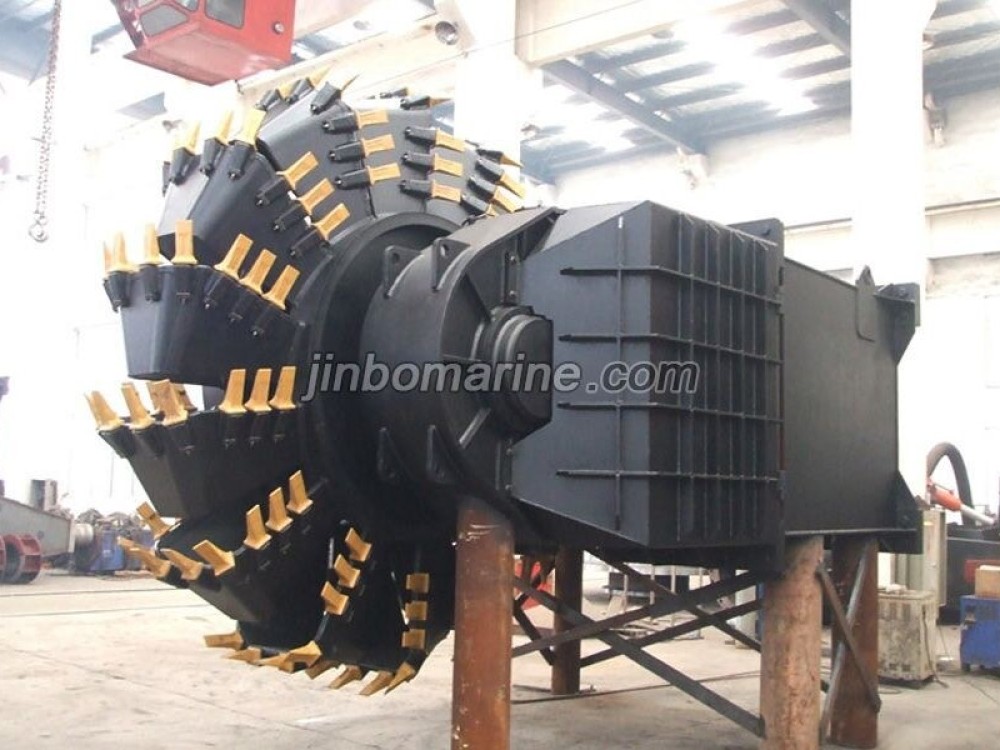

4000mm Diameter Bucket Wheel for Dredger

Key Highlights

Category
Dredging Bucket Wheel
Standard
EN
Material
Q345-Mn13
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Dredging Bucket Wheel
Model / SKU
4000mm-Diameter-Bucket-Wheel-for-Dredger
Standard
EN
Material
Q345-Mn13
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

China 4000mm Diameter Bucket Wheel for Dredger:

Dredger Bucket Wheel have the feature of high quality, built in root cutter,smooth dredging process and lower operating cost.

Technical Specification

Suction Tube Dia. Max Dia. of Wheel Width Height Center Height Rotate Speed (rpm) Power(kw)
450 2700 550 650 1550 0-26 110
550 3500 750 800 1875 0-22 270
600 3800 750 820 2030 0-20 350
650 4000 780 860 2255 0-18 380
700 4400 900 995 2490 0-16 558
850 6000 1300 1300 3300 0-15 900

3500mm Diameter Bucket Wheel

Suction Tube Dia. Max Dia. of Wheel Width Height Center Height Rotate Speed (rpm) Power(kw)
450 2700 550 650 1550 0-26 110
550 3500 750 800 1875 0-22 270
600 3800 750 820 2030 0-20 350
650 4000 780 860 2255 0-18 380
700 4400 900 995 2490 0-16 558
850 6000 1300 1300 3300 0-15 900

4000mm Diameter Cutting Wheel for Dredger

Suction Tube Dia. Max Dia. of Wheel Width Height Center Height Rotate Speed (rpm) Power(kw)
450 2700 550 650 1550 0-26 110
550 3500 750 800 1875 0-22 270
600 3800 750 820 2030 0-20 350
650 4000 780 860 2255 0-18 380
700 4400 900 995 2490 0-16 558
850 6000 1300 1300 3300 0-15 900
