1.Stainless steel structure.
2.Easy to operate and drain, wet disposing.
3.The equipment has passed MARPOL 73/78 Annex V test.
4.Optional stainless steel sink.
5.Various model and specifications are avaliable.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Marine Kitchen Galley

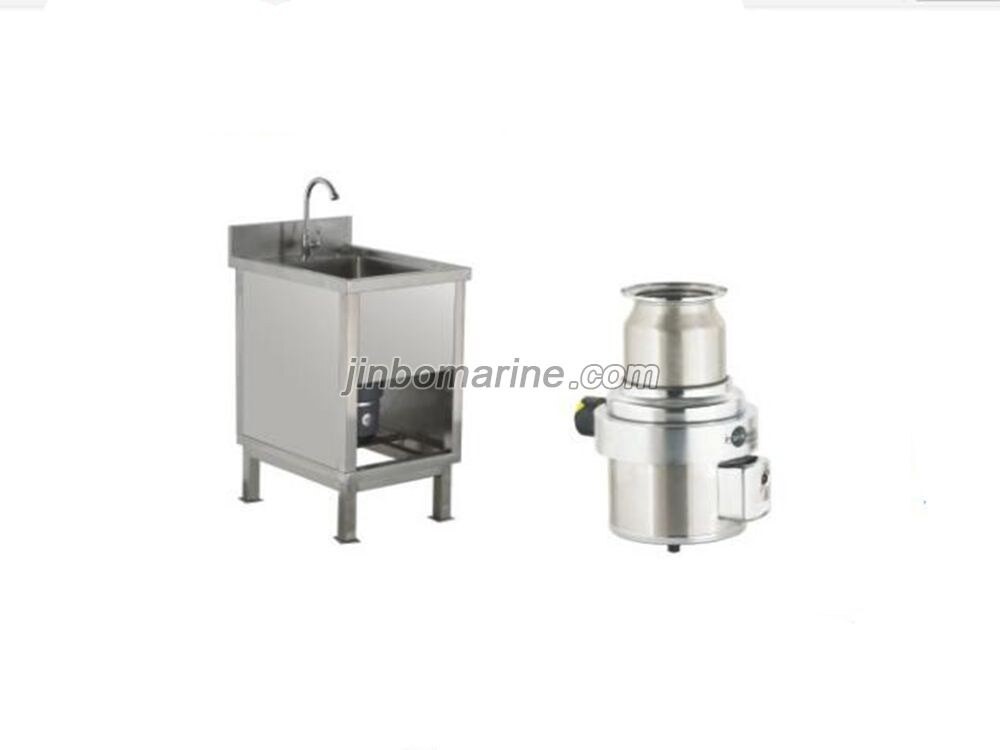

510 Marine Waste Disposer
510 Marine Waste Disposer 1.Stainless steel structure. 2.Easy to operate and drain, wet disposing. 3.The equipment has passed MARPOL 73/78 Annex V test. 4.Optional stainless steel sink. 5.Various model and spec...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Marine Kitchen Galley
Standard
EN
Material
SS
Weight / Size
510 Marine Waste Disposer Specification Model Voltage Capacity Rating Si...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Marine Kitchen Galley
Model / SKU
510-Marine-Waste-Disposer
Standard
EN
Material
SS
Weight / Size
510 Marine Waste Disposer Specification Model Voltage Capacity Rating Size(WxDxH)mm Weight E200 220v-1p-50Hz/60Hz 150kg/h 0.45Kw Φ234x344 10kg 510 380-415V/3P/50Hz 440-480V/3P/60Hz 300kg/h 0.75Kw Φ253x485 30kg FCJ15 380-415V/3P/50Hz 440-480V/3P/60Hz 1-15kg/min 1.5Kw Φ380x840 80kg 510/FCJ15 can provide CCS certification
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
510 Marine Waste Disposer
510 Marine Waste Disposer Specification
| Model | Voltage | Capacity | Rating | Size(WxDxH)mm | Weight | ||||||
| E200 | 220v-1p-50Hz/60Hz | 150kg/h | 0.45Kw | Φ234x344 | 10kg | ||||||
| 510 | 380-415V/3P/50Hz 440-480V/3P/60Hz | 300kg/h | 0.75Kw | Φ253x485 | 30kg | ||||||
| FCJ15 | 380-415V/3P/50Hz 440-480V/3P/60Hz | 1-15kg/min | 1.5Kw | Φ380x840 | 80kg | ||||||
| 510/FCJ15 can provide CCS certification | |||||||||||
