Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Marine Generator

6LTAA8.9-GM200 Cummins Emergency Generator

Cummins Emergency Generator: 1. Applicable to small and medium-sized rivers, lakes and coastal fishing boats, tugs, passenger ship, cargo ships, cruise ships, ferries and other kinds of ship type of emergency powe...

ISO9001 Supplier Class Certificate Export Supply

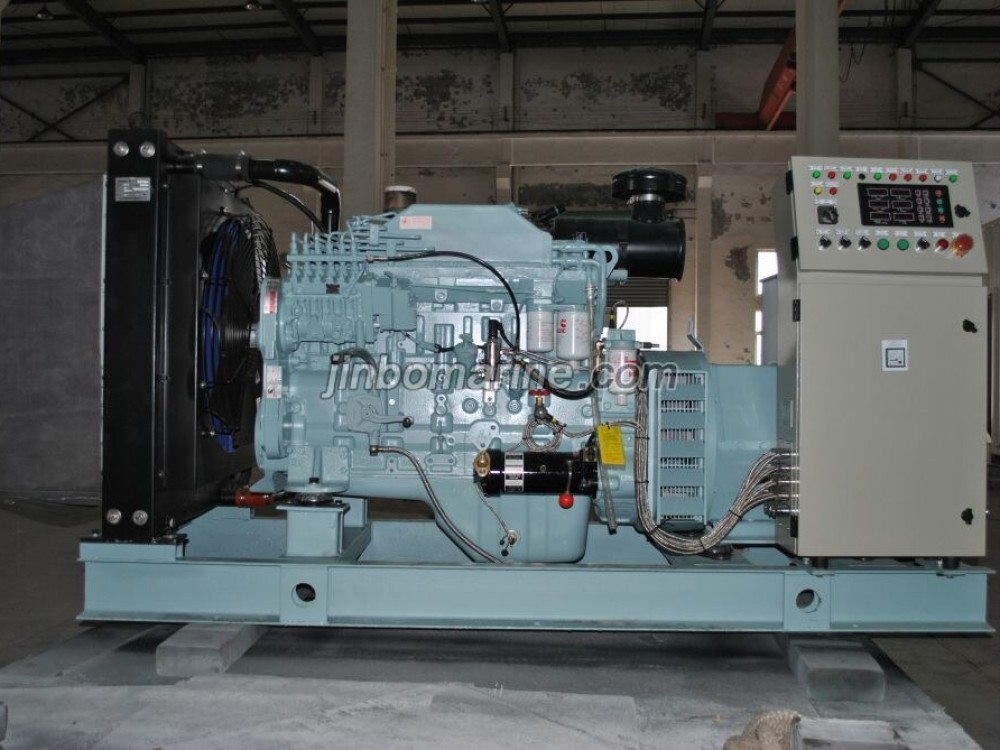

6LTAA8.9-GM200 Cummins Emergency Generator

Key Highlights

Category
Marine Generator
Standard
DIN
Weight / Size
Applicable to small and medium-sized rivers, lakes and coastal fishing b...
Certificate
CCS, BV, ABS, GL，LR, NK
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Generator
Model / SKU
6LTAA8-9-GM200-Cummins-Emergency-Generator
Standard
DIN
Weight / Size
Applicable to small and medium-sized rivers, lakes and coastal fishing boats, tugs, passenger ship, cargo ships, cruise ships, ferries and other kinds of ship type of emergency power supply.
Certificate
CCS, BV, ABS, GL，LR, NK
Warranty
12 Months unless specified otherwise
Origin
China

Cummins Emergency Generator:

1. Applicable to small and medium-sized rivers, lakes and coastal fishing boats, tugs, passenger ship, cargo ships, cruise ships, ferries and other kinds of ship type of emergency power supply.
2. Have the professional experience of Marine power, satisfy personalized customer requirements
3. During the installation process to provide professional application support and after-sales service
4. By CCS, BV, ABS, GL, classification society certification LR, NK, and many other countries
5. The cooling system of generator unit is a fan-water-radiator and the starting model is dual energy start

6. We can supply 1500 r/min, 50 Hz unit configuration, and we also can according to customer requirements to provide 1800 RPM, 60 Hz diesel generating sets

Engine:

4 B, 6 B, 6 C, 6L series diesel engines are adopt from Dongfeng cummins engine ( a sino-US joint venture company) , Chongqing cummins diesel engine N, K19, K38, K50 series diesel engine, with reasonable structure, excellent performance, easy maintenance and other significant characteristics, professional after-sales service network throughout the rest of the world, providing customers with 24-hour after-sales service and spare parts supply.

The Generator:

Optional Stanford, marathon, domestic well-known brands such as Siemens, Kang Fu ac synchronous generator, protection grade can provide IP23 or IP44
Diesel Engine Specifications generator specifications Size
Model RPM Number
of Cylinders 		Diameter of
cylinder/Stroke(mm) 		displacement
(L) 		fuel
consumpation
(g/kw.h) 		Model L*W*H
（mm） 		Weight
（kg）
Stanford marathon
6CTA8.3-GM155 1500 6L 114/135 8.3 209 UCM224G MP-H-120-4 2300*860*1390 2500
6LTAA8.9-GM200 1500 6L 114/145 8.9 209 UCDM274J MP-H-150-4 2890*1220*1750 2600
