A fully assembled pressure set that simplifies the installation of water pressure systems for both the professional and amateur installer. The set consists of a 5 chamber diaphragm pump, strainer and pre-pressurized accumulator tank with quick connect electrical connections on a rubber mounted board. Serves 3 or more 1/2" (13mm) outlets.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Pump Motor And Accessories
8L Pump Accumulator Pressure Boost System
8L Pump Accumulator Pressure Boost System A fully assembled pressure set that simplifies the installation of water pressure systems for both the professional and amateur installer. The set consis...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Pump Motor And Accessories
Standard
EN
Weight / Size
Parameter pump and motor PUMP Type 5 Chamber positive displacement diaph...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Pump Motor And Accessories
Model / SKU
8L-Pump-Accumulator-Pressure-Boost-System
Standard
EN
Weight / Size
Parameter pump and motor PUMP Type 5 Chamber positive displacement diaphragm pump, self priming, capable of being run dry Control Type Pressure switch Max Recommended Temperature 60° C（140° F） Priming Capabilities 6 feet (1.8 m) suction lift Re-start Pressure Shut-off Pressure 60 PSI ：48 PSI ±5 PSI (±0.3 bar) Inlet/Outlet Ports 1/2"-14 MNPT Weight 11.9 lbs (5.4 kg) MOTOR Leads 14 AWG, 13" (33cm) long with 2-Pin connector/Leads Duty Cycle Continuous Max.Amp Draw 18.9 A Fuse 28.4 A STANDARD PUMP CONFIGURATIONS Model Tank Volume Voltage Control Type Open Flow （GPM/LPM) Pressure On (PSI/BAR) Pressure Off (PSI/BAR) Max Draw Ports Wire Connections SFWSK1-030-060-0021 8L 12V Switch 3.0 / 11.5 40 / 2.8 60 / 4.2 10.0A 1/2" barb 2-Pin/Leads SFWSK2-030-060-0021 8L 24V Switch 3.0 / 11.5 40 / 2.8 60 / 4.2 5.5A 1/2" barb 2-Pin/Leads SFWSK1-040-060-0021 8L 12V Switch 4.0 / 15.0 40 / 2.8 60 / 4.2 13.0A 1/2" barb 2-Pin/Leads SFWSK2-040-060-0021 8L 24V Switch 4.0 / 15.0 40 / 2.8 60 / 4.2 7.0A 1/2" barb 2-Pin/Leads SFWSK1-050-060-0021 8L 12V Switch 5.0 / 18.9 40 / 2.8 60 / 4.2 17.0A 1/2" barb 2-Pin/Leads SFWSK2-050-060-0021 8L 24V Switch 5.0 / 18.9 40 / 2.8 60 / 4.2 9.0A 1/2" barb 2-Pin/Leads
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

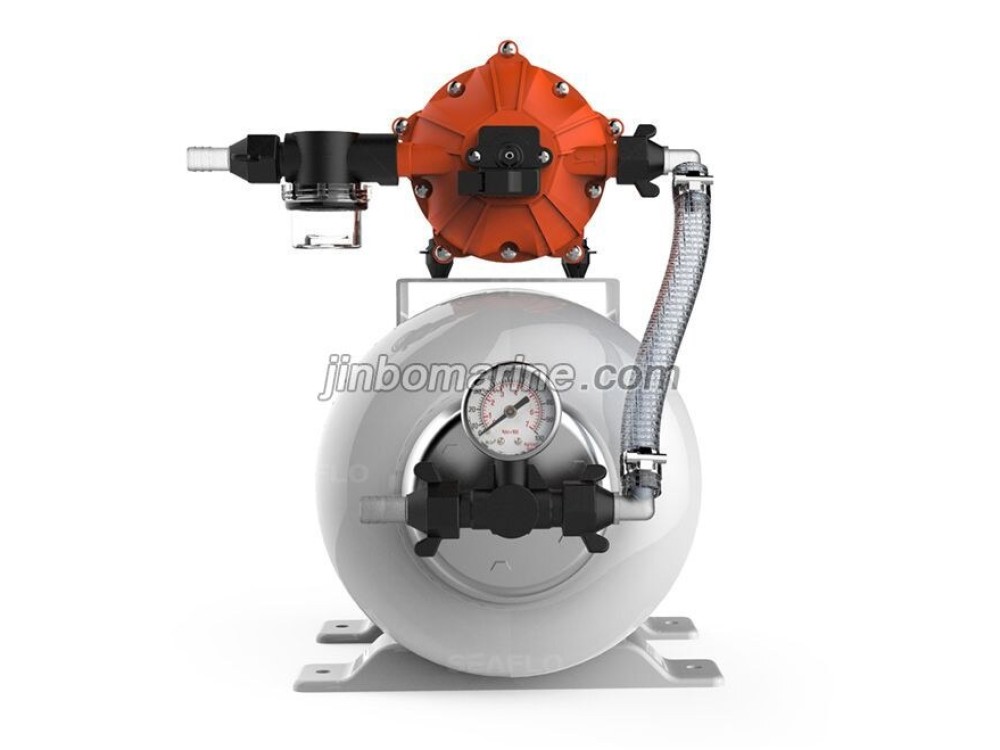

8L Pump Accumulator Pressure Boost System
Parameter pump and motor
| PUMP | |
| Type | 5 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
| Control Type | Pressure switch |
| Max Recommended Temperature | 60° C（140° F） |
| Priming Capabilities | 6 feet (1.8 m) suction lift |
| Re-start Pressure | Shut-off Pressure 60 PSI ：48 PSI ±5 PSI (±0.3 bar) |
| Inlet/Outlet Ports | 1/2"-14 MNPT |
| Weight | 11.9 lbs (5.4 kg) |
| MOTOR | |
| Leads | 14 AWG, 13" (33cm) long with 2-Pin connector/Leads |
| Duty Cycle | Continuous |
| Max.Amp Draw | 18.9 A |
| Fuse | 28.4 A |
STANDARD PUMP CONFIGURATIONS
| Model | Tank Volume | Voltage | Control Type | Open Flow （GPM/LPM) | Pressure On | Pressure Off | Max Draw | Ports | Wire Connections |
| SFWSK1-030-060-0021 | 8L | 12V | Switch | 3.0 / 11.5 | 40 / 2.8 | 60 / 4.2 | 10.0A | 1/2" barb | 2-Pin/Leads |
| SFWSK2-030-060-0021 | 8L | 24V | Switch | 3.0 / 11.5 | 40 / 2.8 | 60 / 4.2 | 5.5A | 1/2" barb | 2-Pin/Leads |
| SFWSK1-040-060-0021 | 8L | 12V | Switch | 4.0 / 15.0 | 40 / 2.8 | 60 / 4.2 | 13.0A | 1/2" barb | 2-Pin/Leads |
| SFWSK2-040-060-0021 | 8L | 24V | Switch | 4.0 / 15.0 | 40 / 2.8 | 60 / 4.2 | 7.0A | 1/2" barb | 2-Pin/Leads |
| SFWSK1-050-060-0021 | 8L | 12V | Switch | 5.0 / 18.9 | 40 / 2.8 | 60 / 4.2 | 17.0A | 1/2" barb | 2-Pin/Leads |
| SFWSK2-050-060-0021 | 8L | 24V | Switch | 5.0 / 18.9 | 40 / 2.8 | 60 / 4.2 | 9.0A | 1/2" barb | 2-Pin/Leads |
