| ID | OD | WP | BP | Bending Radius | Plies | Weight | Length | ||||
| mm | inch | mm | inch | Mpa | bar | Mpa | bar | mm | B | kg/m | m |
| 10 | 3/8" | 18 | 3/4" | 3 | 30 | 9 | 90 | 130 | 1 | 0.3 | 20-50 |
| 12.5 | 1/2" | 23 | 7/8" | 3 | 30 | 9 | 90 | 180 | 1 | 0.46 | 20-50 |
| 16 | 5/8" | 26 | 1" | 2.5 | 25 | 7.5 | 75 | 210 | 1 | 0.53 | 20-50 |
| 19 | 3/4" | 29 | 1-1/4" | 2.5 | 25 | 7.5 | 75 | 240 | 1 | 0.6 | 20-50 |
| 22 | 7/8" | 32 | 1-1/4" | 2 | 20 | 6 | 60 | 280 | 1 | 0.8 | 20-50 |
| 25 | 1" | 35 | 1-2/5" | 2 | 20 | 6 | 60 | 375 | 1 | 0.93 | 20-50 |
| 32 | 1-1/4" | 42 | 1-5/8" | 1.5 | 15 | 4.5 | 45 | 420 | 2 | 1.25 | 20-50 |
| 38 | 1-1/2" | 48 | 1-7/8" | 1.5 | 15 | 4.5 | 45 | 500 | 2 | 1.47 | 20-50 |
| 45 | 1-3/4" | 56 | 2-1/4" | 1.2 | 12 | 3.6 | 36 | 630 | 2 | 1.76 | 20-50 |
| 50 | 2" | 64 | 2-1/2" | 1.2 | 12 | 3.6 | 36 | 630 | 2 | 1.92 | 20-50 |
| 57 | 2-1/4" | 70 | 2-4/5" | 1 | 10 | 3 | 30 | 855 | 2 | 2.1 | 20-50 |
| 64 | 2-1/2" | 78 | 3" | 1 | 10 | 3 | 30 | 960 | 2 | 2.56 | 20-50 |
| 76 | 3" | 90 | 3-1/2" | 0.8 | 8 | 2.4 | 24 | 1140 | 2 | 2.96 | 20-50 |
| 90 | 3-1/2" | 106 | 4" | 0.6 | 6 | 1.8 | 18 | 1350 | 2 | 3.7 | 20-50 |
| 100 | 4" | 120 | 4-4/5" | 0.6 | 6 | 1.8 | 18 | 1530 | 2 | 4.3 | 20-50 |
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Air and General Purpose Hose

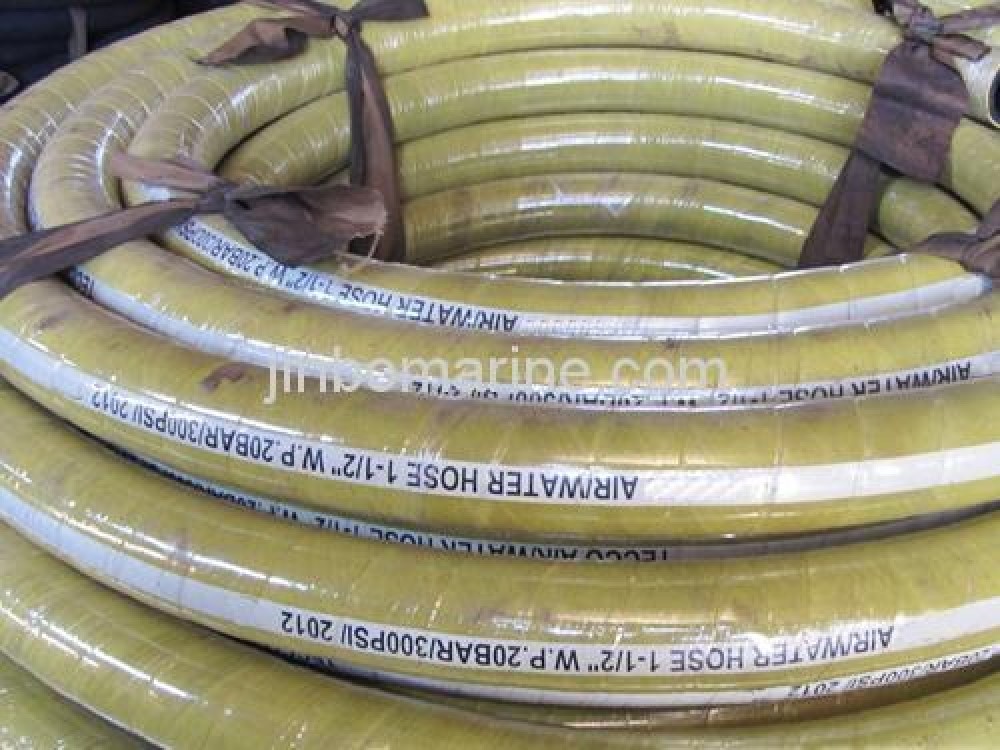

Air Hose
Main Specification ID OD WP BP Bending Radius Plies Weight Length ...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Air and General Purpose Hose
Standard
DIN
Weight / Size
Main Specification ID OD WP BP Bending Radius Plies Weight Length mm inc...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Air and General Purpose Hose
Model / SKU
Air-Hose
Standard
DIN
Weight / Size
Main Specification ID OD WP BP Bending Radius Plies Weight Length mm inch mm inch Mpa bar Mpa bar mm B kg/m m 10 3/8" 18 3/4" 3 30 9 90 130 1 0.3 20-50 12.5 1/2" 23 7/8" 3 30 9 90 180 1 0.46 20-50 16 5/8" 26 1" 2.5 25 7.5 75 210 1 0.53 20-50 19 3/4" 29 1-1/4" 2.5 25 7.5 75 240 1 0.6 20-50 22 7/8" 32 1-1/4" 2 20 6 60 280 1 0.8 20-50 25 1" 35 1-2/5" 2 20 6 60 375 1 0.93 20-50 32 1-1/4" 42 1-5/8" 1.5 15 4.5 45 420 2 1.25 20-50 38 1-1/2" 48 1-7/8" 1.5 15 4.5 45 500 2 1.47 20-50 45 1-3/4" 56 2-1/4" 1.2 12 3.6 36 630 2 1.76 20-50 50 2" 64 2-1/2" 1.2 12 3.6 36 630 2 1.92 20-50 57 2-1/4" 70 2-4/5" 1 10 3 30 855 2 2.1 20-50 64 2-1/2" 78 3" 1 10 3 30 960 2 2.56 20-50 76 3" 90 3-1/2" 0.8 8 2.4 24 1140 2 2.96 20-50 90 3-1/2" 106 4" 0.6 6 1.8 18 1350 2 3.7 20-50 100 4" 120 4-4/5" 0.6 6 1.8 18 1530 2 4.3 20-50
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
