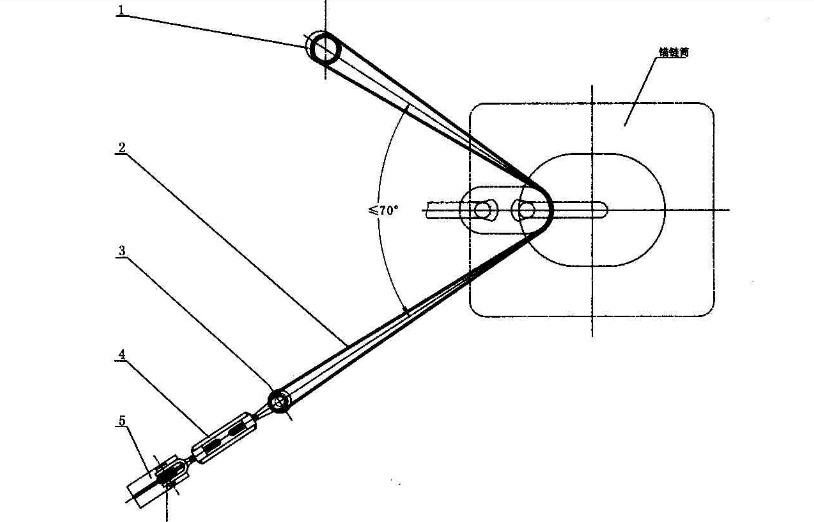

Anchor Stopper consists of bollard, wire rope, Turn buckle, shackle and eye plates.
1. Bollard
2. Wire rope
3. Roller
4. Turn buckle, shackle
5. Eye plates.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Chain Stopper
Anchor Stoppers CB/T 877-2011
Anchor Stopper Structure Anchor Stopper consists of bollard, wire rope, Turn buckle, shackle and eye plates. 1. Bollard 2. Wire rope 3. Roller 4. Turn buckle, shackle 5. Ey...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Chain Stopper
Standard
CB
Material
Steel
Weight / Size
Anchor Stopper Size(mm) Anchor Chain Diameter Wire Rope Size Turnbuckle ...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Chain Stopper
Model / SKU
Anchor-Stoppers-CB-T-877-2011
Standard
CB
Material
Steel
Weight / Size
Anchor Stopper Size(mm) Anchor Chain Diameter Wire Rope Size Turnbuckle and Shackle Eye Plates Weight(kgs) 16-19 7 KUUD12-M F6 1.7 20.5-24 8 KUUD14-M F10 2.6 28-34 9 KUUD20-M F20 6.8 36-42 11 KUUH24-M F30 11.8 44-48 13 KUUH27-M F40 13.9 50-60 16 KUUH36-M F60 26.4 62-68 18 KUUH39-M F80 34.4 70-78 20 KUUH42-M F100 43.4 81-87 22 KUUH48-M F120 66.5 87-92 24 KUUH56-M F160 78.5 95-102 26 KUUH60-M F200 96.3 107-114 32 KUUH64-M F250 126.7 117-122 32 KUUH64-M F250 126.7
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Anchor Stopper Structure
Anchor Stopper Size(mm)
| Anchor Chain Diameter | Wire Rope Size | Turnbuckle and Shackle | Eye Plates | Weight(kgs) |
| 16-19 | 7 | KUUD12-M | F6 | 1.7 |
| 20.5-24 | 8 | KUUD14-M | F10 | 2.6 |
| 28-34 | 9 | KUUD20-M | F20 | 6.8 |
| 36-42 | 11 | KUUH24-M | F30 | 11.8 |
| 44-48 | 13 | KUUH27-M | F40 | 13.9 |
| 50-60 | 16 | KUUH36-M | F60 | 26.4 |
| 62-68 | 18 | KUUH39-M | F80 | 34.4 |
| 70-78 | 20 | KUUH42-M | F100 | 43.4 |
| 81-87 | 22 | KUUH48-M | F120 | 66.5 |
| 87-92 | 24 | KUUH56-M | F160 | 78.5 |
| 95-102 | 26 | KUUH60-M | F200 | 96.3 |
| 107-114 | 32 | KUUH64-M | F250 | 126.7 |
| 117-122 | 32 | KUUH64-M | F250 | 126.7 |
