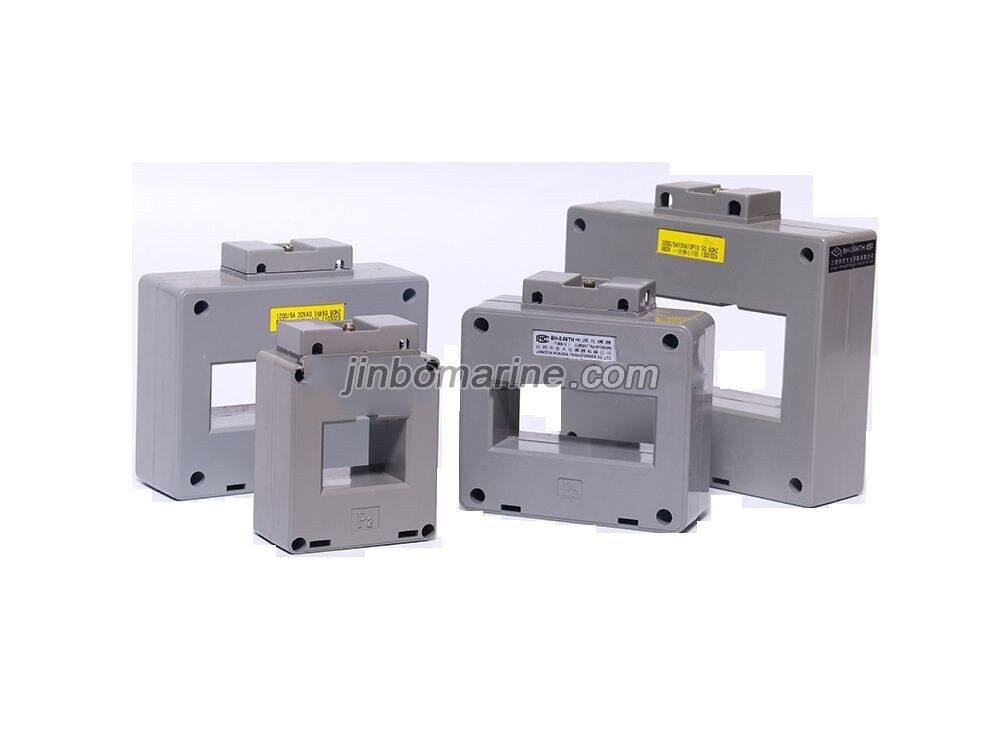

BH-0.66TH II Special Size Marine Current Transformer

Transformer, instrument transformer), also known as instrument transformer, current transformer and voltage transformer is a general designation to high voltage to low voltage, large current to small current, its function is used to measure or to protect system is mainly to high voltage or high current in proportion to transform into standard low voltage (100 v) or small current (5 a or 1 a, shall mean rating), in order to achieve the standardization of measuring instrument to protect equipment and automatic control equipment, miniaturization transformer can also be used to separate the high voltage system at the same time, in order to ensure personal and equiment safety.

BH-0.66TH II Type Marine Current Transformer Main Purposes And Parameters
1.Application: mainly used for electric power, electrical line voltage measurement,overload protection, intercept signal.
2.Working temperature: -40℃~+40℃
3.Rated voltage: 0..66KV
4.Rated frequency: 50/60 HZ
5.Rated primary voltage:5~10000kv
6. Rated secondary voltage: 1~5A
7.Rated secondary load: 2.5~50VA
8.Accurate level: 5P,10P
9:Standard: GB20840, IEC61869
