BH-0.66TH III-2P Type Marine Current Transformer
Transformer Definition Transformer, instrument transformer), also known as instrument transformer, current transformer and voltage transformer is a general designation to high voltage to low voltage, large current to...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Marine Transformers
Standard
GB
Weight / Size
GB20840, IEC61869 BH-0.66TH III-2P Marine Current Transformer Drawing BH...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Marine Transformers
Model / SKU
BH-0-66TH-III-2P-Type-Marine-Current-Transformer
Standard
GB
Weight / Size
GB20840, IEC61869 BH-0.66TH III-2P Marine Current Transformer Drawing BH-0.66TH III-2P Marine Current Transformer Parameters Rated Primary Current Overall Size Inner Hole Size W H D a b 50III-2P 111 135 75 52 32 60III-2P 130 166 75 63 59 80III-2P 165 171 75 83 54 100III-2P 191 172 75 103 56 120III-2P 221 204 90 130 81 170III-2P 255 201 60 167 106 200III-2P 230 169 60 225 56
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Transformer Definition
Transformer, instrument transformer), also known as instrument transformer, current transformer and voltage transformer is a general designation to high voltage to low voltage, large current to small current, its function is used to measure or to protect system is mainly to high voltage or high current in proportion to transform into standard low voltage (100 v) or small current (5 a or 1 a, shall mean rating), in order to achieve the standardization of measuring instrument to protect equipment and automatic control equipment, miniaturization transformer can also be used to separate the high voltage system at the same time, in order to ensure personal and equiment safety.

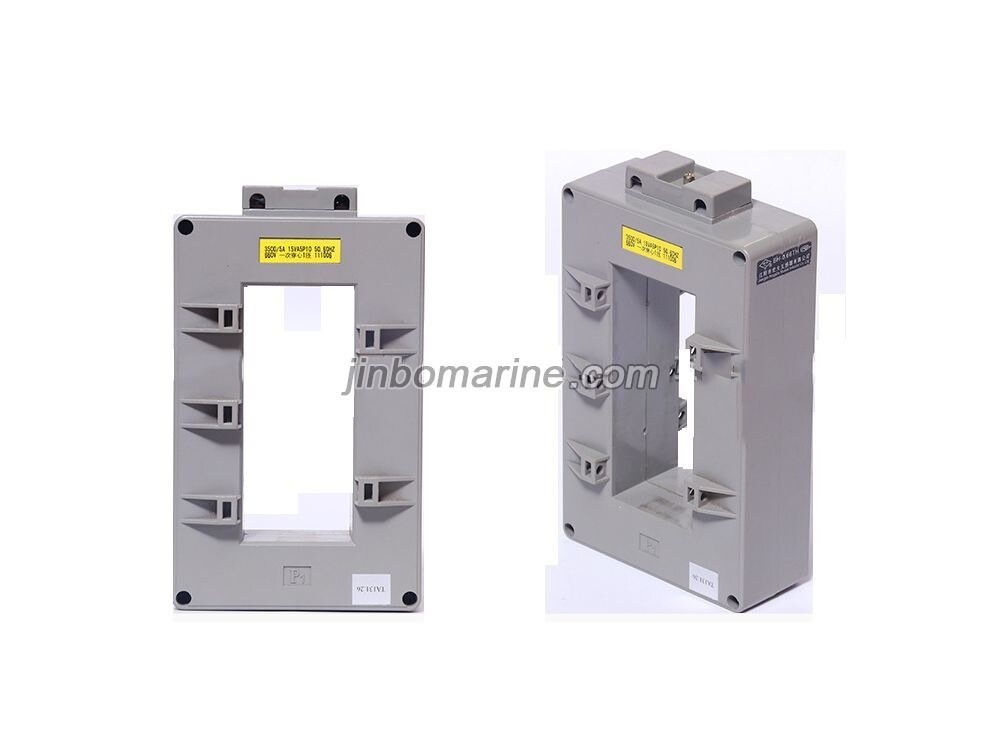

BH-0.66TH III-2P Marine Current Transformer
1.Application: mainly used for electric power, electrical line voltage measurement,overload protection, intercept signal.
2.Working temperature: -40℃~+40℃
3.Rated voltage: 0..66KV
4.Rated frequency: 50/60 HZ
5.Rated primary voltage:5~10000kv
6. Rated secondary voltage: 1~5A
7.Rated secondary load: 2.5~50VA
8.Accurate level: 5P,10P
9:Standard: GB20840, IEC61869
BH-0.66TH III-2P Marine Current Transformer Drawing
BH-0.66TH III-2P Marine Current Transformer Parameters
| Rated Primary Current | Overall Size | Inner Hole Size | |||
| W | H | D | a | b | |
| 50III-2P | 111 | 135 | 75 | 52 | 32 |
| 60III-2P | 130 | 166 | 75 | 63 | 59 |
| 80III-2P | 165 | 171 | 75 | 83 | 54 |
| 100III-2P | 191 | 172 | 75 | 103 | 56 |
| 120III-2P | 221 | 204 | 90 | 130 | 81 |
| 170III-2P | 255 | 201 | 60 | 167 | 106 |
| 200III-2P | 230 | 169 | 60 | 225 | 56 |
