Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Chain Sling

BLT086 Angular Contat Bearing Swivels-UU Style

BLT086 Angular Contat Bearing Swivels-UU Style The rotating rings are made of high-strength and high-toughness special alloy steel forging and finishing, all of which are modulated and heat treated. The design s...

ISO9001 Supplier Class Certificate Export Supply
BLT086 Angular Contat Bearing Swivels-UU Style

Key Highlights

Category
Chain Sling
Standard
EN
Material
BLT086 Angular Contat Bearing Swivels-UU Style The rotating rings are ma...
Weight / Size
SIZE WLL/T WEIGHT/KG BLT086-007 0.75 0.75 0.5 BLT086-015 1.5 1.5 0.9 BLT...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Chain Sling
Model / SKU
BLT086-Angular-Contat-Bearing-Swivels-UU-Style
Standard
EN
Material
BLT086 Angular Contat Bearing Swivels-UU Style The rotating rings are made of high-strength and high-toughness special alloy steel forging and finishing, all of which are modulated and heat treated.
Weight / Size
SIZE WLL/T WEIGHT/KG BLT086-007 0.75 0.75 0.5 BLT086-015 1.5 1.5 0.9 BLT086-030 3 3 2.3 BLT086-050 5 5 4.4 BLT086-085 8.5 8.5 7.6 BLT086-100 10 10 19.5 BLT086-150 15 15 21.7 BLT086-250 25 25 39.5 BLT086-350 35 35 46.2 BLT086-600 60 60 ITEM NO.
Surface
galvanized
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

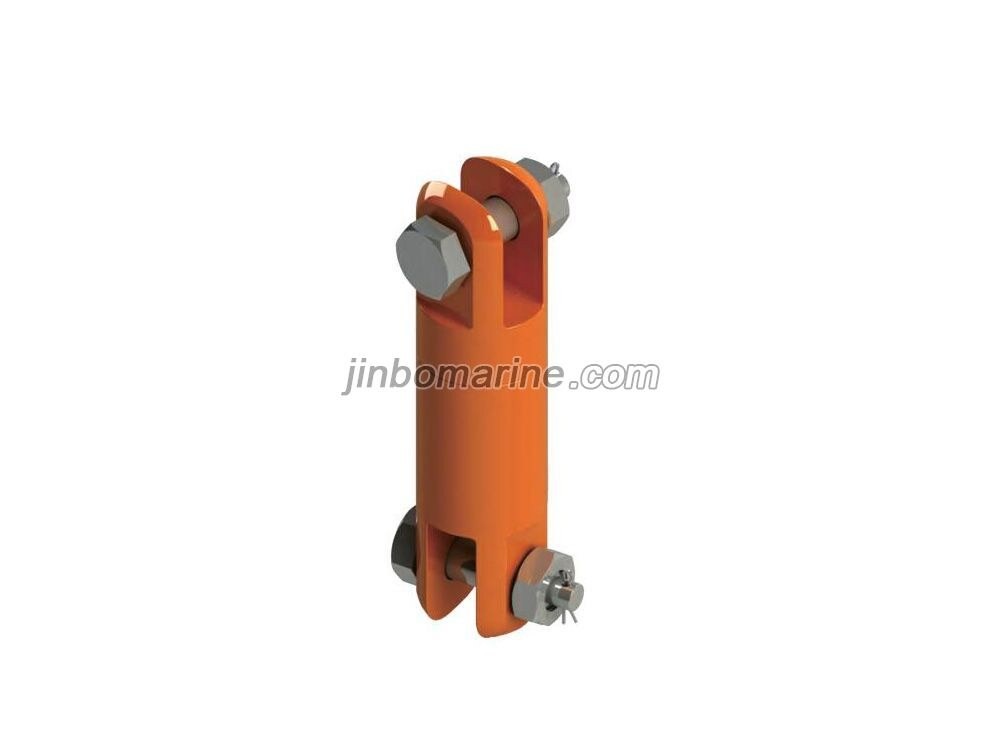

BLT086 Angular Contat Bearing Swivels-UU Style

The rotating rings are made of high-strength and high-toughness special alloy steel forging and finishing, all of which are modulated and heat treated.

The design safety factor of the rotating ring is 4:1
The independent test load should be twice the safe working load when the rotating ring is tested and certified.
The surface of the rotating ring is galvanized or plastic coated, so that the product can have better corrosion resistance and longevity.
The rotating ring is provided with a grease nipple to facilitate maintenance and make the product have better performance.

BLT086 Angular Contat Bearing Swivels-UU Style Drawing

BLT086 Angular Contat Bearing Swivels-UU Style Parameters

ITEM NO. SIZE WLL/T WEIGHT/KG
BLT086-007 0.75 0.75 0.5
BLT086-015 1.5 1.5 0.9
BLT086-030 3 3 2.3
BLT086-050 5 5 4.4
BLT086-085 8.5 8.5 7.6
BLT086-100 10 10 19.5
BLT086-150 15 15 21.7
BLT086-250 25 25 39.5
BLT086-350 35 35 46.2
BLT086-600 60 60
ITEM NO. TECHNICAL PARAMETERS/MM
B K L C
BLT086-007 34 102 128 13
BLT086-015 40 112 152 20
BLT086-030 53 160 210 25
BLT086-050 67 203 267 32
BLT086-085 78 250 326 38
BLT086-100 104 310 410 50
BLT086-150 116 320 440 60
BLT086-250 137 405 535 65
BLT086-350 154 405 535 65
BLT086-600 270 670 890 112
ITEM NO. TECHNICAL PARAMETERS/MM
A D G H
BLT086-007 15 10 8 22
BLT086-015 18 13 8 26
BLT086-030 23 19 10 32
BLT086-050 32 22 14 37
BLT086-085 40 30 14 54
BLT086-100 42 38 25 54
BLT086-150 48 38 25 57
BLT086-250 62 50 30 70
BLT086-350 62 50 33 70
BLT086-600 100 80 75 75
