Heat Exchanger

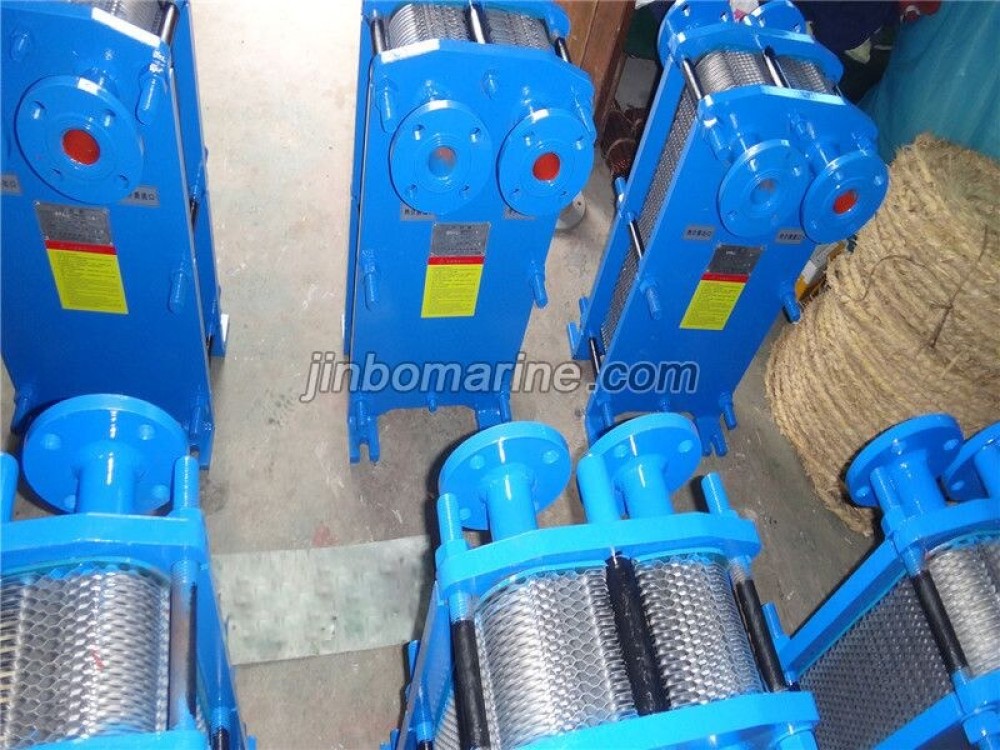

BR-0.05 Plate Heat Exchanger
BR0.05 plate heat exchanger design concept: The plate with a new pressurized diversion zone design greatly improves the heat transfer efficiency of plate, reduce dead angle, improve the scale of the plate. All the s...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Heat Exchanger
Standard
EN
Weight / Size
The dimension of the plate is mm3：495*166*0.5 The monolithic heat transf...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Heat Exchanger
Model / SKU
BR-0-05-Plate-Heat-Exchanger
Standard
EN
Weight / Size
The dimension of the plate is mm3：495*166*0.5 The monolithic heat transfer area is M2 0.151 Plate spacing mm 3.1 The cross-sectional area of single channel is M2：0.000441 The maximum processing capacity was mm3/h：2-30 Flange diameter DNmm 25 The working temperature℃ ≤180 Working pressure Mpa：0.6,1.0 Angle hole diameter mm：32 Dimension:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
BR0.05 plate heat exchanger design concept:
The plate with a new pressurized diversion zone design greatly improves the heat transfer efficiency of plate, reduce dead angle, improve the scale of the plate. All the sealing gaskets are made of free form, which reduces the cost of operation and maintenance and is easy to maintain.
Tecanical data:
The dimension of the plate is mm3：495*166*0.5
The monolithic heat transfer area is M2 0.151
Plate spacing mm 3.1
The cross-sectional area of single channel is M2：0.000441
The maximum processing capacity was mm3/h：2-30
Flange diameter DNmm 25
The working temperature℃ ≤180
Working pressure Mpa：0.6,1.0
Angle hole diameter mm：32
Dimension:
| No: | Total heat transfer area m2 | Number of plates (sheets) | L(mm) | D | A | Weight(kg) |
| 1 | 0.5 | 11 | 40 | 240 | 130 | 53 |
| 2 | 0.75 | 17 | 61 | 260 | 151 | 56 |
| 3 | 1 | 21 | 76 | 275 | 166 | 58 |
| 4 | 1.5 | 31 | 112 | 310 | 202 | 62 |
| 5 | 2 | 41 | 148 | 350 | 238 | 67 |
| 6 | 2.5 | 51 | 184 | 385 | 274 | 71 |
| 7 | 3 | 61 | 220 | 420 | 310 | 76 |
| 8 | 3.5 | 71 | 256 | 455 | 346 | 80 |
| 9 | 4 | 81 | 292 | 490 | 382 | 85 |
| 10 | 4.5 | 91 | 328 | 530 | 418 | 89 |
| 11 | 5 | 101 | 364 | 565 | 454 | 94 |
