| Model | Rated pull (LBS/KG) | Gear ratio | Handle length(mm) | Drum-Hub dia(mm) | Cable Size (mmxm) | Box quantity | Box size | |
| H600 | 600 | 270 | 3.1:1 | 165 | 16 | 4.2x6 | 6 | 59x26x16 |
| H800 | 800 | 360 | 3.1:1 | 175 | 16 | 4.2x6 | 6 | 59x26x16 |
| H1000 | 1000 | 450 | 4.1:1 | 200 | 18 | 4.5x10 | 6 | 60x27x18 |
| H1200 | 1200 | 540 | 4.1:1 | 225 | 18 | 4.5x10 | 6 | 60x27x18 |
| H1400 | 1400 | 630 | 4.1:1 | 225 | 18 | 4.8x10 | 6 | 61x27x19 |
| H1600 | 1600 | 720 | 5.1:1 | 225 | 20 | 4.8x10 | 4 | 45x31x20 |
| H1800 | 1800 | 810 | 4.1:1 | 250 | 20 | 4.8x10 | 4 | 52x31x20 |
| H2000 | 2000 | 900 | 4.1:1 | 250 | 20 | 5x10 | 4 | 52x31x20 |
| H2500 | 2500 | 1100 | 5.1:1 | 275 | 20 | 5x10 | 4 | 54x33x21 |
| Model | Rated pull (LBS/KG) | Gear ratio | Handle length(mm) | Drum-Hub dia(mm) | Color belt Size | Box quantity | Box size | |
| W600 | 600 | 270 | 3.1:1 | 165 | 16 | 1.0x50x6m | 6 | 59x26x16 |
| W800 | 800 | 360 | 3.1:1 | 175 | 16 | 1.0x50x6m | 6 | 59x26x16 |
| W1000 | 1000 | 450 | 4.1:1 | 200 | 18 | 1.5x50x8m | 6 | 60x27x18 |
| W1200 | 1200 | 540 | 4.1:1 | 225 | 18 | 1.4x50x8m | 6 | 60x27x18 |
| W1400 | 1400 | 630 | 4.1:1 | 225 | 18 | 1.6x50x8m | 6 | 61x27x19 |
| W1600 | 1600 | 720 | 5.1:1 | 225 | 20 | 1.6x50x8m | 4 | 45x31x20 |
| W1800 | 1800 | 810 | 4.1:1 | 250 | 20 | 1.8x50x8m | 4 | 52x31x20 |
| W2000 | 2000 | 900 | 4.1:1 | 250 | 20 | 1.8x50x8m | 4 | 52x31x20 |
| W2500 | 2500 | 1100 | 5.1:1 | 275 | 42 | 2.0x50x8m | 4 | 54x33x21 |
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Yacht Windlass & Winch

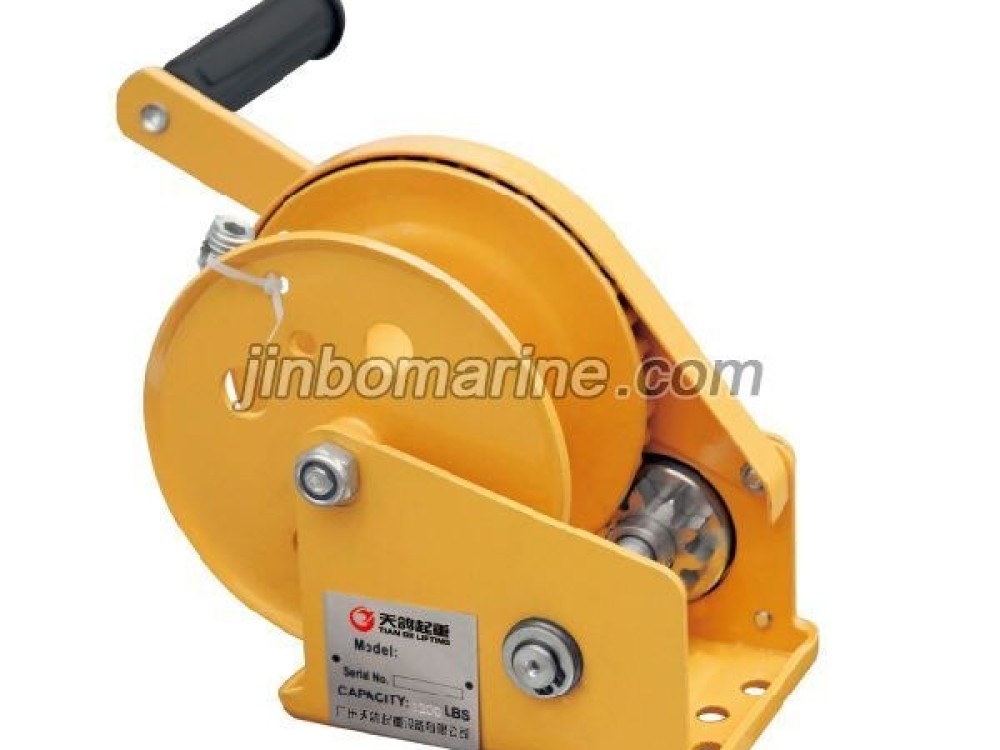

Boat Hand Winch
Boat Hand Winch Specification Model Rated pull (LBS/KG) Gear ratio Handle length(mm) ...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Yacht Windlass & Winch
Standard
EN
Material
Cast steel
Weight / Size
Boat Hand Winch Specification Model Rated pull (LBS/KG) Gear ratio ...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Yacht Windlass & Winch
Model / SKU
Boat-Hand-Winch
Standard
EN
Material
Cast steel
Weight / Size
Boat Hand Winch Specification Model Rated pull (LBS/KG) Gear ratio Handle length(mm) Drum-Hub dia(mm) Cable Size (mmxm) Box quantity Box size H600 600 270 3.1:1 165 16 4.2x6 6 59x26x16 H800 800 360 3.1:1 175 16 4.2x6 6 59x26x16 H1000 1000 450 4.1:1 200 18 4.5x10 6 60x27x18 H1200 1200 540 4.1:1 225 18 4.5x10 6 60x27x18 H1400 1400 630 4.1:1 225 18 4.8x10 6 61x27x19 H1600 1600 720 5.1:1 225 20 4.8x10 4 45x31x20 H1800 1800 810 4.1:1 250 20 4.8x10 4 52x31x20 H2000 2000 900 4.1:1 250 20 5x10 4 52x31x20 H2500 2500 1100 5.1:1 275 20 5x10 4 54x33x21 Model Rated pull (LBS/KG) Gear ratio Handle length(mm) Drum-Hub dia(mm) Color belt Size Box quantity Box size W600 600 270 3.1:1 165 16 1.0x50x6m 6 59x26x16 W800 800 360 3.1:1 175 16 1.0x50x6m 6 59x26x16 W1000 1000 450 4.1:1 200 18 1.5x50x8m 6 60x27x18 W1200 1200 540 4.1:1 225 18 1.4x50x8m 6 60x27x18 W1400 1400 630 4.1:1 225 18 1.6x50x8m 6 61x27x19 W1600 1600 720 5.1:1 225 20 1.6x50x8m 4 45x31x20 W1800 1800 810 4.1:1 250 20 1.8x50x8m 4 52x31x20 W2000 2000 900 4.1:1 250 20 1.8x50x8m 4 52x31x20 W2500 2500 1100 5.1:1 275 42 2.0x50x8m 4 54x33x21
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
