Brass Needle Valve is used to connect the copper tubing, control the flow of liquids or gas requiring close regulating. Made of brass rods and brass material except for the gland O" rings.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
JIS Needle Valve

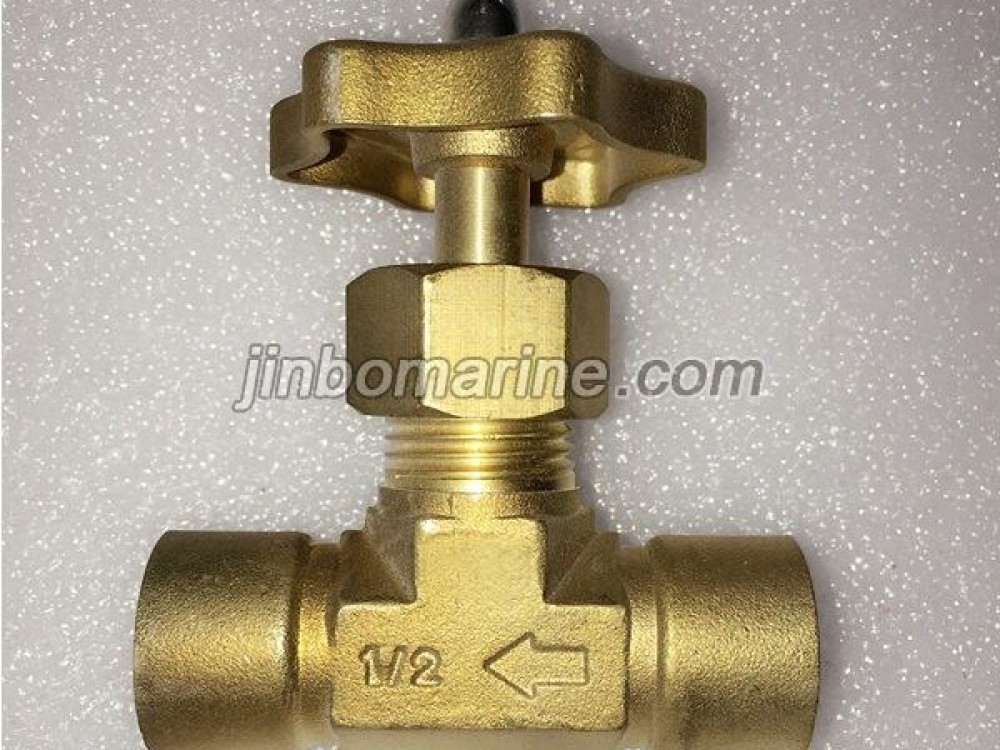

Brass Female Threaded Needle Valve
Brass Needle Valve is used to connect the copper tubing, control the flow of liquids or gas requiring close regulating. Made of brass rods and brass material except for the gland O" rings. Technical Specification: ...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
JIS Needle Valve
Standard
EN
Material
Brass
Weight / Size
5.88Mpa (60kgf/cm2) at 80℃ Main Size:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
JIS Needle Valve
Model / SKU
Brass-Female-Threaded-Needle-Valve
Standard
EN
Material
Brass
Weight / Size
5.88Mpa (60kgf/cm2) at 80℃ Main Size:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
China Brass Female Threaded Needle Valve:
Technical Specification:
1. Applicable temperature will be -20℃ to 100℃
2. Max Pressure: 5.88Mpa (60kgf/cm2) at 80℃
Main Size:
| IMPA | Nominal Size | Thread (D/D1) | Length | Height |
| 752151 | 1/8 | PF-1/8 | 47 | 37 |
| 752152 | 1/4 | PF-1/4 | 47 | 45 |
| 752153 | 3/8 | PF-3/8 | 47 | 50 |
| 752154 | 1/2 | PF-1/2 | 67 | 65 |
