Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Marine Generator

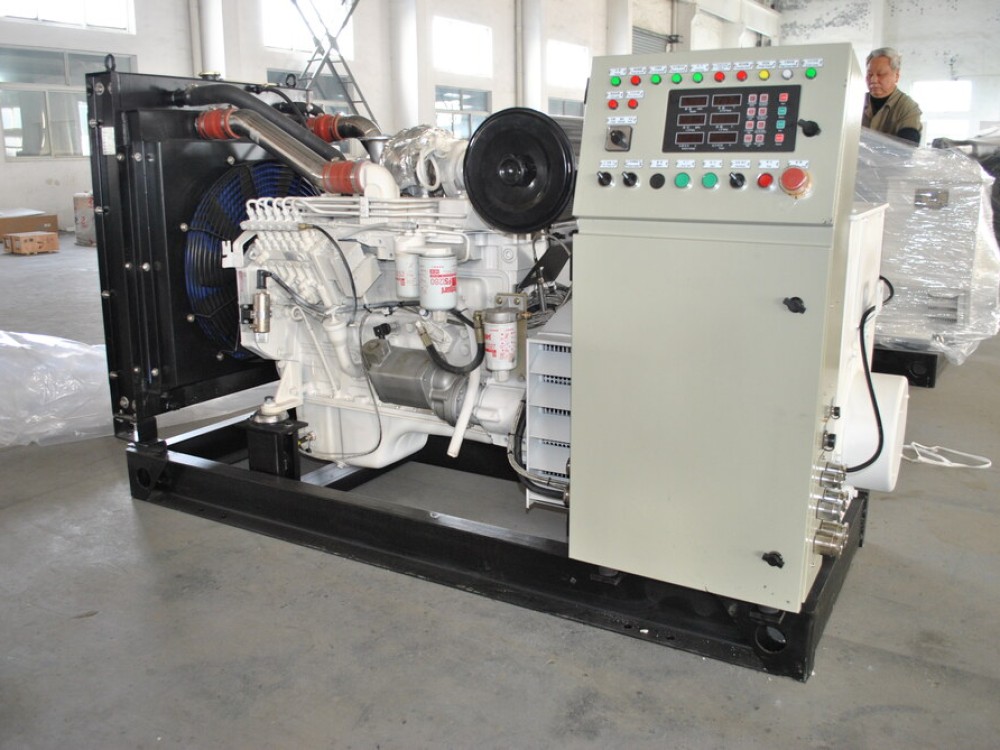

6BT5.9-GM83 , Cummins Emergency Generator

Cummins Emergency Generator: 1. Applicable to small and medium-sized rivers, lakes and coastal fishing boats, tugs, passenger ship, cargo ships, cruise ships, ferries and other kinds of ship type of emergency power...

ISO9001 Supplier Class Certificate Export Supply
6BT5.9-GM83 , Cummins Emergency Generator

Key Highlights

Category
Marine Generator
Standard
DIN
Weight / Size
Applicable to small and medium-sized rivers, lakes and coastal fishing b...
Certificate
CCS, BV, ABS, GL，LR, NK
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Generator
Model / SKU
CCFJ75Y-W-75KW-Cummins-Emergency-Generator
Standard
DIN
Weight / Size
Applicable to small and medium-sized rivers, lakes and coastal fishing boats, tugs, passenger ship, cargo ships, cruise ships, ferries and other kinds of ship type of emergency power supply.
Certificate
CCS, BV, ABS, GL，LR, NK
Warranty
12 Months unless specified otherwise
Origin
China

Cummins Emergency Generator:

1. Applicable to small and medium-sized rivers, lakes and coastal fishing boats, tugs, passenger ship, cargo ships, cruise ships, ferries and other kinds of ship type of emergency power supply.
2. Have the professional experience of Marine power, satisfy personalized customer requirements
3. During the installation process to provide professional application support and after-sales service
4. By CCS, BV, ABS, GL, classification society certification LR, NK, and many other countries
5. The cooling system of generator unit is a fan-water-radiator and the starting model is dual energy start

6. We can supply 1500 r/min, 50 Hz unit configuration, and we also can according to customer requirements to provide 1800 RPM, 60 Hz diesel generating sets

Engine:

4 B, 6 B, 6 C, 6L series diesel engines are adopt from Dongfeng cummins engine ( a sino-US joint venture company) , Chongqing cummins diesel engine N, K19, K38, K50 series diesel engine, with reasonable structure, excellent performance, easy maintenance and other significant characteristics, professional after-sales service network throughout the rest of the world, providing customers with 24-hour after-sales service and spare parts supply.

The Generator:

Optional Stanford, marathon, domestic well-known brands such as Siemens, Kang Fu ac synchronous generator, protection grade can provide IP23 or IP44
Generating set specifications Diesel Engine Specifications generator specifications Size
model Rated power Voltage/
frequency
Hz/v 		Model RPM Number
of Cylinders 		Diameter of
cylinder/Stroke(mm) 		displacement
(L) 		fuel
consumpation
(g/kw.h) 		Model L*W*H
（mm） 		Weight
（kg）
Kw KVA Stanford marathon
CCFJ30Y-W 30 37.5 50/400 4BTA3.9-GM47 1500 4L 102/120 3.9 210 UCM224C MP-H-30-4 1750*750*1280 950
CCFJ40Y-W 40 50 50/400 4BTA3.9-GM47 1500 4L 102/120 3.9 210 UCM224E MP-H-40-4 1810*750*1280 1000
CCFJ50Y-W 50 63 50/400 6BT5.9-GM83 1500 4L 102/120 5.9 206 UCM224F MP-H-50-4 2090*850*1280 1100
CCFJ64Y-W 64 80 50/400 6BT5.9-GM83 1500 6L 102/120 5.9 206 UCM224C MP-H-64-4 2110*850*1280 1370
CCFJ75Y-W 75 93.8 50/400 6BTAA5.9-GM115 1500 6L 102/120 5.9 206 UCM224D MP-H-75-4 2180*850*1280 1450
CCFJ90Y-W 90 113 50/400 6BTAA5.9-GM115 1500 6L 102/120 5.9 206 UCM224E MP-H-90-4 2200*850*1300 1500
CCFJ100Y-W 100 125 50/400 6BTAA5.9-GM115 1500 6L 102/120 5.9 206 UCM234E MP-H-100-4 2200*850*1300 1550
