CFP-BGM,WAB,ZH fan coil has new design, beautiful appearance, simple installation, convenient operation, low noise, small volume and save energy etc. which is suitable for medium and small sized navy, such as suppress smuggling boat, patrol boat and luxurious yacht etc.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Marine Air Conditioner

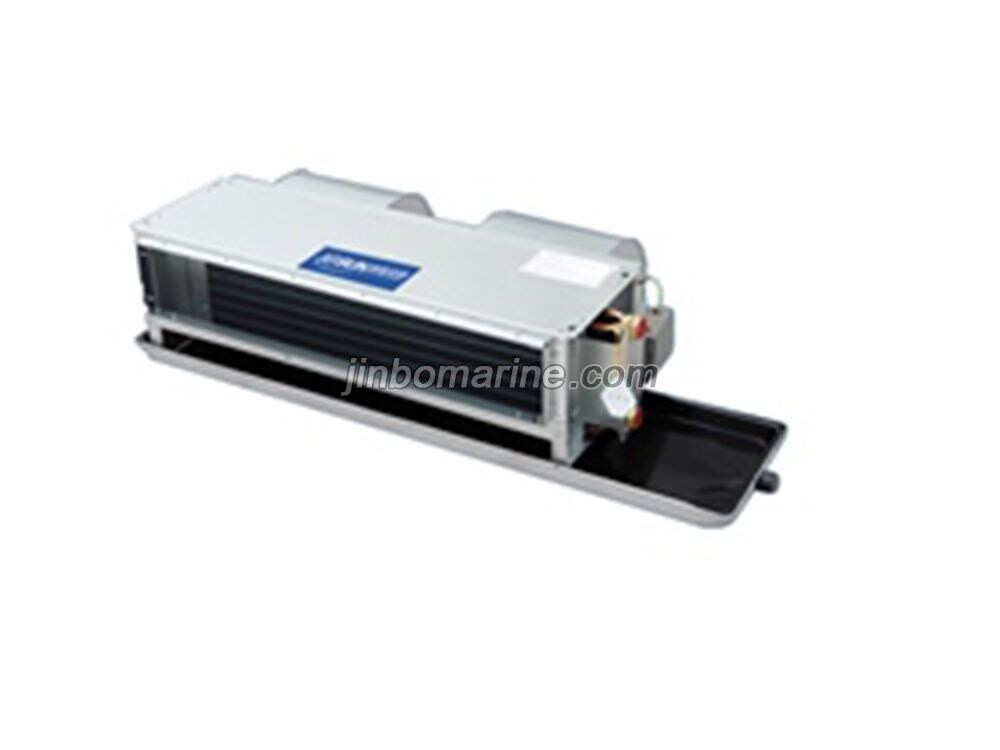

CFP-WAB Super Thin Horizontal Hidden Type Fan Coil
Descroption: CFP-BGM,WAB,ZH fan coil has new design, beautiful appearance, simple installation, convenient operation, low noise, small volume and save energy etc. which is suitable for medium and small siz...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Marine Air Conditioner
Standard
EN
Weight / Size
which is suitable for medium and small sized navy, such as suppress smug...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Marine Air Conditioner
Model / SKU
CFP-WAB-Super-Thin-Horizontal-Hidden-Type-Fan-Coil
Standard
EN
Weight / Size
which is suitable for medium and small sized navy, such as suppress smuggling boat, patrol boat and luxurious yacht etc.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Descroption:
Technical Data:
| Type | CFP-7.0WAB | CFP-10WAB | CFP-12WAB | CFP-16WAB | CFP-24WAB | CFP-30WAB | |
| Cooling capacity | Kw | 2 | 3 | 3.5 | 4.7 | 7 | 8.8 |
| Btu/hr | 7000 | 10000 | 12000 | 16000 | 24000 | 30000 | |
| Heating capacity | Kw | 2.2 | 3.3 | 3.85 | 5.17 | 7.7 | 9.7 |
| Btu/hr | 7500 | 11000 | 13000 | 17600 | 26000 | 33000 | |
| Air flow | high m3/h | 350 | 500 | 630 | 800 | 1400 | 1600 |
| mid m3/h | 300 | 400 | 505 | 640 | 1140 | 1280 | |
| low m3/h | 210 | 300 | 380 | 480 | 890 | 980 | |
| Water flow m3/h | 370 | 520 | 650 | 830 | 1400 | 1550 | |
| Diameter of Inlet/outlet | RC1/2 thread or DN 15 hose | RC3/4 thread or DN 20 hose | |||||
| Power supply | 220V 50Hz 1Φ | ||||||
| Total Power W | 40 | 40 | 40 | 70 | 135 | 145 | |
| Current A | 0.35 | 0.4 | 0.4 | 0.9 | 1.1 | 1.2 | |
| Dimension | L mm | 650 | 800 | 990 | 1090 | 1150 | 1360 |
| W mm | 350 | 350 | 350 | 350 | 350 | 350 | |
| H mm | 230 | 230 | 230 | 230 | 230 | 230 | |
| Weight kg | 15 | 17 | 19 | 21 | 28 | 32 | |
