Marine Air Conditioner

CLD-C Marine Air Conditioner

Description: CLD-C Marine low noise self-contained AC unit is air handling unit to treat room air directly. It is improved type of CLD-B series. The AC unit adopts special structure design and professional noise...

ISO9001 Supplier Class Certificate Export Supply
CLD-C Marine Air Conditioner

Key Highlights

Category
Marine Air Conditioner
Standard
EN
Material
Model CLD-5C CLD-6C CLD-7C CLD-8C CLD-10C CLD-12C CLD-15C CLD-20C Coolin...
Weight / Size
Model CLD-5C CLD-6C CLD-7C CLD-8C CLD-10C CLD-12C CLD-15C CLD-20C Coolin...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Air Conditioner
Model / SKU
CLD-C-Marine-Air-Conditioner
Standard
EN
Material
Model CLD-5C CLD-6C CLD-7C CLD-8C CLD-10C CLD-12C CLD-15C CLD-20C Cooling capacity KW 5 6 7 8 10 12 15 20 10 Kcal/h 4.3 5.1 6 6.8 8.6 10.3 12.9 17.2 Heating capacity KW 3 3.6 4.2 4.8 6 7.2 9 12 10 Kcal/h 2.5 3 3.6 4.1 5.1 6.2 7.7 10.3 Cooling medium R407C Heating type electric heating tube with stainless steel fin or light tube Power supply Main circuit AC　380V　3φ　50Hz/ AC　440V　3φ　60Hz Control circuit AC　220V　1φ　50Hz/ AC　220V　1φ　60Hz Protection　devices Freon high pressure、freon low pressure、water stop、super heat、 lack phase、overload、safety valve Compressor Type Hermetic scroll KW 1.3 1.6 1.9 2.2 2.5 2.9 3.3 5 Condenser Type horizontal shell & tube and can condense and receive liquid efficiently ℃ ≤32 m3/h 1.5 1.8 2.2 2.6 3 3.5 4.5 5.5 Kpa ≤30 mm DN25 DN25 DN25 DN25 DN25 DN25 DN32 DN32 Evaporator Copper tube with copper（Al）fin Fan Type low noise centrifugal fan Fan speed high、middle、low dB(A) ≤45 ≤46 ≤48 ≤50 ≤51 ≤52 ≤55 ≤59 Dimension mm 800 800 800 800 950 1050 1050 1350 mm 440 440 440 440 440 550 550 600 mm 1650 1650 1750 1750 1750 1840 1840 1900 Weight kg 215 215 250 250 270 290 310 360 Model CLD-5C CLD-6C CLD-7C CLD-8C CLD-10C CLD-12C CLD-15C CLD-20C L 800 800 800 800 950 1050 1050 1050 B 440 440 440 440 440 550 550 550 H 1650 1650 1750 1750 1750 1840 1840 1900 H1 1315 1315 1365 1365 1365 1455 1455 1515 n 4 4 4 4 4 4 4 4
Weight / Size
Model CLD-5C CLD-6C CLD-7C CLD-8C CLD-10C CLD-12C CLD-15C CLD-20C Cooling capacity KW 5 6 7 8 10 12 15 20 10 Kcal/h 4.3 5.1 6 6.8 8.6 10.3 12.9 17.2 Heating capacity KW 3 3.6 4.2 4.8 6 7.2 9 12 10 Kcal/h 2.5 3 3.6 4.1 5.1 6.2 7.7 10.3 Cooling medium R407C Heating type electric heating tube with stainless steel fin or light tube Power supply Main circuit AC　380V　3φ　50Hz/ AC　440V　3φ　60Hz Control circuit AC　220V　1φ　50Hz/ AC　220V　1φ　60Hz Protection　devices Freon high pressure、freon low pressure、water stop、super heat、 lack phase、overload、safety valve Compressor Type Hermetic scroll KW 1.3 1.6 1.9 2.2 2.5 2.9 3.3 5 Condenser Type horizontal shell & tube and can condense and receive liquid efficiently ℃ ≤32 m3/h 1.5 1.8 2.2 2.6 3 3.5 4.5 5.5 Kpa ≤30 mm DN25 DN25 DN25 DN25 DN25 DN25 DN32 DN32 Evaporator Copper tube with copper（Al）fin Fan Type low noise centrifugal fan Fan speed high、middle、low dB(A) ≤45 ≤46 ≤48 ≤50 ≤51 ≤52 ≤55 ≤59 Dimension mm 800 800 800 800 950 1050 1050 1350 mm 440 440 440 440 440 550 550 600 mm 1650 1650 1750 1750 1750 1840 1840 1900 Weight kg 215 215 250 250 270 290 310 360 Model CLD-5C CLD-6C CLD-7C CLD-8C CLD-10C CLD-12C CLD-15C CLD-20C L 800 800 800 800 950 1050 1050 1050 B 440 440 440 440 440 550 550 550 H 1650 1650 1750 1750 1750 1840 1840 1900 H1 1315 1315 1365 1365 1365 1455 1455 1515 n 4 4 4 4 4 4 4 4
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

Description:

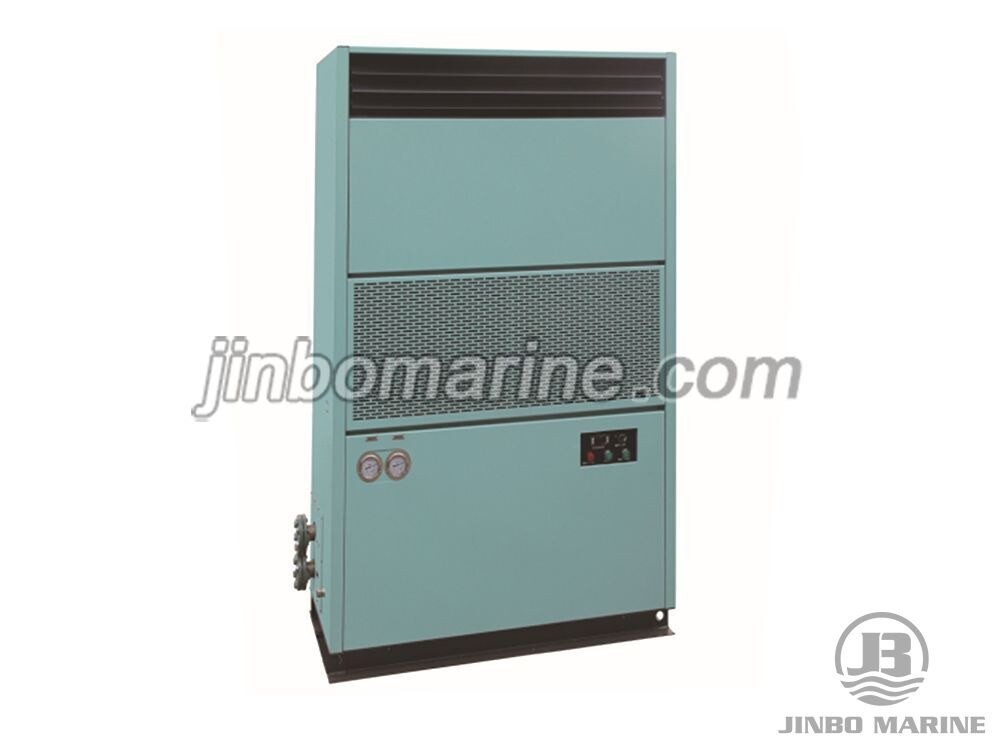

CLD-C Marine low noise self-contained AC unit is air handling unit to treat room air directly. It is improved type of CLD-B series. The AC unit adopts special structure design and professional noise reduction measure to reduce the noise of the unit. The units are suitable for the space with special requirement for noise, and can be widely used in different kinds of vessels, passenger ships, cargo ships and offshore platforms.

1. AC unit is mainly composed of compressor, condenser, evaporator, low noise centrifugal fan, etc.

2. AC unit adopts high-class hermetic scroll refrigeration compressor

3. AC unit adopts low noise forward multi-blades centrifugal fan

4. Main control elements adopt top class bands

5. Condenser adopts HAL77-2 or BFe30-1-1 efficient heat exchange tube with high anti-corrosion. Special structure design is adopted to prevent low refrigerant supply when ship swing

6. Improve unit structure, optimize system design, and reduce AC noise

7. AC unit adopts DDC control panel, operation become more convenient

8. Design, manufacture, inspection is conducted as per“CCS”rules and relevant standard of“vessel”

9. Product with special specification can be designed, manufactured as per customer requirement

Technical data:

Model CLD-5C CLD-6C CLD-7C CLD-8C CLD-10C CLD-12C CLD-15C CLD-20C
Cooling capacity KW 5 6 7 8 10 12 15 20
10 Kcal/h 4.3 5.1 6 6.8 8.6 10.3 12.9 17.2
Heating capacity KW 3 3.6 4.2 4.8 6 7.2 9 12
10 Kcal/h 2.5 3 3.6 4.1 5.1 6.2 7.7 10.3
Cooling medium R407C
Heating type electric heating tube with stainless steel
fin or light tube
Power supply Main circuit AC　380V　3φ　50Hz/ AC　440V　3φ　60Hz
Control circuit AC　220V　1φ　50Hz/ AC　220V　1φ　60Hz
Protection　devices Freon high pressure、freon low pressure、water stop、super heat、
lack phase、overload、safety valve
Compressor Type Hermetic scroll
KW 1.3 1.6 1.9 2.2 2.5 2.9 3.3 5
Condenser Type horizontal shell & tube and can condense and
receive liquid efficiently
℃ ≤32
m3/h 1.5 1.8 2.2 2.6 3 3.5 4.5 5.5
Kpa ≤30
mm DN25 DN25 DN25 DN25 DN25 DN25 DN32 DN32
Evaporator Copper tube with copper（Al）fin
Fan Type low noise centrifugal fan
Fan speed high、middle、low
dB(A) ≤45 ≤46 ≤48 ≤50 ≤51 ≤52 ≤55 ≤59
Dimension mm 800 800 800 800 950 1050 1050 1350
mm 440 440 440 440 440 550 550 600
mm 1650 1650 1750 1750 1750 1840 1840 1900
Weight kg 215 215 250 250 270 290 310 360
Model CLD-5C CLD-6C CLD-7C CLD-8C CLD-10C CLD-12C CLD-15C CLD-20C
L 800 800 800 800 950 1050 1050 1050
B 440 440 440 440 440 550 550 550
H 1650 1650 1750 1750 1750 1840 1840 1900
H1 1315 1315 1365 1365 1365 1455 1455 1515
n 4 4 4 4 4 4 4 4
