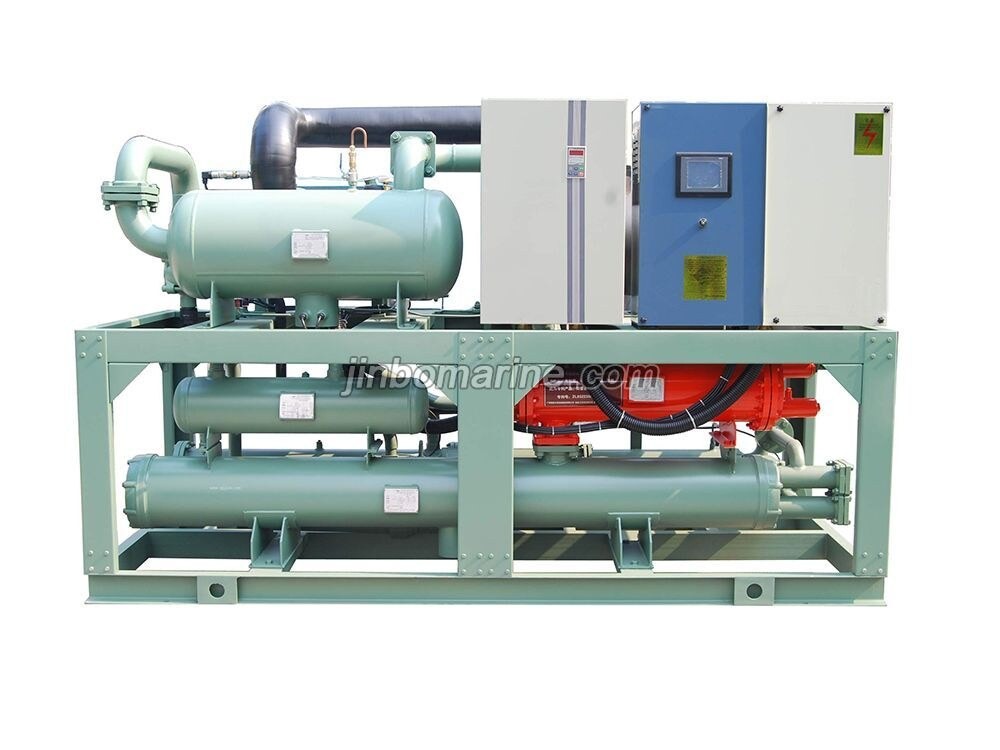

CLN-70K Marine Open Type Compressed Condensing Unit Marine open type compressed condensing unit are to provide refrigerant liquid for air conditioning system direct and device. The unit has the features of new-design, easy –operation, stable- working, safety and convenient-maintaining etc. They are widely used for all kinds of passenger ship, cargo ship, oil platform etc.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Marine Air Conditioner
CLN-70K Marine Open Type Compressed Condensing Unit
Description: CLN-70K Marine Open Type Compressed Condensing Unit Marine open type compressed condensing unit are to provide refrigerant liquid for air conditioning system direct and device. The unit has t...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Marine Air Conditioner
Standard
EN
Weight / Size
Item CLN-70K CLN-105K CLN-175K CLN-244K CLN-348K Cooling capacity KW 70 ...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Marine Air Conditioner
Model / SKU
CLN-70K-Marine-Open-Type-Compressed-Condensing-Unit
Standard
EN
Weight / Size
Item CLN-70K CLN-105K CLN-175K CLN-244K CLN-348K Cooling capacity KW 70 105 175 244 348 Cooling medium R22(R134a, R404A, R407C) Power supply main circuit AC380V 3P 50HZ/AC 440V 3P 60HZ control circuit AC220V 1P 50HZ/AC 220V 1P 60HZ Protection device High pressure, low pressure,oil pressure, water stop, lack phase, overload and safety valve Copressor Type Open type single-stage piston compressor Energy regulation % 0,33,66,100 or 0,25,50,75,100 Drive V-strap Motor output power 19 30 45 75 90 stage 4 type heretic air cooled basic mounted insullation and airproof F, IP56 Start methed Y-△direct Condensor type Horizontal sheel&tube water flow m3/h 22 35 48 65 100 water pressure loss kPa 30 45 55 60 70 weight kg 600 900 1300 1750 2000 Dimension:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Description:
Technical Data:
| Item | CLN-70K | CLN-105K | CLN-175K | CLN-244K | CLN-348K | ||
| Cooling capacity | KW | 70 | 105 | 175 | 244 | 348 | |
| Cooling medium | R22(R134a, R404A, R407C) | ||||||
| Power supply | main circuit | AC380V 3P 50HZ/AC 440V 3P 60HZ | |||||
| control circuit | AC220V 1P 50HZ/AC 220V 1P 60HZ | ||||||
| Protection device | High pressure, low pressure,oil pressure, water stop, lack phase, overload and safety valve | ||||||
| Copressor | Type | Open type single-stage piston compressor | |||||
| Energy regulation | % | 0,33,66,100 or 0,25,50,75,100 | |||||
| Drive | V-strap | ||||||
| Motor | output power | 19 | 30 | 45 | 75 | 90 | |
| stage | 4 | ||||||
| type | heretic air cooled basic mounted | ||||||
| insullation and airproof | F, IP56 | ||||||
| Start methed | Y-△direct | ||||||
| Condensor | type | Horizontal sheel&tube | |||||
| water flow | m3/h | 22 | 35 | 48 | 65 | 100 | |
| water pressure loss | kPa | 30 | 45 | 55 | 60 | 70 | |
| weight | kg | 600 | 900 | 1300 | 1750 | 2000 | |
Dimension:
| Model | CLN-70K | CLN-105K | CLN-175K | CLN-244K | CLN-348K |
| L | 1540 | 2150 | 2150 | 2150 | 2740 |
| W | 860 | 860 | 990 | 1075 | 1130 |
| H | 1290 | 1290 | 2070 | 1855 | 1750 |
