CLZ Type marine packaged refrigerator mainly consist of refrigeration compressor, marine high-efficient condenser, liquid supply solenoid valve, thermostatic expansion vale, high/low temperature unit cooler, electrical control cabinet, instrument and valves, etc. It is ready to run after the relevant pipe is connected and power is on, it adjusts the temperature according to the requirement of retaining food.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Marine Air Conditioner

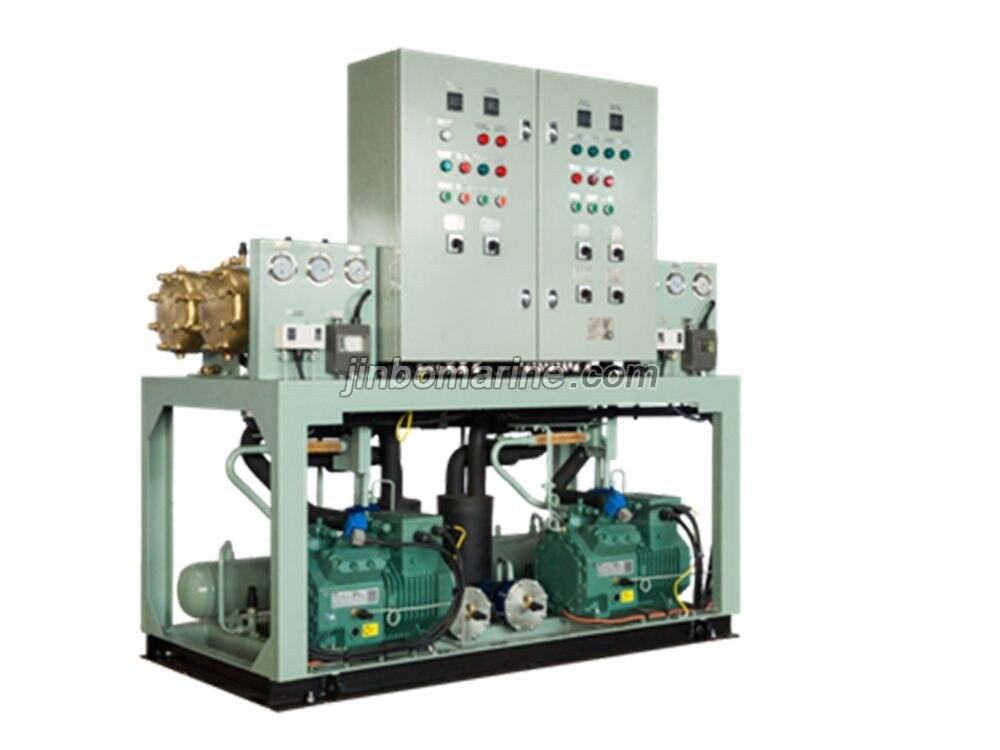

CLZ Type Marine Packaged Refrigerator
Description: CLZ Type marine packaged refrigerator mainly consist of refrigeration compressor, marine high-efficient condenser, liquid supply solenoid valve, thermostatic expansion vale, high/low temperature uni...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Marine Air Conditioner
Standard
DIN
Weight / Size
Drop Kpa ≤30 ≤30 ≤30 ≤30 ≤30 ≤30 ≤30 ≤30 ≤30 Protection HV,LV,Water Pres...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Marine Air Conditioner
Model / SKU
CLZ-Type-Marine-Packaged-Refrigerator
Standard
DIN
Weight / Size
Drop Kpa ≤30 ≤30 ≤30 ≤30 ≤30 ≤30 ≤30 ≤30 ≤30 Protection HV,LV,Water Pressure,Overload,Over-Temp, Safety Plug, Power Supply Faults Power supply AC380V 3PH 50HZ/AC440V 3PH 60HZ Weight 350 400 450 500 600 700 800 900 1000 Type CLZ-4.5(III) CLZ-5.0(III) CLZ-6.0(III) CLZ-7.5(III) CLZ-8.0(III) CLZ-9.0(III) CLZ-9.5(III) CLZ-12.5(III) CLZ-13.5(III) Cooling capacity KW 4.5 5 6 7.5 8 9 9.5 12.5 13.5 Adjustable Range / / / / / / / / / Compressor Motor power KW 3 4 4 5.5 5.5 5.5 7.5 9.5 11 Regenerating medium R22(R134a,R404A,R407C Regenerating medium ≤32℃ Sea water/≤36℃ Fresh water Cooling water medium 4.5 5 6 7.5 8 9 9.5 12 13.5 Cooling water flow m3/h Cooling water press.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Description:
Technical Data:
| Type | CLZ-1(II) | CLZ-1.5(II) | CLZ-2(II) | CLZ-2.5(II) | CLZ-2.5(II) | CLZ-3(II) | CLZ-4.5(II) | CLZ-5(II) | CLZ-6(II) | |
| Cooling capacity | KW | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4.5 | 5 | 6 |
| Adjustable Range | / | / | / | / | / | / | / | / | / | |
| Compressor Motor power | KW | 0.55 | 1.1 | 1.1 | 1.3 | 2.2 | 2.2 | 3 | 4 | 4 |
| Regenerating medium | R22(R134a,R404A,R407C | |||||||||
| Regenerating medium | ≤32℃ Sea water/≤36℃ Fresh water | |||||||||
| Cooling water medium | 1 | 1.5 | 1.5 | 2 | 3 | 3.5 | 4.5 | 5 | 6 | |
| Cooling water flow | m3/h | |||||||||
| Cooling water press. Drop | Kpa | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 |
| Protection | HV,LV,Water Pressure,Overload,Over-Temp, Safety Plug, Power Supply Faults | |||||||||
| Power supply | AC380V 3PH 50HZ/AC440V 3PH 60HZ | |||||||||
| Weight | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1000 | |
| Type | CLZ-4.5(III) | CLZ-5.0(III) | CLZ-6.0(III) | CLZ-7.5(III) | CLZ-8.0(III) | CLZ-9.0(III) | CLZ-9.5(III) | CLZ-12.5(III) | CLZ-13.5(III) | |
| Cooling capacity | KW | 4.5 | 5 | 6 | 7.5 | 8 | 9 | 9.5 | 12.5 | 13.5 |
| Adjustable Range | / | / | / | / | / | / | / | / | / | |
| Compressor Motor power | KW | 3 | 4 | 4 | 5.5 | 5.5 | 5.5 | 7.5 | 9.5 | 11 |
| Regenerating medium | R22(R134a,R404A,R407C | |||||||||
| Regenerating medium | ≤32℃ Sea water/≤36℃ Fresh water | |||||||||
| Cooling water medium | 4.5 | 5 | 6 | 7.5 | 8 | 9 | 9.5 | 12 | 13.5 | |
| Cooling water flow | m3/h | |||||||||
| Cooling water press. Drop | Kpa | ≤30 | ≤30 | ≤30 | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 |
| Protection | HV,LV,Water Pressure,Overload,Over-Temp, Safety Plug, Power Supply Faults | |||||||||
| Power supply | AC380V 3PH 50HZ/AC440V 3PH 60HZ | |||||||||
| Weight | 800 | 900 | 1000 | 1080 | 1150 | 1180 | 1250 | 1350 | 1400 | |
Dimension:
| Type | L | H | n1xL1 | L2 | n3xB1 | B | Φ1 | n2-Φ2 | DN |
| CLZ-4.5(III) | 1800 | 1300 | 3x560 | 60 | 1x615 | 650 | 19 | 8-Φ17 | 32 |
| CLZ-5.0(III) | 1800 | 1300 | 3x560 | 60 | 1x615 | 650 | 19 | 8-Φ17 | 32 |
| CLZ-6.0(III) | 1800 | 1300 | 3x560 | 60 | 1x615 | 650 | 19 | 8-Φ17 | 32 |
| CLZ-7.5(III) | 1800 | 1500 | 3x560 | 60 | 1x615 | 650 | 22 | 8-Φ17 | 32 |
| CLZ-8.0(III) | 1800 | 1500 | 3x560 | 60 | 1x615 | 650 | 22 | 8-Φ17 | 32 |
| CLZ-9.0(III) | 2000 | 1700 | 3x600 | 100 | 1x765 | 800 | 22 | 8-Φ17 | 40 |
| CLZ-9.5(III) | 2000 | 1700 | 3x600 | 100 | 1x765 | 800 | 22 | 8-Φ17 | 40 |
| CLZ-12.5(III) | 2000 | 1700 | 3x600 | 100 | 1x765 | 800 | 22 | 8-Φ17 | 40 |
| CLZ-13.5(III) | 2000 | 1700 | 3x600 | 100 | 1x765 | 800 | 22 | 8-Φ17 | 40 |
