Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Electric Heater

CM-105AS Marinea Ice Flaking Machine

CM-105AS Marinea Ice Flaking Machine Product introduction： 1. The fast ice, no environmental protection, energy efficient, quiet operation; 2. The compressor with a powerful, strong and f...

ISO9001 Supplier Class Certificate Export Supply
CM-105AS Marinea Ice Flaking Machine

Key Highlights

Category
Electric Heater
Standard
EN
Material
Stainless steel 304
Weight / Size
Model  Dimension(mm) Capacity(kg/24h) Power (kw) Volts(v) HZ N/W(kg) CM-...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Electric Heater
Model / SKU
CM-105AS-Marinea-Ice-Flaking-Machine
Standard
EN
Material
Stainless steel 304
Weight / Size
Model  Dimension(mm) Capacity(kg/24h) Power (kw) Volts(v) HZ N/W(kg) CM-85AS 500X555X932 36 0.35 220V-1P 50/60Hz 56 CM-105AS 500X555X932 45 0.62 220V-1P 50/60Hz 58 CM-165AS 660X676X978 75 0.44 220V-1P 50/60Hz 75 CM-215AS 660X676X978 105 0.78 220V-1P 50/60Hz 80
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

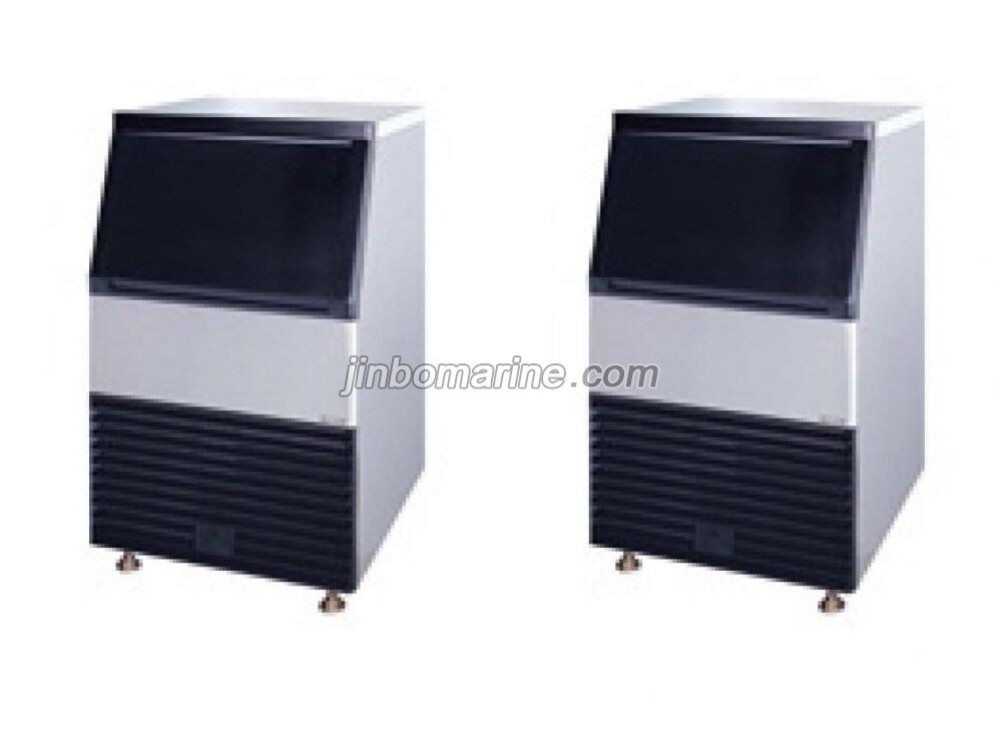

CM-105AS Marinea Ice Flaking Machine
Product introduction：

1. The fast ice, no environmental protection, energy efficient, quiet operation;

2. The compressor with a powerful, strong and fast ice making;

3. The unique design of energy efficiency, energy efficient, convenient;

4. The stainless steel cabinet design, beautiful appearance, durable rust;

5. The adjustable foot, adjustable range of positive and negative 30mm.

Technical data:

Model Dimension(mm) Capacity(kg/24h) Power (kw) Volts(v) HZ N/W(kg)
CM-85AS 500X555X932 36 0.35 220V-1P 50/60Hz 56
CM-105AS 500X555X932 45 0.62 220V-1P 50/60Hz 58
CM-165AS 660X676X978 75 0.44 220V-1P 50/60Hz 75
CM-215AS 660X676X978 105 0.78 220V-1P 50/60Hz 80
