Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Sensor

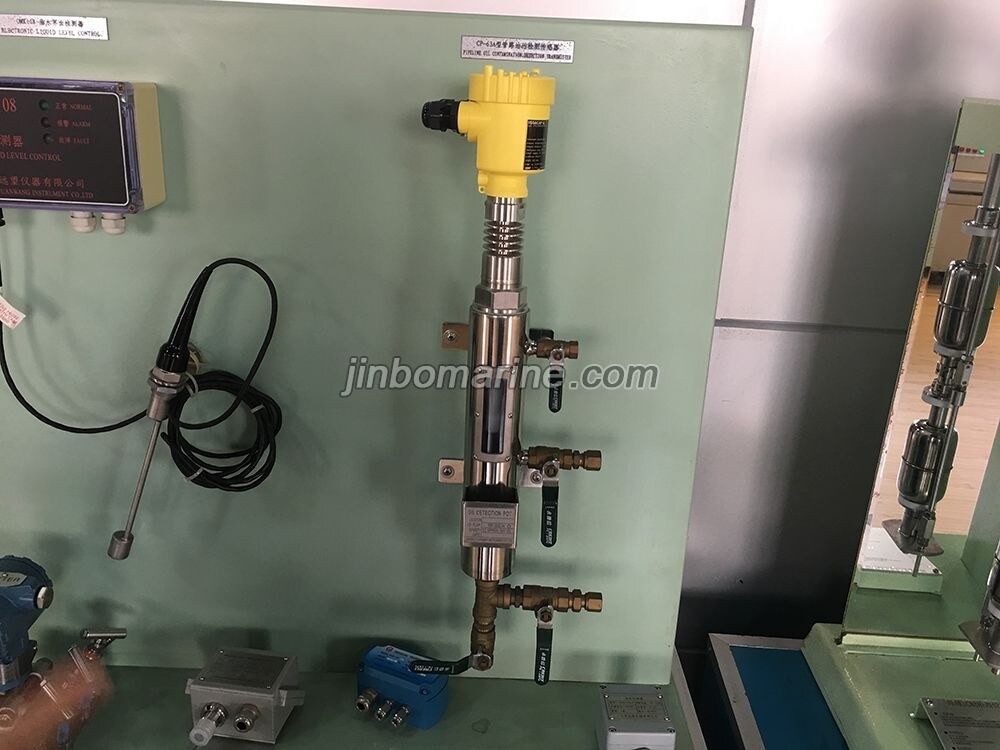

CP-63A Pipeline Oil Contamination Detection Transmitter

Product Description: This system consists of oil contamination detection pot,capacitive alarm switch,ball valve and pipeline unit.This device is installed in the cooling water line system of ship,use for detect oil...

ISO9001 Supplier Class Certificate Export Supply
CP-63A Pipeline Oil Contamination Detection Transmitter

Key Highlights

Category
Sensor
Standard
EN
Certificate
CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Sensor
Model / SKU
CP-63A-Pipeline-Oil-Contamination-Detection-Transmitter
Standard
EN
Certificate
CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
Warranty
12 Months unless specified otherwise
Origin
China

Product Description:

This system consists of oil contamination detection pot,capacitive alarm switch,ball valve and pipeline unit.This device is installed in the cooling water line system of ship,use for detect oil in cooling water,capactive alarm switch install on the upper part of the oil contamination detection pot, its detection head was located in the rest of liquid exit, near to the stop valve. When throttle slice was remain the throttle position, the water inside of pipe will enter into the detection pot, if the water contain oil contaminatioin, it will float on the inspection head of alarm switch, the alarm switch will output oil contamination alarm signal.

Main Technical Specification:

Maximum pressure:0.5Mpa

Maximum temperature: 150 centigrade, 200 centigrade

Flow: 100 to 300 L/hour

Sensitivity Approximate 50ml oil

Power supply: AC 110V/220V

Output: relay output (DPDT)

Principle Pipe diagram:
