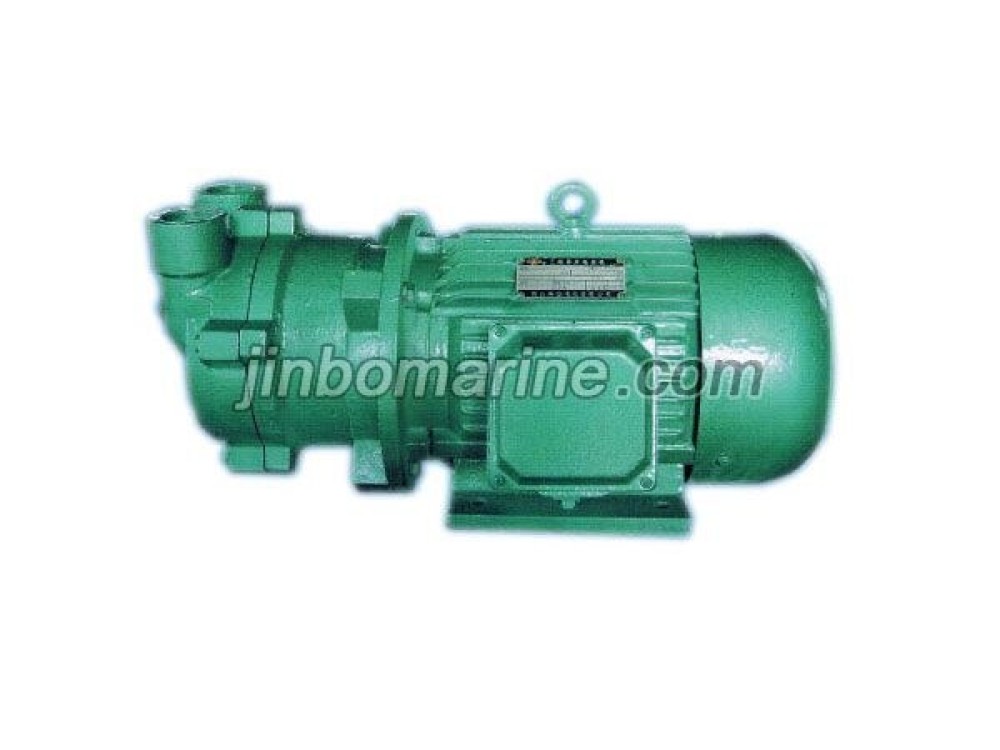

CSK series marine water ring vacuum pump is used to various occasions of ship that need sucking vacuum,and it is widely used in sea water desalinate device,water drawing pump of big water pump and also can be used as sucking vacuum of pipeline system or device system, etc.The pump possesses the characteristic that tight and reasonable structure,stable and reliable working,it can satisfy long-term continuously use at sea water work circumstances.During the operation,the gas is compressed is othermally,when exact corrosive or explosive gasses,danger will not occur,so the pump is used even widely in sucking passes that in the oil carrier and chemistry cabin, but the vacuum pump must provide prevent burst motor.
| Main Technical Data | ||||
| Model | Max displacement m³/h | Motor power KW | Speed r/min | Supply water quantity L/min |
| CSK-9 | 9 | 0.75 | 2820 | 2 |
| CSK-24 | 24 | 1.5 | 2840 | 3 |
| CSK-48 | 48 | 2.2 | 2840 | 5 |
| CSK-60 | 60 | 3 | 2880 | 8 |
| CSK-80 | 80 | 3 | 2880 | 9 |
| CSK-90 | 90 | 4 | 2890 | 10 |
| CSK-110 | 110 | 4 | 2890 | 10 |
| CSK-165 | 165 | 4 | 1440 | 12 |
| CSK-230 | 230 | 5.5 | 1440 | 15 |
| CSK-280 | 280 | 7.5 | 1440 | 20 |
| CSK-400 | 400 | 11 | 1460 | 30 |
| CSK-500 | 500 | 15 | 1460 | 40 |
| CSK-720 | 720 | 22 | 970 | 50 |
| CSK-1500 | 1500 | 45 | 980 | 110 |
| Alao have bigger pumps, pls contact us for more information. | ||||
