Models: CVF-30/30
Type: V type, air cooled, two stage compression piston
Displacement: 30m3 / h
The rated pressure: 3.0 MPa
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Medium Pressure Air Cooled Marine Air Compressor

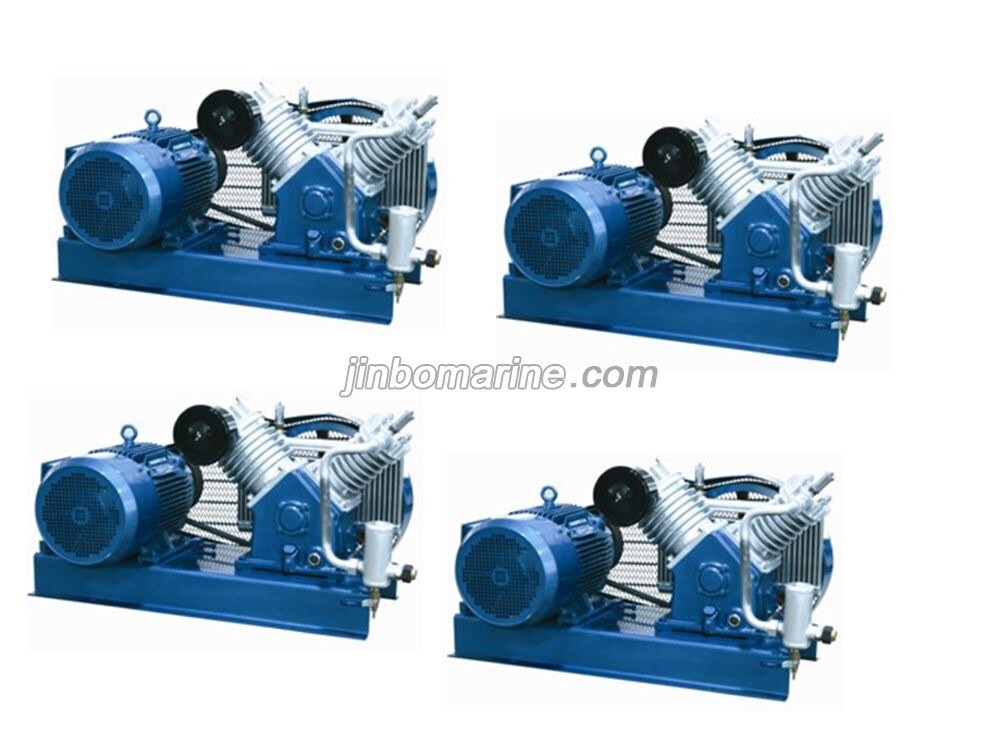

CVF-30/30 Marine Medium Pressure Air Compressor
Models: CVF-30/30 Type: V type, air cooled, two stage compression piston Displacement: 30m3 / h The rated pressure: 3.0 MPa Product features With highly efficient, low noise, smooth operat...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Medium Pressure Air Cooled Marine Air Compressor
Standard
DIN
Weight / Size
Specification Model Displacement Specified Pressure Rotating Speed Motor...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Medium Pressure Air Cooled Marine Air Compressor
Model / SKU
CVF-30-30-Marine-Medium-Pressure-Air-Compressor
Standard
DIN
Weight / Size
Specification Model Displacement Specified Pressure Rotating Speed Motor Power Dimension（L×W×H） Weight m3/h m3/ min MPa r/min kW HP mm kg CVF-30/30 30 0.5 3.0 500 7.5 10 1100×650×580 275
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
China CVF-30/30 Marine Medium Pressure Air Compressor:
Product features
With highly efficient, low noise, smooth operation
Apply to ship host and all kinds of Marine diesel engine start, can also be used to start or braking of hydropower equipment, blow molding and rubber products, pressure vessel inspection, hyperbaric oxygen chamber, etc. It can also be for traffic construction and other industries to provide medium voltage source. According to the needs of users of products can provide the following functions
Two main for the functions of each control, temperature control, inlet pressure controller, exhaust outlet high pressure hose.
Specification
| Model | Displacement | Specified Pressure | Rotating Speed | Motor Power | Dimension（L×W×H） | Weight | ||
| m3/h | m3/ min | MPa | r/min | kW | HP | mm | kg | |
| CVF-30/30 | 30 | 0.5 | 3.0 | 500 | 7.5 | 10 | 1100×650×580 | 275 |
