Medium Pressure Air Cooled Marine Air Compressor

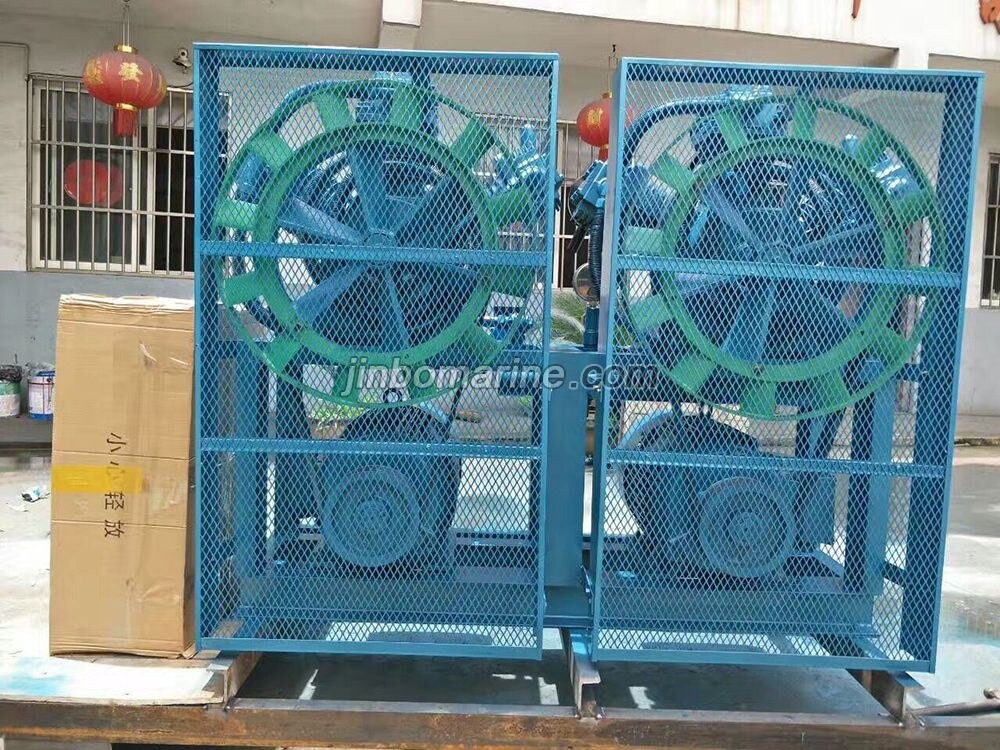

CWF-180/30 Piston Type Medium Pressure Marine Air Compressor

The common base is equipped with an air water separator, a pressure controller, and a battery discharge valve. It can be equipped with temperature control device, shock absorber outlet and exhaust hose. The fully co...

ISO9001 Supplier Class Certificate Export Supply

CWF-180/30 Piston Type Medium Pressure Marine Air Compressor

Key HighlightsCategory
Medium Pressure Air Cooled Marine Air Compressor
Standard
DIN
Weight / Size
Main Specification Model Type Displacement capacity Rated pressure Rotat...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

China CWF-180/30 Piston Type Medium Pressure Marine Air Compressor:

The common base is equipped with an air water separator, a pressure controller, and a battery discharge valve.
It can be equipped with temperature control device, shock absorber outlet and exhaust hose.

The fully controlled unit is equipped with wall hanging electronic control box, which can realize automatic unloading, automatic start, automatic stop, overload of motor, automatic alarm, high temperature and stop function.

Main Specification

Model	Type	Displacement capacity		Rated pressure	Rotate speed	Motor power	Weight	Overall size
		m3/h	m3/min	Mpa	r/min	KW	Kg	mm
CWF-180/30	Three cylinders.	180	3.0	3.0	770	18.5	750	1850x850x1350
	Air-cooled
	Second stage compression.
