CYBW series marine air pump is the oil-free self lubricating sliding-vane air pump,which has the features of small size,light weight,energy-saving and clean exhausted air with no oil pollution,etc.It is designed specially as the auxiliary equipment for marine sanitary sewage disposal system.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Vacuum Pump
CYBW Series Marine Air Pump
CYBW series marine air pump General description CYBW series marine air pump is the oil-free self lubricating sliding-vane air pump,which has the features of small size,light weight,energy-saving and clean exh...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Vacuum Pump
Standard
DIN
Material
Cast iron pump cast
Weight / Size
CYBW series marine air pump General description CYBW series marine air p...
Certificate
CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Vacuum Pump
Model / SKU
CYBW-Series-Marine-Air-Pump
Standard
DIN
Material
Cast iron pump cast
Weight / Size
CYBW series marine air pump General description CYBW series marine air pump is the oil-free self lubricating sliding-vane air pump,which has the features of small size,light weight,energy-saving and clean exhausted air with no oil pollution,etc.It is designed specially as the auxiliary equipment for marine sanitary sewage disposal system.
Certificate
CCS
Warranty
12 Months unless specified otherwise
Origin
China

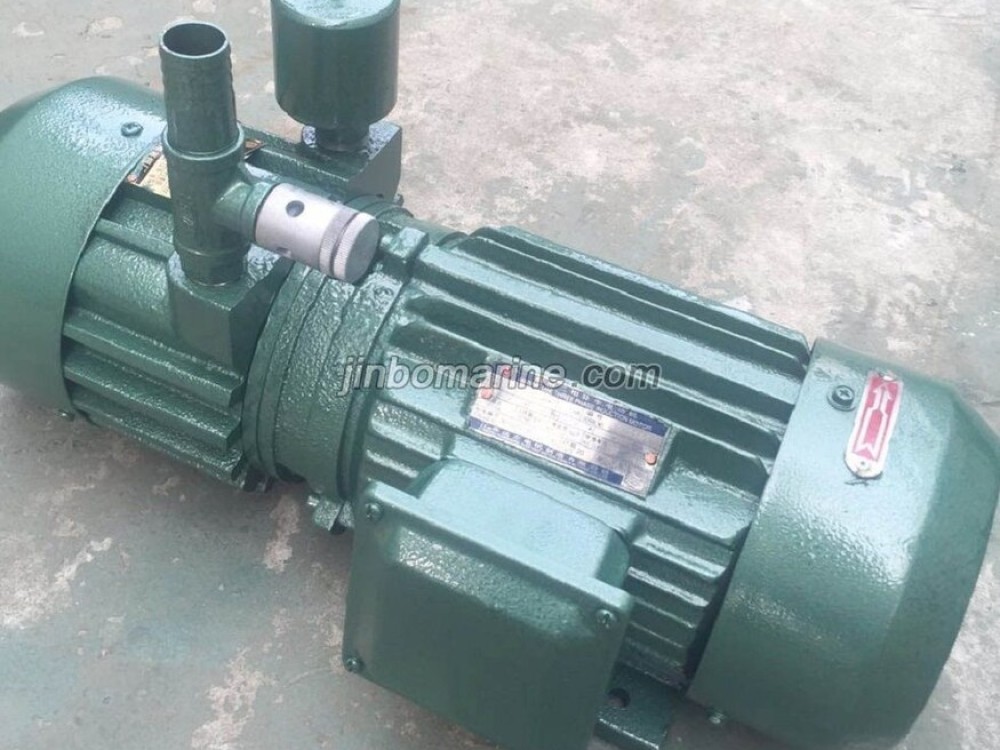

CYBW series marine air pump
General description
Model Explanation
For the Model CYBW-25
C stand for Marine pump
Y stand for Air pump
B stand for Sliding-vane
W stand for oil-less self-lubricating
25 stand for air flow(m3/h)
Performance parameter
| Model | flow rate | pressure | Motor power | Inlet pipe diameter | outlet pipe diameter | ||
| Q(m3/h) | (Kpa) | (kw) | (mm) | (mm) | |||
| CYBW-6 | 6 | 60 | 0.25 | 16 | 16 | ||
| CYBW-10 | 10 | 60 | 0.37 | 16 | 16 | ||
| CYBW-15 | 15 | 60 | 0.55 | 20 | 20 | ||
| CYBW-20 | 20 | 60 | 0.75 | 20 | 20 | ||
| CYBW-25 | 25 | 60 | 1.1 | 27 | 27 | ||
| CYBW-40 | 40 | 60 | 1.5 | 27 | 27 | ||
