Medium Pressure Air Cooled Marine Air Compressor

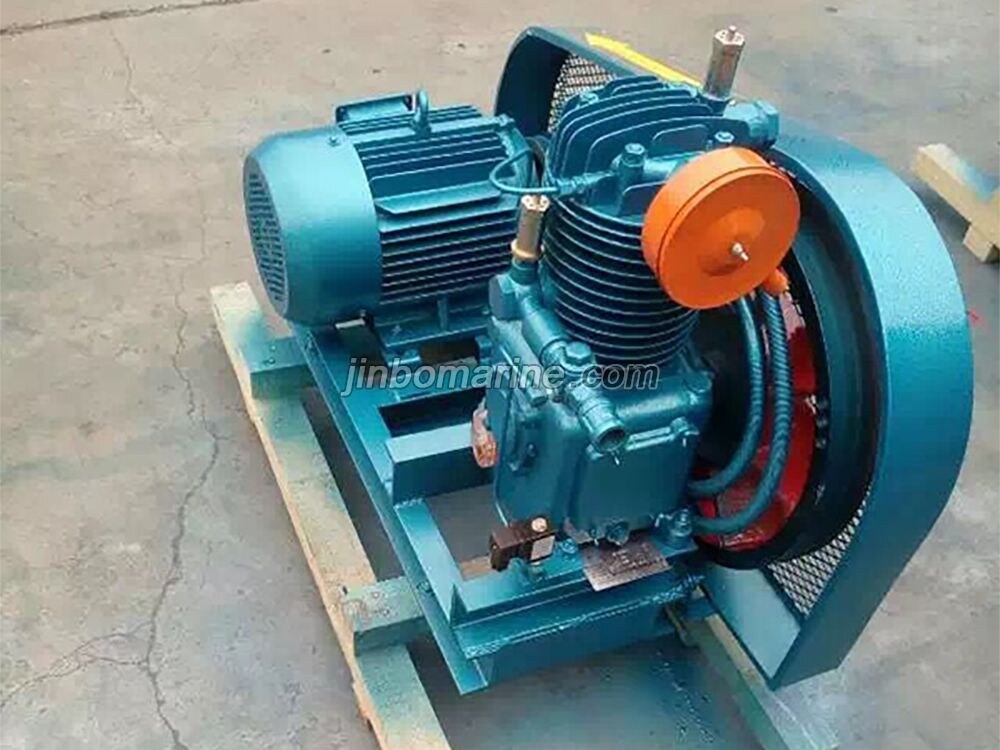

CZ-10/30 Medium Pressure Air cooled Marine Air Compressor

Type: Belt driven,piston. High efficiency,Light weight, Small volume, Low noise and reliable running. Discharge capacity: 10.0m3/h. Discharge pressure: 3.0 MPa. Products with manual/automatic shutdown, starting, unlo...

ISO9001 Supplier Class Certificate Export Supply
CZ-10/30 Medium Pressure Air cooled Marine Air Compressor

Key Highlights

Category
Medium Pressure Air Cooled Marine Air Compressor
Standard
DIN
Weight / Size
High efficiency,Light weight, Small volume, Low noise and reliable runni...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Medium Pressure Air Cooled Marine Air Compressor
Model / SKU
CZ-10-30-Medium-Pressure-Air-cooled-Marine-Air-Compressor
Standard
DIN
Weight / Size
High efficiency,Light weight, Small volume, Low noise and reliable running.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

China CZ-10/30 Medium Pressure Air cooled Marine Air Compressor:

Type: Belt driven,piston.
High efficiency,Light weight, Small volume, Low noise and reliable running.
Discharge capacity: 10.0m3/h.
Discharge pressure: 3.0 MPa.
Products with manual/automatic shutdown, starting, unloading and pressure relief.

Mainly used for starting the main engine of ships.

Specification

Model Type Displacement capacity Specified Pressure Rotating Speed Motor Power Weight Overrall Size (L*W*H)
m3/h m3/min Mpa r/min KW Kg mm
CZ-20/30 Vertical two stage compression 20 0.33 3.0 1000 5.5 210 970*490*710 Belt unit 1130*510*710 Water cooled unit
CZ-10/30 10 0.167 500 3.0
Applicable to less than 0.32 cubic meters of air bottle
