Marine & Offshore Equipment Datasheet
Product Datasheet

Medium Pressure Air Cooled Marine Air Compressor

CZ-10/30FZK Marine Emergency Air Compressor

Model: CZ-10/30F Type: single, air-cooled, secondary differential piston Displacement: 10 m3 / h The rated pressure: 3.0 MPa The air compressor host and CZ-20/30FZK general marine air compressor series products. ...

ISO9001 Supplier Class Certificate Export Supply
CZ-10/30FZK Marine Emergency Air Compressor

Key Highlights

Category
Medium Pressure Air Cooled Marine Air Compressor
Standard
EN
Weight / Size
Specification Model Displacement Specified Pressure Rotating Speed Motor...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Medium Pressure Air Cooled Marine Air Compressor
Model / SKU
CZ-10-30FZK-Marine-Emergency-Air-Compressor
Standard
EN
Weight / Size
Specification Model Displacement Specified Pressure Rotating Speed Motor Power Dimension（L×W×H） Weight m3/h m3/ min MPa r/min kW HP mm kg CZ-10/30FZK 10 0.17 3.0 500 3 4 970×480×750 175
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

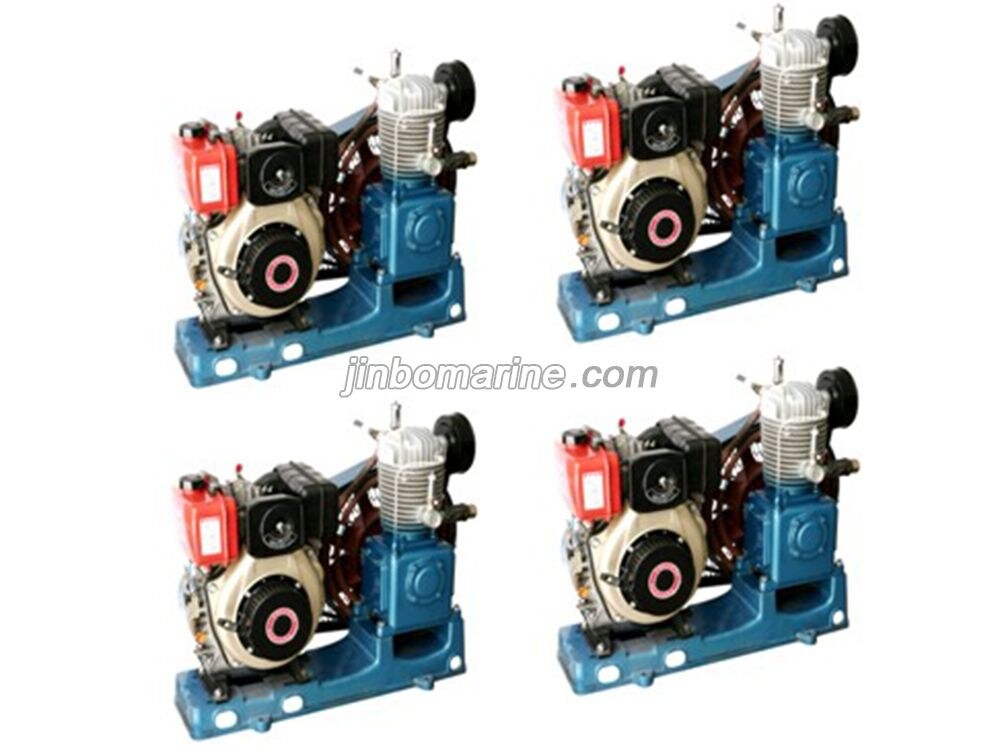

China CZ-10/30FZK Marine Emergency Air Compressor:

Model: CZ-10/30F
Type: single, air-cooled, secondary differential piston
Displacement: 10 m3 / h
The rated pressure: 3.0 MPa

The air compressor host and CZ-20/30FZK general marine air compressor series products.

Products with a Marine air-cooled diesel engine, with the hand to pull the centrifugal clutch starting, easy to operate.

Products are especially suitable for the ship can reliable operation in emergency situations, is to ensure that the necessary for safe navigation of the ship.

Specification

Model Displacement Specified Pressure Rotating Speed Motor Power Dimension（L×W×H） Weight
m3/h m3/ min MPa r/min kW HP mm kg
CZ-10/30FZK 10 0.17 3.0 500 3 4 970×480×750 175
