Marine Pressure Gauge

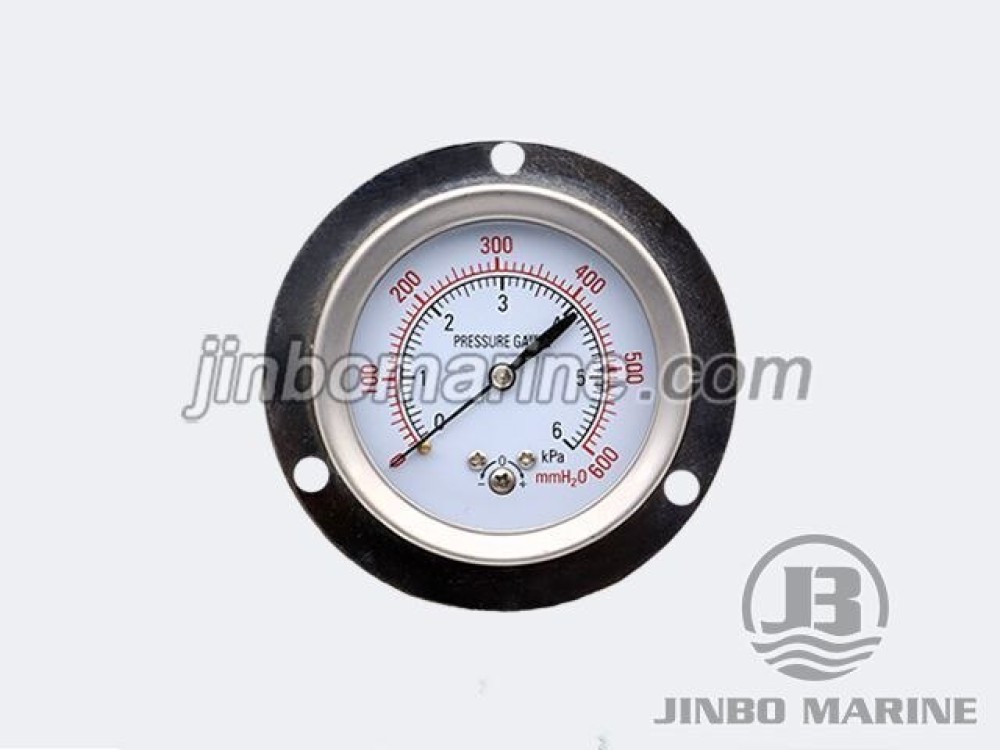

Capsule Pressure Gauge
Application: Used in Hydraulic and Pneumatic Systems, Compressors, Regulator and industry machine, and suitable for fluid medium or Gaseous which does not clog connection port or corrode Stainless steel. It can use...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Marine Pressure Gauge
Standard
DIN
Material
Used in Hydraulic and Pneumatic Systems, Compressors, Regulator and indu...
Weight / Size
Diameter About 60mm Range of measurement All specifications Size of cont...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Marine Pressure Gauge
Model / SKU
Capsule-Pressure-Gauge
Standard
DIN
Material
Used in Hydraulic and Pneumatic Systems, Compressors, Regulator and industry machine, and suitable for fluid medium or Gaseous which does not clog connection port or corrode Stainless steel.
Weight / Size
Diameter About 60mm Range of measurement All specifications Size of contact M14*1.5 Installing form Axial direction Material Copper(Contact) ;
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Application:
60mm Capsule Pressure Gauge Specification:
| Diameter | About 60mm |
| Range of measurement | All specifications |
| Size of contact | M14*1.5 |
| Installing form | Axial direction |
| Material | Copper(Contact) ; Carbon steel(Shell) |
65mm Ordinary Type Capsule Pressure Gauge Specification:
| Outer diameter | 65MM |
| Testing pressure range | -100Kpa~0 to 0~100Kpa |
| Accuracy | Level 1.5；Level 2.5 |
| Sensitive element | chrome-plated carbon steel |
| Case material | steel |
| Operating environment | -25~55℃, relative humidity≤85% |
| Temperature effect | ≤0.4%/10℃ |
75mm Ordinary Type Capsule Pressure Gauge Specification:
| Outer diameter | 75MM |
| Testing pressure range | -100Kpa~0 to 0~100Kpa |
| Accuracy | Level 1.5；Level 2.5 |
| Sensitive element | copper (Cu) |
| Case material | chrome plated carbon steel |
| Operating environment | -25~55℃, relative humidity≤85% |
| Temperature effect | ≤0.4%/10℃ |
YE-100 ZT Capsule Pressure Gauge Specification:
| Outer diameter | 65MM |
| Testing pressure range | -100Kpa~0 to 0~100Kpa |
| Accuracy | Level 1.5；Level 2.5 |
| Sensitive element | 316L |
| Case material | stainless steel 304 |
| Operating environment | -25~55℃, relative humidity≤85% |
| Temperature effect | ≤0.4%/10℃ |
