US Type Clevis Grab Hooks H330
Clevis Grab Hooks H330
Drop Forged Clevis Grab Hooks H330
Galv Clevis Grab Hooks H330
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Hook

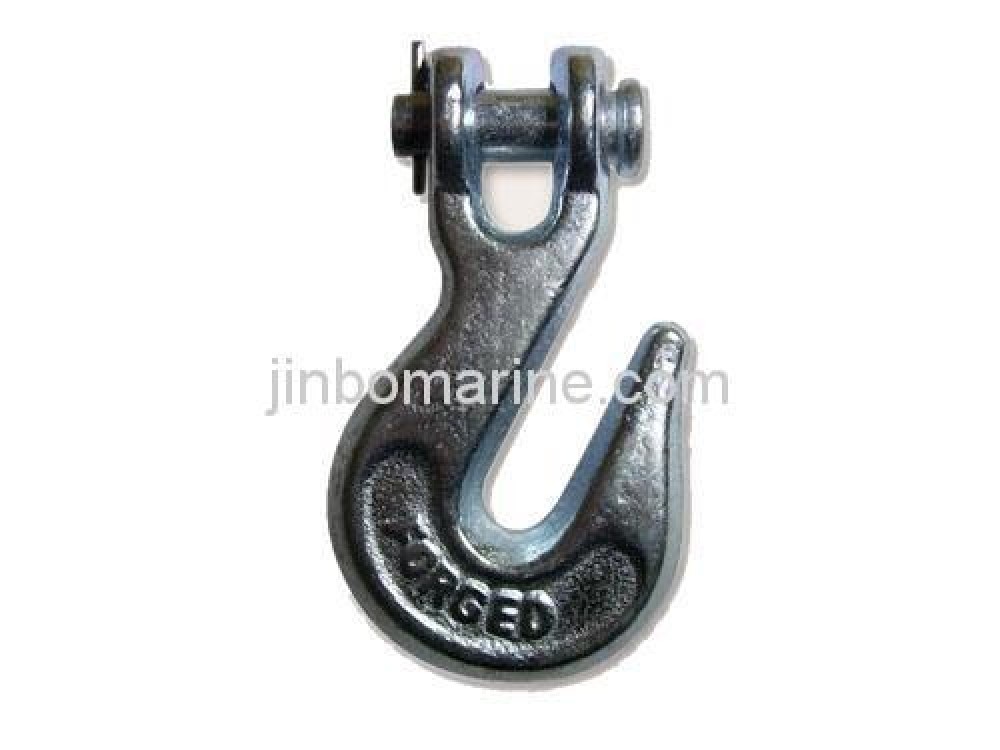

Clevis Grab Hooks H330
Similar Name US Type Clevis Grab Hooks H330 Clevis Grab Hooks H330 Drop Forged Clevis Grab Hooks H330 Galv Clevis Grab Hooks H330 Main Specification Compromise of Body an...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Hook
Standard
EN
Material
45# Steel
Weight / Size
Similar Name US Type Clevis Grab Hooks H330 Clevis Grab Hooks H330 Drop ...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Hook
Model / SKU
Clevis-Grab-Hooks-H330
Standard
EN
Material
45# Steel
Weight / Size
Similar Name US Type Clevis Grab Hooks H330 Clevis Grab Hooks H330 Drop Forged Clevis Grab Hooks H330 Galv Clevis Grab Hooks H330 Main Specification Compromise of Body and Pin Forging Technology 45# Steel Size Table Size of Chain WLL(lbs) DIMENSIONS(in) Weight (lbs) H-330 A-330 B E P R 1/4" 2,600 3,600 7/16 11/32 3/8 1-13/16 0.38 5/16" 3,900 5,400 1/2 7/16 3/8 2-5/32 0.7 3/8" 5,400 7,500 19/32 1/2 7/16 2-15/32 1.04 7/16" 7,200 10,000 21/32 9/16 9/16 2-25/32 1.31 1/2" 9,200 12,750 3/4 5/8 5/8 3-7/32 2.06 5/8" 12,750 19,000 29/32 3/4 3/4 4-3/32 4.25 3/4" 18,500 27,000 15/16 15/16 7/8 4 5/8 6.5
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Similar Name
Main Specification
Compromise of Body and Pin
Forging Technology
45# Steel
Size Table
| Size of Chain | WLL(lbs) | DIMENSIONS(in) | Weight (lbs) | ||||
| H-330 | A-330 | B | E | P | R | ||
| 1/4" | 2,600 | 3,600 | 7/16 | 11/32 | 3/8 | 1-13/16 | 0.38 |
| 5/16" | 3,900 | 5,400 | 1/2 | 7/16 | 3/8 | 2-5/32 | 0.7 |
| 3/8" | 5,400 | 7,500 | 19/32 | 1/2 | 7/16 | 2-15/32 | 1.04 |
| 7/16" | 7,200 | 10,000 | 21/32 | 9/16 | 9/16 | 2-25/32 | 1.31 |
| 1/2" | 9,200 | 12,750 | 3/4 | 5/8 | 5/8 | 3-7/32 | 2.06 |
| 5/8" | 12,750 | 19,000 | 29/32 | 3/4 | 3/4 | 4-3/32 | 4.25 |
| 3/4" | 18,500 | 27,000 | 15/16 | 15/16 | 7/8 | 4 5/8 | 6.5 |
