Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

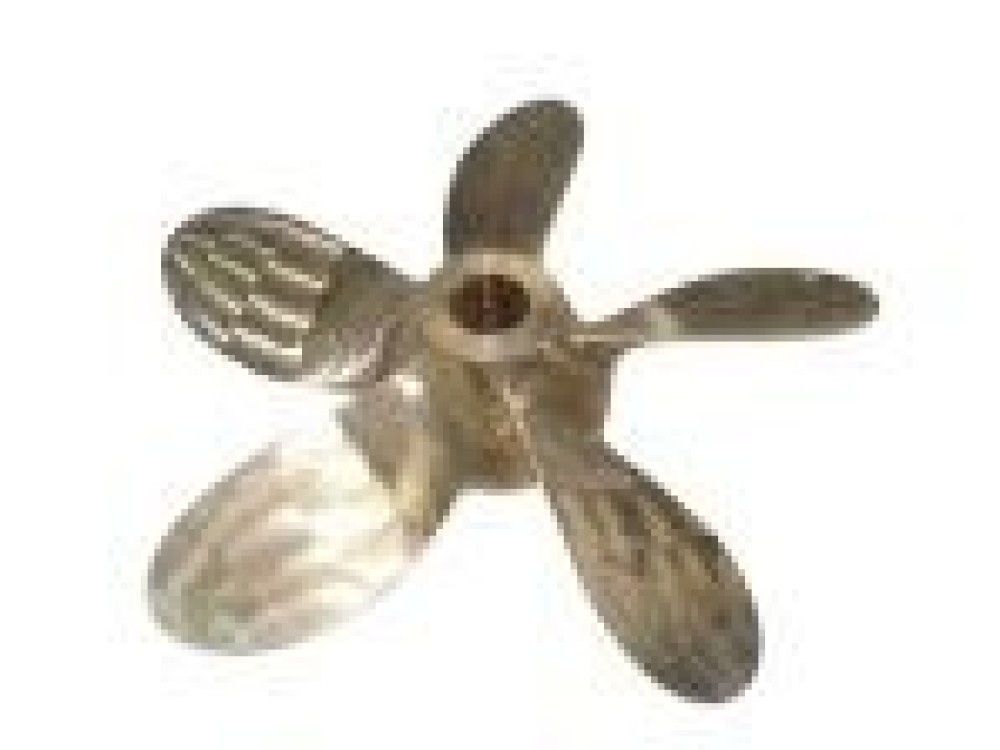

Marine Propeller

Controllable pitch propeller

Our products has been approved by ABS, BV, CCS, DNV, GL, KR, LR, NK and etc., and obtained the authentication certificate of Quality System We can design and supply various kinds of propellers for container ship...

ISO9001 Supplier Class Certificate Export Supply
Controllable pitch propeller

Key Highlights

Category
Marine Propeller
Standard
DIN
Material
Cu1, Cu2, Cu3, Cu4, etc.
Certificate
ABS , BV, DNV , LR , GL , CCS, RINA , mill certificate etc.
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Propeller
Model / SKU
Controllable-pitch-propeller
Standard
DIN
Material
Cu1, Cu2, Cu3, Cu4, etc.
Certificate
ABS , BV, DNV , LR , GL , CCS, RINA , mill certificate etc.
Warranty
12 Months unless specified otherwise
Origin
China

China Controllable pitch propeller:

Our products has been approved by ABS, BV, CCS, DNV, GL, KR, LR, NK and etc., and obtained the authentication certificate of Quality System

We can design and supply various kinds of propellers for container ships, tankers, tug boats, trawlers, fishing boats and yachts, etc.Please supply us your drawing or samples to let us help you manufacture the propeller you need.

features:

1.Good reliability

2.Simple structure

3.Convenient to operate and maintain

Related components for controllable pitch propeller includes: blade, propeller hub, propeller nut, nozzle, shaft seal & bearing, water lubrication system, torque measurement system, blocking device, shaft brake, and grounding device.

Specifications for Marine Propellers

Material: Cu1, Cu2, Cu3, Cu4, etc.

Diameter of propeller: ø1300mmto ø6700mm

Number of blade: 3, or 4

Diameter of hub: ø550mmto ø2085mm

Max. rotate speed: 200rmp to 550rmp

Transmission capacity: 2kW/rmp to 160.5kW/rmp

Thrust: 12.2T to 152T
