DJC-DS Trim-heel sensor was designed by DONJUN;
Used for new-building ship and operating ship;Quickly and accurately output the communication data of vertical and horizontal tilt angle;
Work with DJC-QD/DJC-QS electrical inclinometer.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Marine Conservation

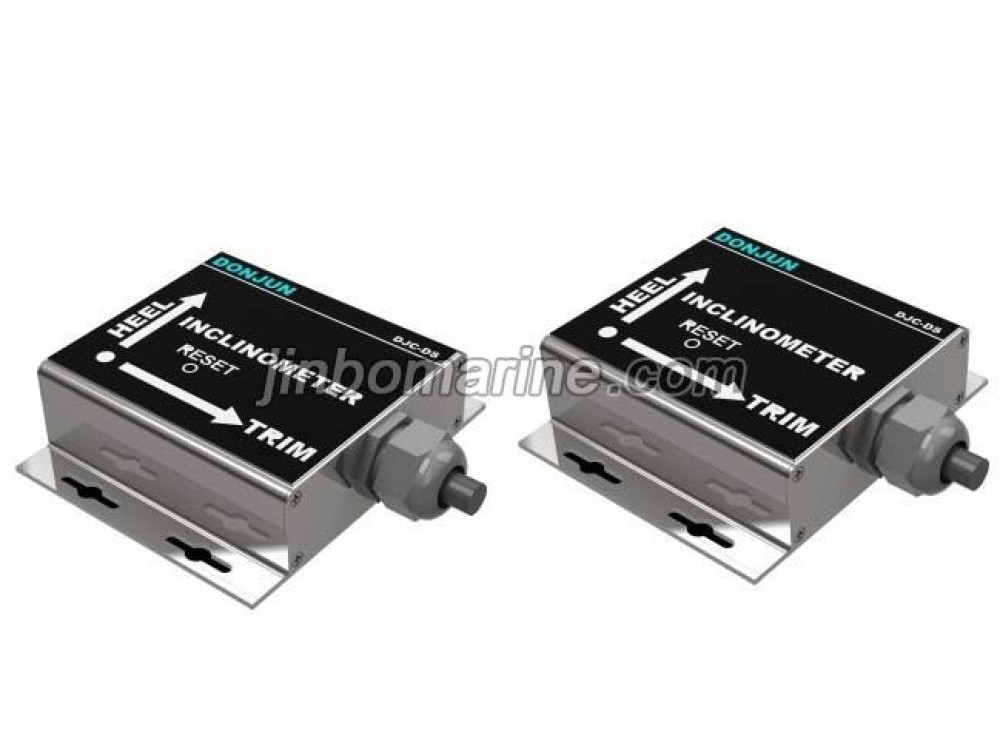

DJC-DS Trim-heel Sensor
Description DJC-DS Trim-heel sensor was designed by DONJUN; Used for new-building ship and operating ship; Quickly and accurately output the communication data of vertical and horizontal tilt angle; Work with ...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Marine Conservation
Standard
DIN
Material
Casing material(Body):
Weight / Size
Size:L50mm*W52mm*H28mm 9.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Marine Conservation
Model / SKU
DJC-DS-Trim-heel-Sensor
Standard
DIN
Material
Casing material(Body):
Weight / Size
Size:L50mm*W52mm*H28mm 9.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Description
Quickly and accurately output the communication data of vertical and horizontal tilt angle;
Work with DJC-QD/DJC-QS electrical inclinometer.
Technical data
1. Type:DJC-DS
2. Power:DC24V
3. Current:15mA
4. Precision:±1%
5. Communication mode:RS485
6. Response time:≤0.5ms
7. Output angle value range:0-90°
8. Size:L50mm*W52mm*H28mm
9. Ambient temperature range:-25℃ ～ + 55 ℃
10. Degrees of protection(Casing):IP68
11. Casing material(Body): ABS（or choice）
12. Weight:210g
2. Power:DC24V
3. Current:15mA
4. Precision:±1%
5. Communication mode:RS485
6. Response time:≤0.5ms
7. Output angle value range:0-90°
8. Size:L50mm*W52mm*H28mm
9. Ambient temperature range:-25℃ ～ + 55 ℃
10. Degrees of protection(Casing):IP68
11. Casing material(Body): ABS（or choice）
12. Weight:210g
