Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Reciprocating Pump

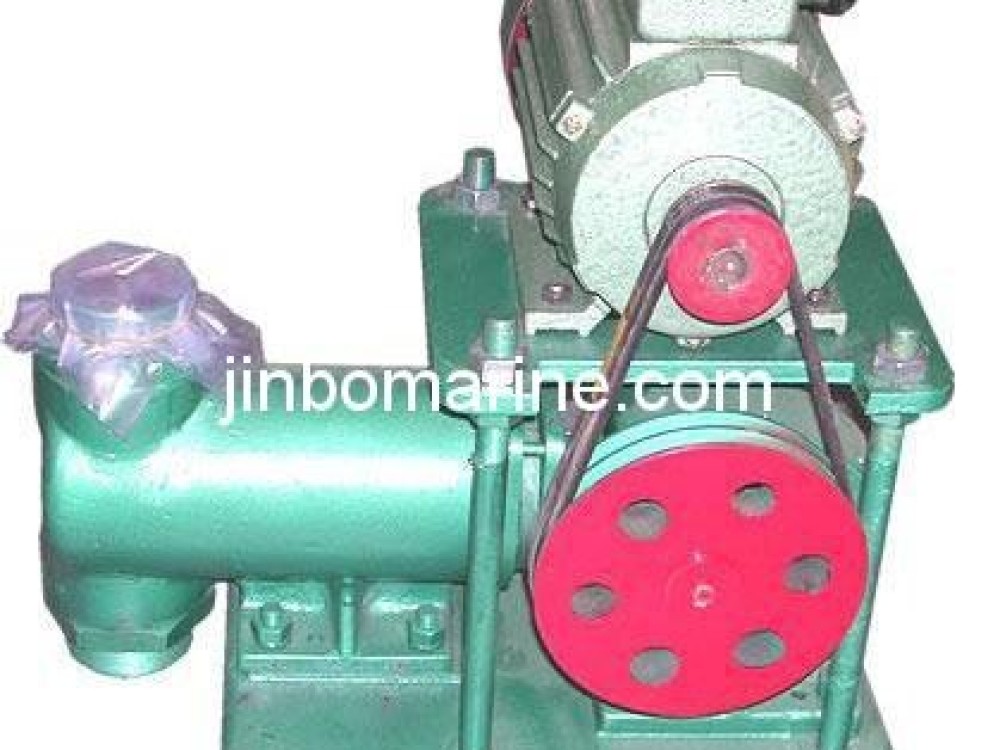

DZ Series Marine Electic Piston Pump

DZ series Marine Electric piston Pump General description DZ series marine electric piston pump without the transmission medium can be hard particles or fibers; the temperature is not higher than 85c water,...

ISO9001 Supplier Class Certificate Export Supply
DZ Series Marine Electic Piston Pump

Key Highlights

Category
Reciprocating Pump
Standard
EN
Material
cast iron
Weight / Size
Suc Dia Power Speed Weight Mpa m m3/h 1/min mm mm mm kw rpm kg DZ-100 0....
Certificate
CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Reciprocating Pump
Model / SKU
DZ-Series-Marine-Electic-Piston-Pump
Standard
EN
Material
cast iron
Weight / Size
Suc Dia Power Speed Weight Mpa m m3/h 1/min mm mm mm kw rpm kg DZ-100 0.19 4 0.1 66 28 38 15 0.18 1400 15 DZ-250 0.29 5 0.25 56 42 50 23 0.25 1400 27 DZ-500 0.29 5 0.5 50 64 60 23 0.37 1400 27 DZ-1000 0.29 5 1 50 64 85 50 0.55 1400 37 DZ-2000 0.29 6 2 68 80 90 50 0.75 1400 47 DZ-3000 0.29 6 3 70 90 105 50 1.1 1400 120 DZ-4000 0.29 6 4 68 120 115 60 1.5 1400 140 DZ-5000 0.29 6 5 68 120 115 60 2.2 1420 140 DZ-104 0.29 6 10 68 120 118 80 3 1420 230
Certificate
CCS
Warranty
12 Months unless specified otherwise
Origin
China

DZ series Marine Electric piston Pump

General description

DZ series marine electric piston pump without the transmission medium can be hard particles or fibers; the temperature is not higher than 85c water,fresh water,oil,drainage.

Structural Specifications

Performance Parameter

Type Discharge pressure Suction head Capacity Reciprocating number Travel Jar Dia. Suc Dia Power Speed Weight
Mpa m m3/h 1/min mm mm mm kw rpm kg
DZ-100 0.19 4 0.1 66 28 38 15 0.18 1400 15
DZ-250 0.29 5 0.25 56 42 50 23 0.25 1400 27
DZ-500 0.29 5 0.5 50 64 60 23 0.37 1400 27
DZ-1000 0.29 5 1 50 64 85 50 0.55 1400 37
DZ-2000 0.29 6 2 68 80 90 50 0.75 1400 47
DZ-3000 0.29 6 3 70 90 105 50 1.1 1400 120
DZ-4000 0.29 6 4 68 120 115 60 1.5 1400 140
DZ-5000 0.29 6 5 68 120 115 60 2.2 1420 140
DZ-104 0.29 6 10 68 120 118 80 3 1420 230
