Description:

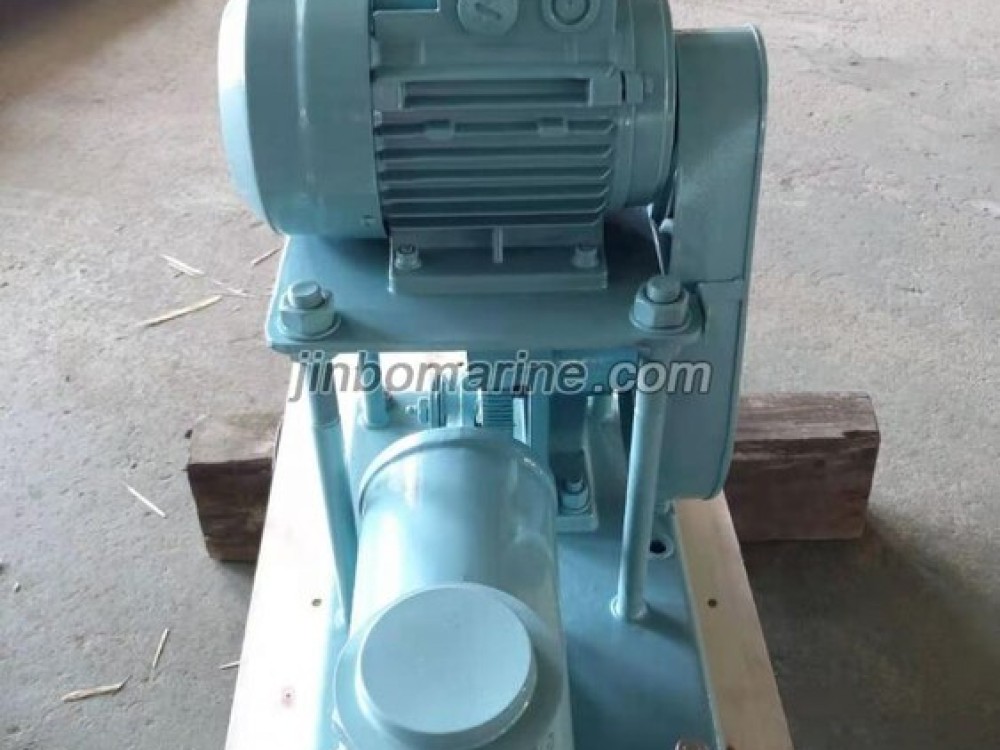

DZG series pumps are horizontal single cylinder electric plunger pump, which can be used to suck out such liquid as oily water, bilge, fresh water, sea water, etc, without hard particle or fiber impurities and below 85℃.
DZG series pumps are the products updated by DZ series pumps that designed and manufacturing JINBO MARINE. The desiging and making of this product is up to standad of CB/T3160-92 marine electric plunger oily water delivery pump. Marine products are entirely recognized by CCS.
DZG series pumps are essecially fit for complement use of oily water processing plant, reducing oil-water emulsifiability. increasing separation effect. It features in working safely. convenient operation, easy maintenance, delicate manufacturing, good durability and economic results. Have small volume, low noise characteristics.
| Type | Flowrale m3/h | Discharge Pressure MPa | Suction Vacuity Time mH2O | Reciporcating Pipe diameter /mm | Intake and Discharge Pipe Diameter mm | Pump Power Kw | Dimension LxMxH(mm) |
| DZ-250(G) | 0.25 | 0.6 | 6 | 56 | 25 | 0.25 | 310x230x340 |
| DZ-500(G) | 0.5 | 0.6 | 6 | 50 | 25 | 0.37 | 370x255x370 |
| DZ-1000(G) | 1 | 0.6 | 6 | 52 | 40 | 0.55 | 390x268x390 |
| DZ-2000(G) | 2 | 0.6 | 6 | 70 | 40 | 1.1 | 452x300x442 |
| DZ-3000(G) | 3 | 0.6 | 6 | 78 | 50 | 1.5 | 609x356x515 |
| DZ-5000(G) | 5 | 0.6 | 6 | 78 | 60 | 2.2 | 718x395x535 |
