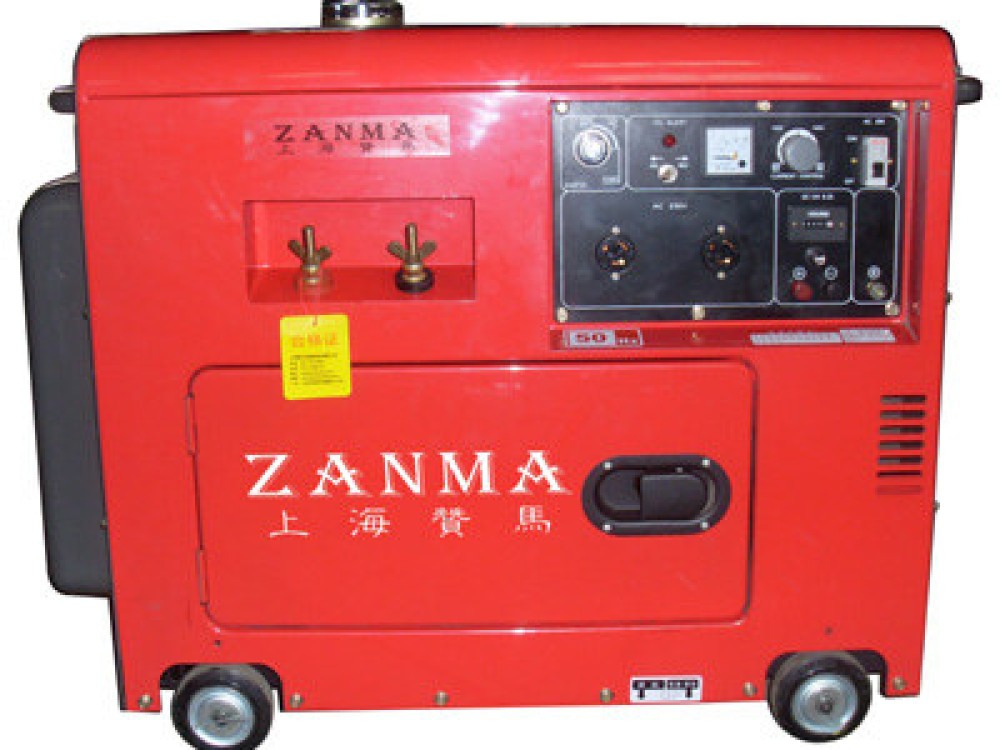

| Diesel welding generator | ||||
| Generator | Model | 6GF-LHW | 6GF-LEW | 6GF-LDEW |
| Rated output power(KW) | 3.64 | 3.64 | 3.64 | |
| Rated output current(A) | 140 | 140 | 140 | |
| Current adjustment(A) | 50-190 | 50-190 | 50-190 | |
| Rated voltage(V) | 26 | 26 | 26 | |
| Load rate | 50% | 50% | 50% | |
| Welding rod | ∮2.5-4.0mm | ∮2.5-4.0mm | ∮2.5-4.0mm | |
| Rated power(KW) | 4.5 | 4.5 | 4.5 | |
| Max.power(KW) | 5 | 5 | 5 | |
| Rated frequency(Hz) | 50/60 | 50/60 | 50/60 | |
| 1-Phase AC voltage | 110/220 | 110/220 | 110/220 | |
| DC output | 12V/8.3A | 12V/8.3A | 12V/8.3A | |
| Power factor(cos∮) | 1 | 1 | 1 | |
| Rated rotation speed(rpm) | 3000/3600 | 3000/3600 | 3000/3600 | |
| Noise level | 78 | 78 | 78 | |
| Fuel tank capacity(L) | 10.2 | 10.2 | 15.2 | |
| Structure type | Open Frame type | Silent type | ||
| Engine | Engine Model | 186FA | ||
| Type | 4-Stroke diesel engine | |||
| Displacement(ml) | 418 | 418 | 418 | |
| Max.output power(hp)/Speed(Rpm) | 12/3600 | 12/3600 | 12/3600 | |
| Oil capacity(L) | 1.7 | 1.7 | 1.7 | |
| starting method | Recoil start | Electric start | ||
| Options | 3-Phase Ac voltage | Available | Available | Available |
| 4-wheel vehicle set | Available | Available | Available | |
| 2-Wheel and handle | Available | Available | Available | |
| Pack | Packing size(mm) | 740x500x650 | 740x500x650 | 960x570x760 |
| Net weight(Kgs) | 100 | 100 | 157 | |
| Gross weight(Kgs) | 105 | 105 | 168 | |
| 20FT Qty | 96 | 96 | 72 | |
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Marine Generator
Diesel welding generator
Diesel welding generator Parameter Diesel welding generator Generator Model 6GF-LHW 6GF-LEW ...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Marine Generator
Standard
DIN
Weight / Size
Diesel welding generator Parameter Diesel welding generator Generator Mo...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Marine Generator
Model / SKU
Diesel-welding-generator
Standard
DIN
Weight / Size
Diesel welding generator Parameter Diesel welding generator Generator Model 6GF-LHW 6GF-LEW 6GF-LDEW Rated output power(KW) 3.64 3.64 3.64 Rated output current(A) 140 140 140 Current adjustment(A) 50-190 50-190 50-190 Rated voltage(V) 26 26 26 Load rate 50% 50% 50% Welding rod ∮2.5-4.0mm ∮2.5-4.0mm ∮2.5-4.0mm Rated power(KW) 4.5 4.5 4.5 Max.power(KW) 5 5 5 Rated frequency(Hz) 50/60 50/60 50/60 1-Phase AC voltage 110/220 110/220 110/220 DC output 12V/8.3A 12V/8.3A 12V/8.3A Power factor(cos∮) 1 1 1 Rated rotation speed(rpm) 3000/3600 3000/3600 3000/3600 Noise level 78 78 78 Fuel tank capacity(L) 10.2 10.2 15.2 Structure type Open Frame type Silent type Engine Engine Model 186FA Type 4-Stroke diesel engine Displacement(ml) 418 418 418 Max.output power(hp)/Speed(Rpm) 12/3600 12/3600 12/3600 Oil capacity(L) 1.7 1.7 1.7 starting method Recoil start Electric start Options 3-Phase Ac voltage Available Available Available 4-wheel vehicle set Available Available Available 2-Wheel and handle Available Available Available Pack Packing size(mm) 740x500x650 740x500x650 960x570x760 Net weight(Kgs) 100 100 157 Gross weight(Kgs) 105 105 168 20FT Qty 96 96 72
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
