Simultaneously measureing three phase current or voltage.
Simultaneously measuring current, voltage,frequency
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Marine Electrical Instrument

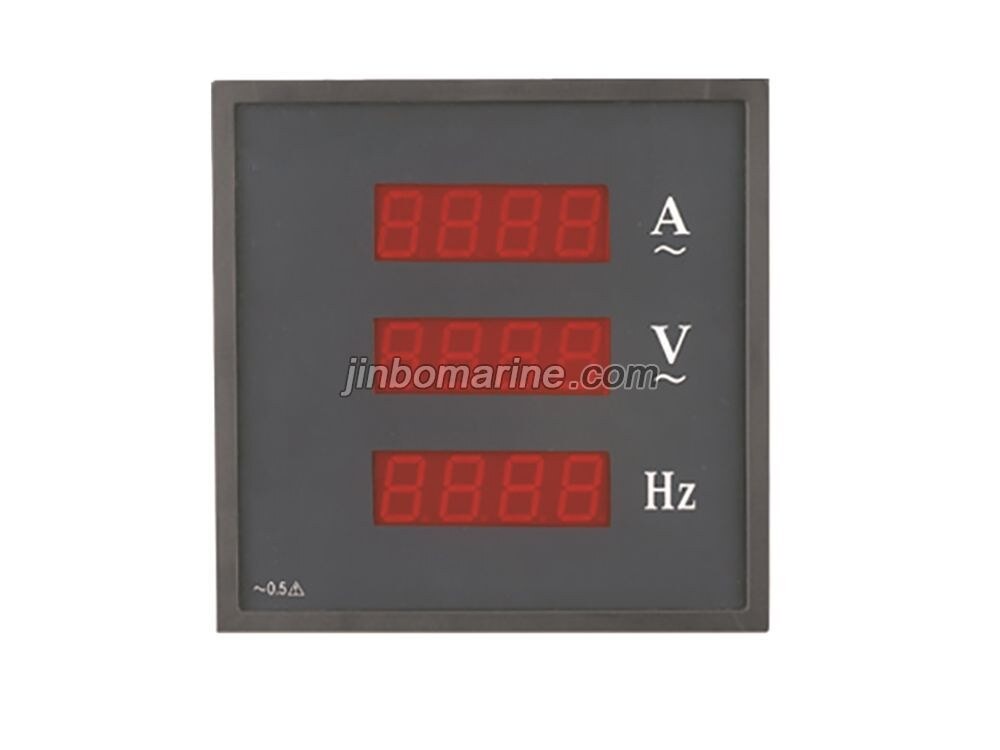

Digital Three-row Combination Display Meter
Product description: Simultaneously measureing three phase current or voltage. Simultaneously measuring current, voltage,frequency Chart: Product description ...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Marine Electrical Instrument
Standard
EN
Weight / Size
Product description Type Measurement range Auxiliary power Accuracy Dime...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Marine Electrical Instrument
Model / SKU
Digital-Three-row-Combination-Display-Meter
Standard
EN
Weight / Size
Product description Type Measurement range Auxiliary power Accuracy Dimension(mm) Display digits Digital Three-row Combination Display Ammeter D120-3I AC 0...100mA -0…10A DC 0…1mA -0…10A AC110V ±10% AC220V ±10% DC24V 0.5 120(H)x120(W)x75(D) Cut-out size 113(H)X113(D) 3 1/2 Digital Three-row Combination Display Voltmeter D120-3U AC 0...10V-0…500V DC 0…50mV -0…500V 0.5 3 1/2 Digital Three-row Combination Display Current,Voltage,Frequency D120-I,U,F AC 0...10V-0…500V DC 0…50mV -0…500V 0…1HZ-0…9999HZ A,V:0.5 F:0.1 3 1/2
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Product description:
Chart:
| Product description | Type | Measurement range | Auxiliary power | Accuracy | Dimension(mm) | Display digits |
| Digital Three-row Combination Display Ammeter | D120-3I | AC 0...100mA -0…10A DC 0…1mA -0…10A | AC110V ±10% AC220V ±10% DC24V | 0.5 | 120(H)x120(W)x75(D) Cut-out size 113(H)X113(D) | 3 1/2 |
| Digital Three-row Combination Display Voltmeter | D120-3U | AC 0...10V-0…500V DC 0…50mV -0…500V | 0.5 | 3 1/2 | ||
| Digital Three-row Combination Display Current,Voltage,Frequency | D120-I,U,F | AC 0...10V-0…500V DC 0…50mV -0…500V 0…1HZ-0…9999HZ | A,V:0.5 F:0.1 | 3 1/2 |
