Dredging Rubber Hose

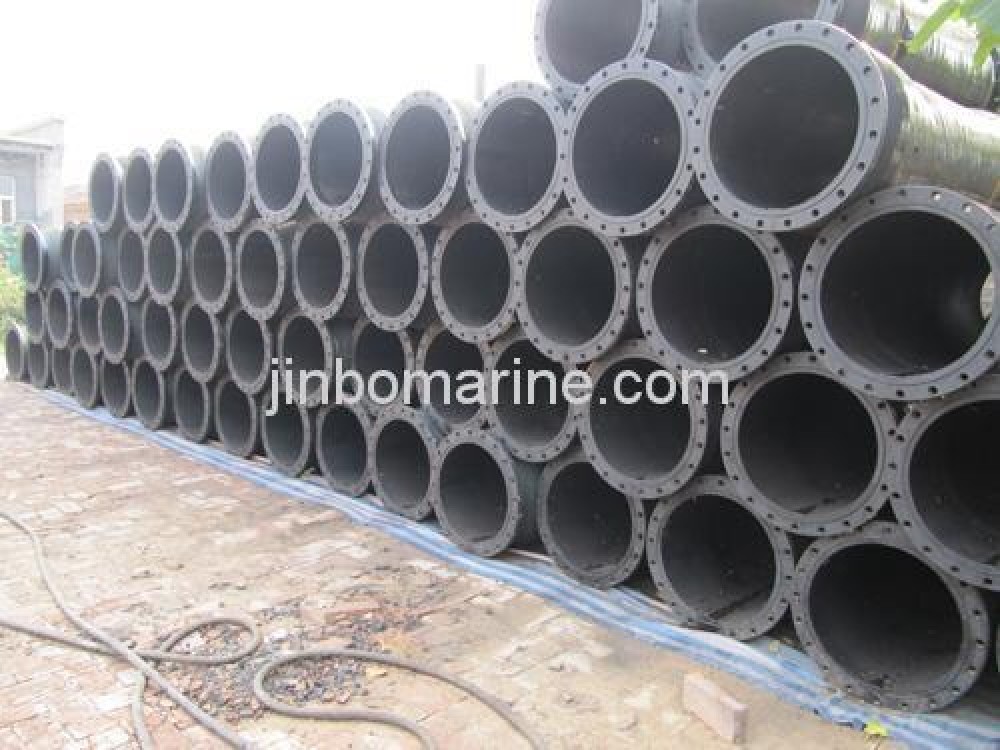

Dredge Discharge Hose

Steel Flange Discharge Hose are used with dredger for silt, gravel conceyance. Thickness of pipe wall is from 18mm to 70mm. Working Temperature is from -20Degree to 50Degree. Easy Install, Flexi...

ISO9001 Supplier Class Certificate Export Supply

Key HighlightsCategory
Dredging Rubber Hose
Standard
DIN
Material
NR, SBR, BR
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

China Dredge Discharge Hose:

Steel Flange Discharge Hose are used with dredger for silt, gravel conceyance. Thickness of pipe wall is from 18mm to 70mm.

Working Temperature is from -20Degree to 50Degree.
Easy Install, Flexible to use, Safe, Abrasion-resistance and bending resistant.
Safety Factor: 1:5
Hose Ling: NR, SBR, BR
Reinforcement Layer: Tire Cord with Wire Spiral
Cover Rubber Layer: SBR and CR Blend.

Specification

ID		OD		WP		BP		VP		Length
mm	inch	mm	inch	Mpa	bar	Mpa	bar	Kpa	bar	m
152	6"	182	7-1/4"	1.2	12	2.4	24	80	0.8	20
203	8"	233	9-1/5"	1.2	12	2.4	24	80	0.8	20
254	10"	284	11-1/5"	1	10	2	20	80	0.8	10
304	12"	340	13-2/5"	1	10	2	20	80	0.8	6-10
350	14"	390	15-2/5"	1	10	2	20	80	0.8	6-10
450	18"	486	19-1/5"	0.7	7	1.5	15	80	0.8	6-10
550	22"	590	23-3/5"	0.7	7	1.5	15	80	0.8	6-10
600	24"	640	25-3/5"	0.7	7	1.5	15	80	0.8	6-10
700	28"	750	29-3/5"	0.7	7	1.5	15	80	0.8	6-10
800	32"	850	33-1/2"	0.5	5	1	10	80	0.8	6-10
1000	40"	1050	41-1/2"	0.5	5	1	10	80	0.8	6
1200	48"	1250	49-1/5"	0.5	5	1	10	80	0.8	6
1300	52"	1350	53-1/5"	0.5	5	1	10	80	0.8	6
