The device is connected with double-acting actuator and used as a micron hydraulic power unit to remote control the open/close of valve (the distance is up to 30M).
Motor voltage: AC220V, 50Hz
Oil tank capacity: approx...
ISO9001 SupplierClass CertificateExport Supply
Key Highlights
Category
Valve Remote Control System
Standard
ISO
Certificate
ccs
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Valve Remote Control System
Model / SKU
EHP-D-013-Double-acting-Mini-Hydraulic-Pump-Unit
Standard
ISO
Certificate
ccs
Warranty
12 Months unless specified otherwise
Origin
China

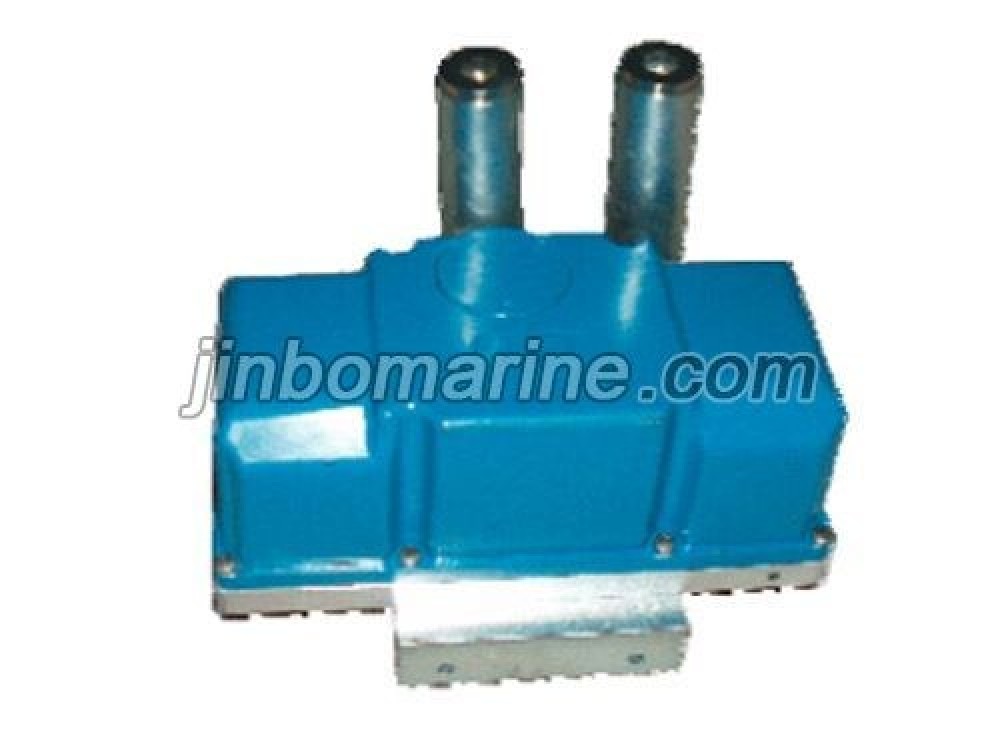

China EHP-D-013 Double-acting Mini Hydraulic Pump Unit:
The device is connected with double-acting actuator and used as a micron hydraulic power unit to remote control the open/close of valve (the distance is up to 30M). Motor voltage: AC220V, 50Hz Oil tank capacity: approx.300 cm3 Volume flow: 0.5L/min (2800rpm) Control voltage: 24VDC Ambient temp.: -15℃ to +60℃ Protection: IP68 Hydraulic oil: ISO VG15 Max. Pressure: 12MPa Working pressure: 5.5 to 12MPa
