Yacht Windlass & Winch

Electric Sailing Winch

Electric Sailing Winch Descripation: A self-Tailing sailing winch can works at the push of a button without any tools and also can either be fitted in the conventional manner, or without removing the drum, to...

ISO9001 Supplier Class Certificate Export Supply

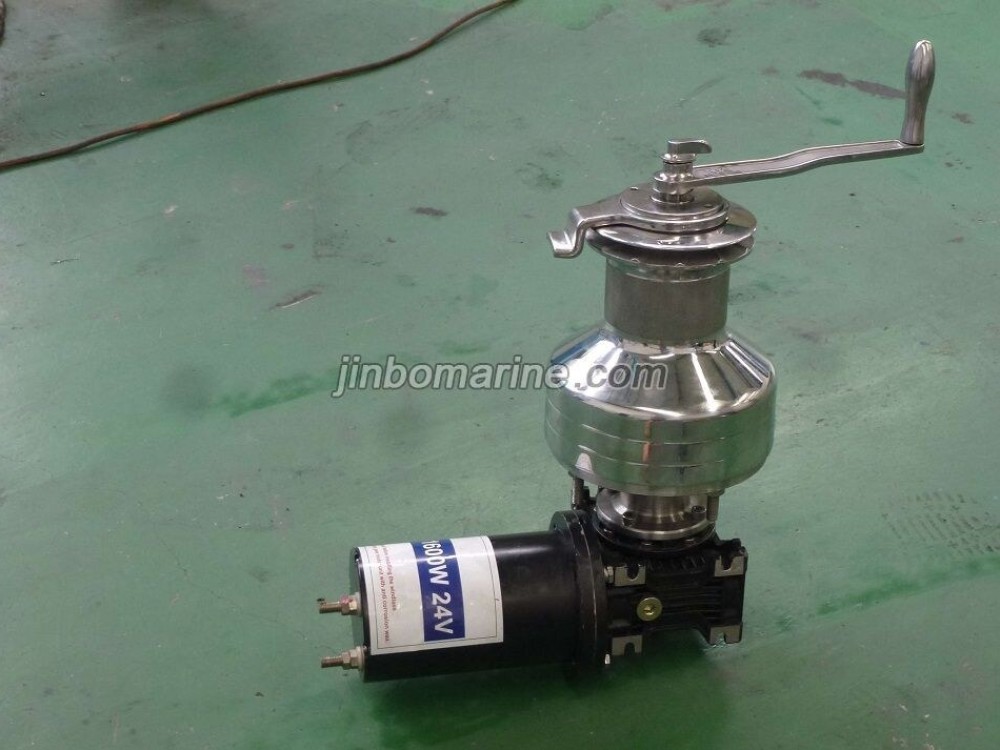

Electric Sailing Winch

Key Highlights

Category
Yacht Windlass & Winch
Standard
EN
Material
SS316
Weight / Size
Model Drum Dia Base Dia Line Entry Line size Motor YDEW-001 74mm 148mm 7...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Yacht Windlass & Winch
Model / SKU
Electric-Sailing-Winch
Standard
EN
Material
SS316
Weight / Size
Model Drum Dia Base Dia Line Entry Line size Motor YDEW-001 74mm 148mm 79mm 8-12mm 400w YDEW-002 87mm 168mm 84mm 8-14mm 600w YDEW-003 93mm 181mm 86mm 8-14mm 800w YDEW-004 105mm 205mm 115mm 8-16mm 1200w YDEW-005 118mm 231mm 122mm 8-18mm 1600w
Surface
High quality polished surface makes for a beautiful appearance The Whole winch is made by SS316 Have good performance in waterproof, rust-resistant Push button power Quiet operation Manual override Easy to install Included motor units, control box and accessories.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Contents
  1. Electric Sailing Winch
  2. Descripation:
  3. Feature:
  4. Parameter:

Electric Sailing Winch

Descripation:

A self-Tailing sailing winch can works at the push of a button without any tools and also can either be fitted in the conventional manner, or without removing the drum, to speed up installation.

Feature:

High quality polished surface makes for a beautiful appearance

The Whole winch is made by SS316

Have good performance in waterproof, rust-resistant

Push button power

Quiet operation

Manual override

Easy to install

Included motor units, control box and accessories.

Parameter:

Model Drum Dia Base Dia Line Entry Line size Motor
YDEW-001 74mm 148mm 79mm 8-12mm 400w
YDEW-002 87mm 168mm 84mm 8-14mm 600w
YDEW-003 93mm 181mm 86mm 8-14mm 800w
YDEW-004 105mm 205mm 115mm 8-16mm 1200w
YDEW-005 118mm 231mm 122mm 8-18mm 1600w
