Product Datasheet

Marine Windlass

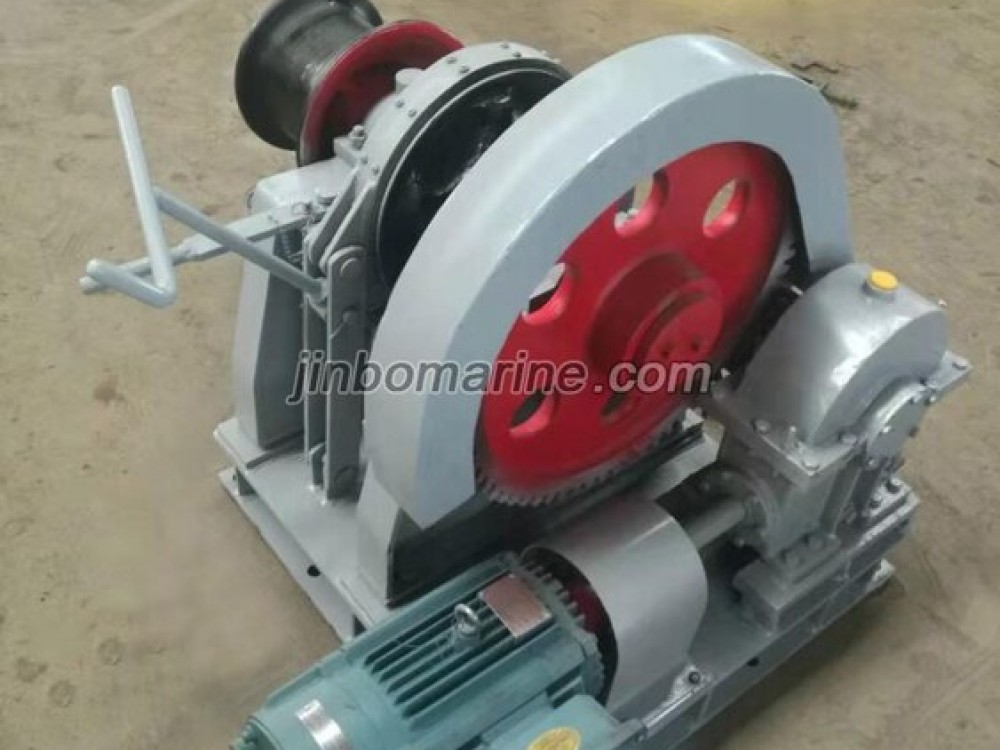

Electric Single Gypsy Windlass with Open Gear Box

Electric Single Gypsy Windlass: Speed:9~20m/min Anchor Chain Diameter: 12.5~114mm Driven Mode: Electric Motor (380V/440V/220V) Chain Diameter(mm) Rated Load(KN AM2) ...

ISO9001 Supplier Class Certificate Export Supply
Electric Single Gypsy Windlass with Open Gear Box

Key Highlights

Category
Marine Windlass
Standard
DIN
Material
Cast Steel
Certificate
CCS, BV, ABS, DNV/GL, LR, NK, IRS, RMRS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Windlass
Model / SKU
Electric-Single-Gypsy-Windlass-with-Open-Gear-Box
Standard
DIN
Material
Cast Steel
Certificate
CCS, BV, ABS, DNV/GL, LR, NK, IRS, RMRS
Warranty
12 Months unless specified otherwise
Origin
China

Electric Single Gypsy Windlass:

Speed:9~20m/min

Anchor Chain Diameter: 12.5~114mm

Driven Mode: Electric Motor (380V/440V/220V)

Chain Diameter(mm) Rated Load(KN AM2) Overload (KN AM2) Holding Load(KN AM2) Power (KW)
12.5 6.6 9.9 41.4 2.4/1.5
14 8.3 12.5 52.2 3.3/2.2
16 10.9 16.4 67.5 3.3/2.2
17.5 13 19.5 80.5 4.3/1.7
19 15.3 23 94.9 6/2.5
20.5 17.9 26.9 109.8 6/2.5
22 20.6 30.9 126 6/2.5
24 24.5 36.8 145 8.5/3.5
26 28.7 43 175 8.5/3.5
28 33.3 49.9 202 11/11/7.5
30 38.3 57.5 231 11/11/7.5
32 43.5 65.3 262 12/3.5
34 49.1 73.6 295 16/16/11
36 55.1 82.6 329 18/5
38 61.3 91.9 365 22/22/16
40 68 102 403 22/22/16
42 74.5 111.7 442 22/22/16
44 82.3 123.5 486 30/30/22
46 89.9 134.9 527 30/30/22
