Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Sensor

Electro-Hydraulic Valve Remote Control Valve

Product Description: Electro-hydraulic valve remote control device consists of control sonsole,electro-hydraulic actuator,butteryfly valve and manual hydraulic emergent pump station. The device has advantage of hyd...

ISO9001 Supplier Class Certificate Export Supply

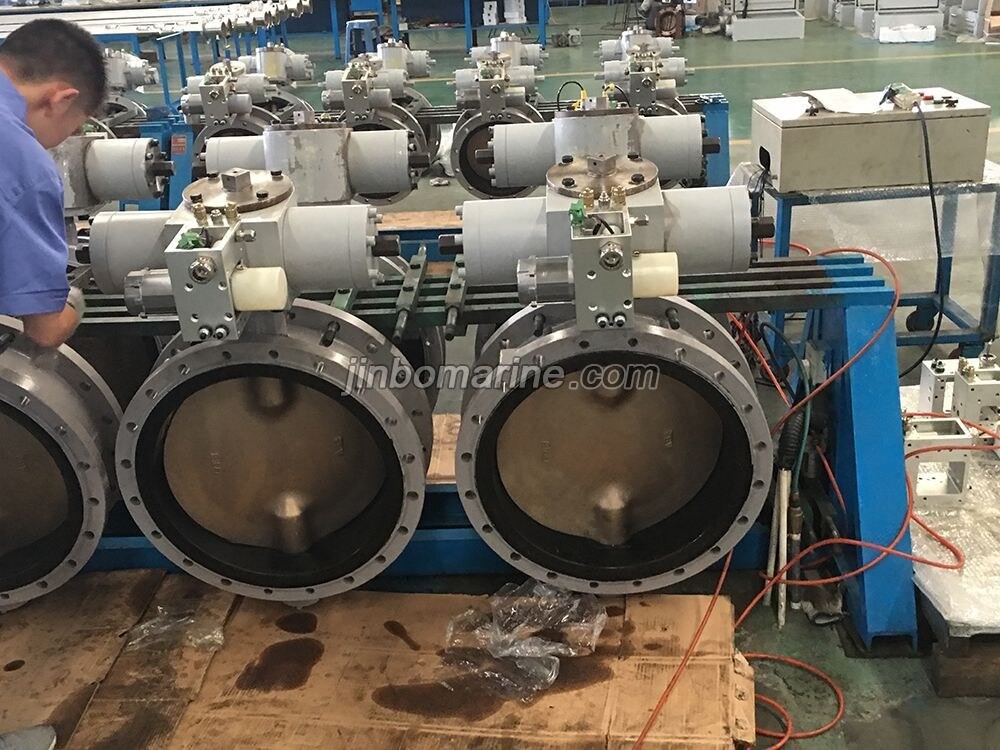

Electro-Hydraulic Valve Remote Control Valve

Key Highlights

Category
Sensor
Standard
EN
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Sensor
Model / SKU
Electro-Hydraulic-Valve-Remote-Control-Valve
Standard
EN
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

Product Description:

Electro-hydraulic valve remote control device consists of control sonsole,electro-hydraulic actuator,butteryfly valve and manual hydraulic emergent pump station. The device has advantage of hydraulic and electric remote control device, it has characteristics of compact structure,steady act,low comsumption,low noise, and easy maintenance etc. It is used for remote control piping valve's start and stop of all kinds of ships, such as oil tankers,chemical vessel,petroleum flat and float dock etc.

Main technical specification:

Model:YFK-06DY

Power supply:AC220V 50HZ or 60HZ

Working temperature: -10 to 55 ℃

Relative humidity : ≤ 95%

Working pressure: 11Mpa

Protection:

IP22 (control console)

IP56 (Electro-hydraulic valve)
