The parameter of chain in the table is in accordance with JB/T8108.1-1999Grade(8)
The terminal uses the chain link with the shackle. Is advantageous for the customer to combine at will.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Chain Sling

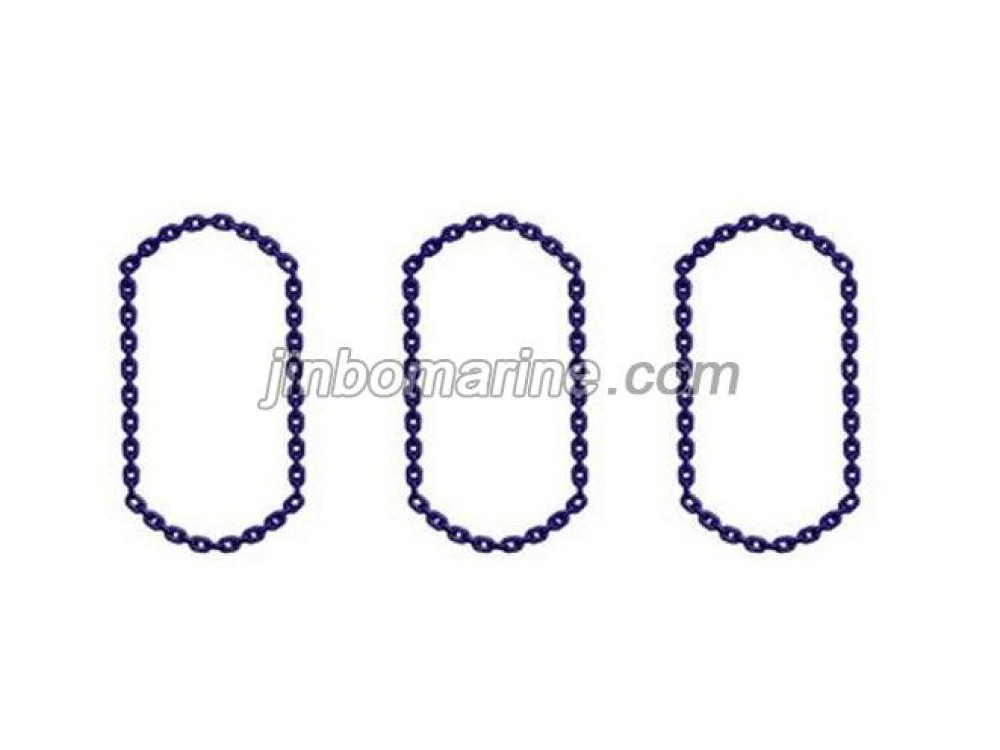

Endless Chain Sling
Description The parameter of chain in the table is in accordance with JB/T8108.1-1999Grade(8) The terminal uses the chain link with the shackle. Is advantageous for the customer to combine at will. Tech...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Chain Sling
Standard
EN
Material
High Quality Alloy Steel
Weight / Size
Technical Data Model Diamerter of the chain （mm) WLL(t) Weight/m （kg/m...
Certificate
CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Chain Sling
Model / SKU
Endless-Chain-Sling
Standard
EN
Material
High Quality Alloy Steel
Weight / Size
Technical Data Model Diamerter of the chain （mm) WLL(t) Weight/m （kg/m) YKHLS6 6 1.6 1.63 YKHLS8 8 2.4 2.85 YKHLS10 10 4 4.61 YKHLS12 12 5.6 6.54 YKHLS14 14 8 8.86 YKHLS16 16 9.6 12.09 YKHLS18 18 12.8 14.78 YKHLS20 20 16 18.64 YKHLS22 22 19.2 22.32 YKHLS24 24 22.4 28.11 YKHLS26 26 27.2 32.85 YKHLS30 30 35.2 42.88 YKHLS34 34 57.6 50.17
Certificate
CCS
Warranty
12 Months unless specified otherwise
Origin
China
Description
Technical Data
| Model | Diamerter of the chain （mm) | WLL(t) | Weight/m （kg/m) |
| YKHLS6 | 6 | 1.6 | 1.63 |
| YKHLS8 | 8 | 2.4 | 2.85 |
| YKHLS10 | 10 | 4 | 4.61 |
| YKHLS12 | 12 | 5.6 | 6.54 |
| YKHLS14 | 14 | 8 | 8.86 |
| YKHLS16 | 16 | 9.6 | 12.09 |
| YKHLS18 | 18 | 12.8 | 14.78 |
| YKHLS20 | 20 | 16 | 18.64 |
| YKHLS22 | 22 | 19.2 | 22.32 |
| YKHLS24 | 24 | 22.4 | 28.11 |
| YKHLS26 | 26 | 27.2 | 32.85 |
| YKHLS30 | 30 | 35.2 | 42.88 |
| YKHLS34 | 34 | 57.6 | 50.17 |
