Marine & Offshore Equipment Datasheet
Product Datasheet

Marine Fuel Homogenizer

Energy Saving Marine Fuel Homogenizer

Independent brand fuel homogenizer developed, with significant reduction in diesel oil, improving combustion and regeneration of waste oil and other effects, can well solve the diesel owners with high viscosity low qu...

ISO9001 Supplier Class Certificate Export Supply

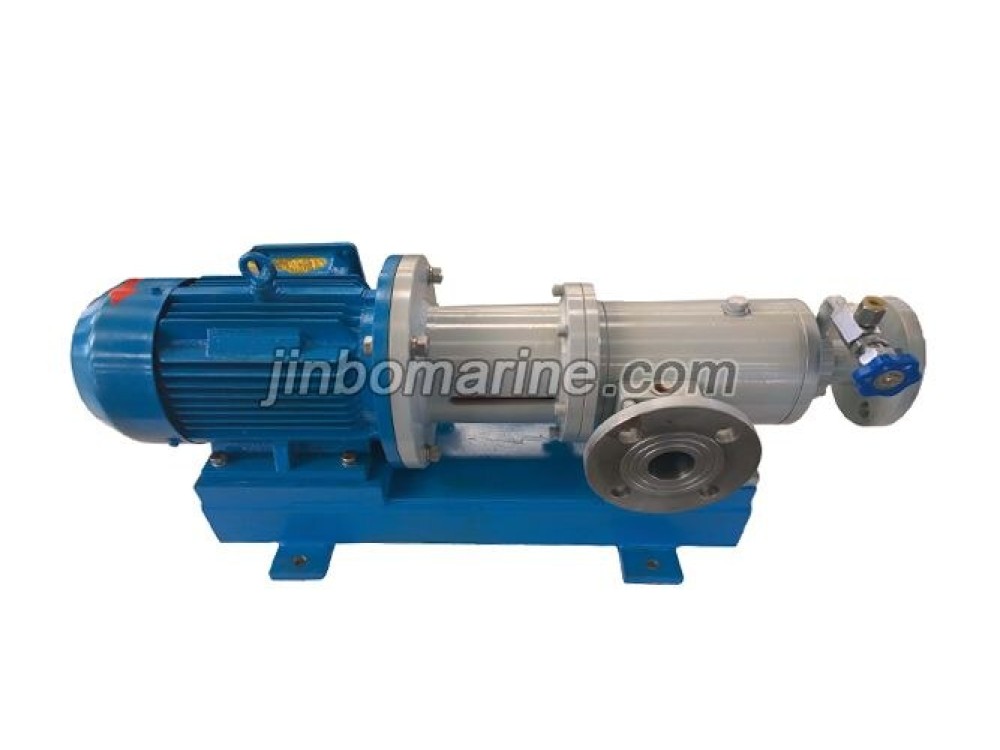

Energy Saving Marine Fuel Homogenizer

Key Highlights

Category
Marine Fuel Homogenizer
Standard
DIN
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Fuel Homogenizer
Model / SKU
Energy-Saving-Marine-Fuel-Homogenizer
Standard
DIN
Surface
High hardness of the tooth surface, to enhance the shear efficiency and reduce the shear tooth surface wear.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Contents
  1. China Energy Saving Marine Fuel Homogenizer:
  2. Advantage
  3. Energy Saving Marine Fuel Homogenizer Technical Specifications

China Energy Saving Marine Fuel Homogenizer:

Independent brand fuel homogenizer developed, with significant reduction in diesel oil, improving combustion and regeneration of waste oil and other effects, can well solve the diesel owners with high viscosity low quality fuel produced increased, equipment wear and other issues.

We can provide marine fuel homogenizer installation design, installation guidance, maintenance work, for the owners in energy saving, environmental protection, reduce shipping costs and other aspects of strong support.

Advantage

1. Improve the fault alarm system to ensure safe use.

2. The use of international brand motor drive, to ensure the normal use of harsh conditions.

3. Classification society authority certification, reliable quality.

4. Good cost control, more favorable price and service.

5. Adopt the current popular mainstream design scheme, that is stator rotor structure, and further optimize the design in the product.

6. More precise stator / rotor machining, high speed and severe dynamic balancing test, ultra smooth running, little noise. High hardness of the tooth surface, to enhance the shear efficiency and reduce the shear tooth surface wear.

7. The internal use of sliding bearings, fuel self-lubricating, long life.

8. Apply magnetic coupling, completely avoid the risk of oil leakage, and automatically protect the motor overload.

Energy Saving Marine Fuel Homogenizer Technical Specifications

Type FH03030 FH03055 FH10075 FH10110 FH20150 FH20220
Capacity,m3/h 1~3 3~5 5~10 10~15 15~20 >20
Power,Kw 3.0 5.5 7.5 11.0 15.0 22.0
Voltage,V/Hz 400/50,440/60
Pressure,Mpa <1.6
Max.temp.℃ 150
