Back to product Download PDF
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Marine Explosion-proof Lights Series

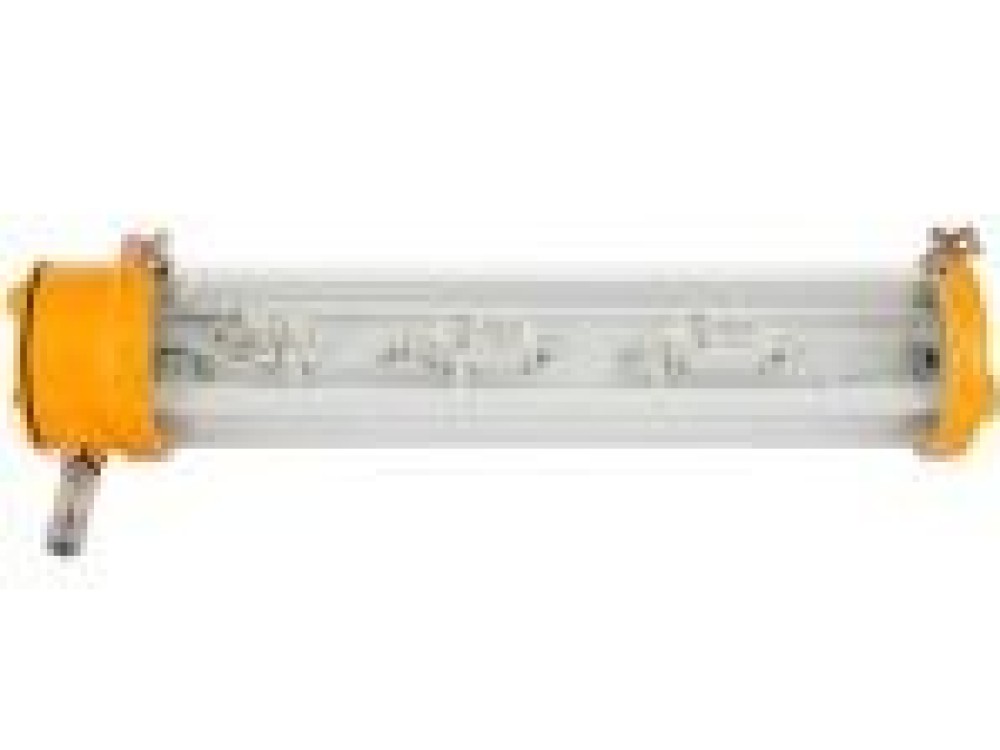

Explosion-proof Fluoresent Light CFY20 CFY30 CFY40

Used to cabin illumination in the hazardous area such as chemical factory, oil refinery, oil and gas plant with expolive gas environment.

ISO9001 Supplier Class Certificate Export Supply
Explosion-proof Fluoresent Light CFY20 CFY30 CFY40

Key Highlights

Category
Marine Explosion-proof Lights Series
Standard
EN
Material
Stainless Steel
Weight / Size
Type CFY20-2 CFY20-1 CFY30-2 CFY30-1 CFY40-2 CFY40-1 Explosion-proof Mar...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Explosion-proof Lights Series
Model / SKU
Explosion-proof-Fluoresent-Light-CFY20-CFY30-CFY40
Standard
EN
Material
Stainless Steel
Weight / Size
Type CFY20-2 CFY20-1 CFY30-2 CFY30-1 CFY40-2 CFY40-1 Explosion-proof Mark Exd II C T6 Voltage 220V/50Hz, 220V/60Hz, 110V/60Hz Power 2x20W 1x20W 2x30W 1x30W 2x40W 1x40W Lamp Holder G13 Protection Class IP56 IP56 IP56 IP56 IP56 IP56 Cable Diameter Dia13-14mm Weight 11.5kg 11.5kg 13.5kg 13.5kg 15kg 15kg
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

China Explosion-proof Fluoresent Light CFY20 CFY30 CFY40:

Used to cabin illumination in the hazardous area such as chemical factory, oil refinery, oil and gas plant with expolive gas environment.

Main Specification:

Type CFY20-2 CFY20-1 CFY30-2 CFY30-1 CFY40-2 CFY40-1
Explosion-proof Mark Exd II C T6
Voltage 220V/50Hz, 220V/60Hz, 110V/60Hz
Power 2x20W 1x20W 2x30W 1x30W 2x40W 1x40W
Lamp Holder G13
Protection Class IP56 IP56 IP56 IP56 IP56 IP56
Cable Diameter Dia13-14mm
Weight 11.5kg 11.5kg 13.5kg 13.5kg 15kg 15kg
