Marine & Offshore Equipment Datasheet
Product Datasheet

Marine Explosion-proof Lights Series

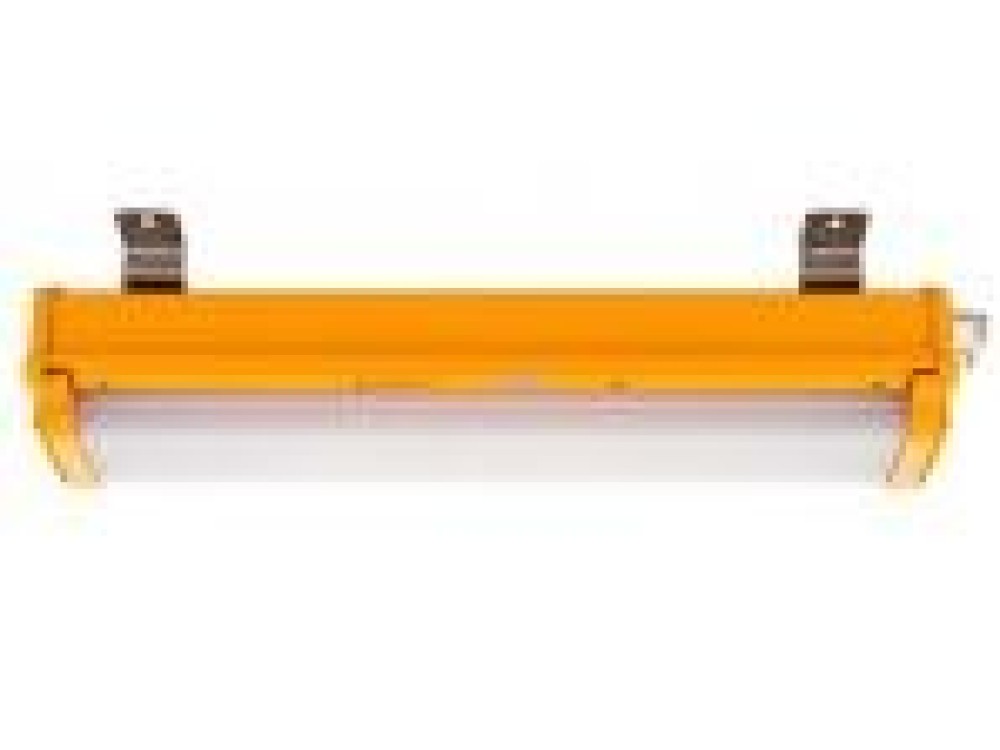

Explosion-proof Fluoresent Pendant Light CFY22-2 CFY42-2

Used to cabin illumination in the hazardous area such as chemical factory, oil refinery, oil and gas plant with expolive gas environment.

ISO9001 Supplier Class Certificate Export Supply
Explosion-proof Fluoresent Pendant Light CFY22-2 CFY42-2

Key Highlights

Category
Marine Explosion-proof Lights Series
Standard
EN
Material
Aluminum Alloy
Weight / Size
Type CFY22-2 CFY42-2 Explosion-proof Mark Exd II C T5 Exd II C T5 Voltag...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Explosion-proof Lights Series
Model / SKU
Explosion-proof-Fluoresent-Pendant-Light-CFY22-2-CFY42-2
Standard
EN
Material
Aluminum Alloy
Weight / Size
Type CFY22-2 CFY42-2 Explosion-proof Mark Exd II C T5 Exd II C T5 Voltage 220V/50Hz,220V/60Hz,110V/60Hz Power 2x20W 2X40W Lamp Holder G13 Protection Class IP54 IP56 Cable Diameter Dia10-12.5mm Weight 6.8kg 14.8kg
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

China Explosion-proof Fluoresent Pendant Light CFY22-2 CFY42-2:

Used to cabin illumination in the hazardous area such as chemical factory, oil refinery, oil and gas plant with expolive gas environment.

Main Specification:

Type CFY22-2 CFY42-2
Explosion-proof Mark Exd II C T5 Exd II C T5
Voltage 220V/50Hz,220V/60Hz,110V/60Hz
Power 2x20W 2X40W
Lamp Holder G13
Protection Class IP54 IP56
Cable Diameter Dia10-12.5mm
Weight 6.8kg 14.8kg
